Summary of Contents for Equipex SODIR 350-FE

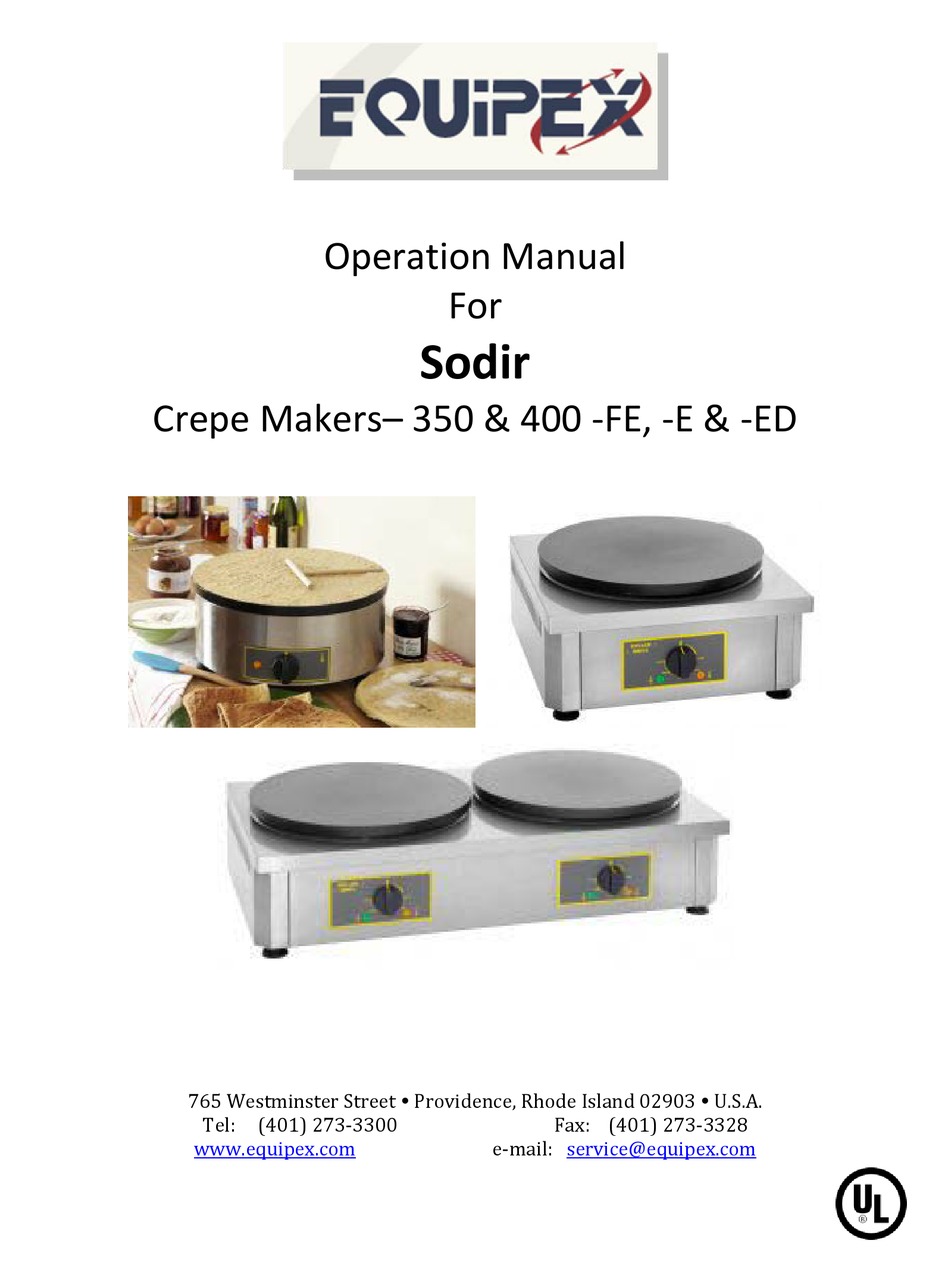

- Page 1 Operation Manual Sodir Crepe Makers– 350 & 400 -FE, -E & -ED 765 Westminster Street Providence, Rhode Island 02903 U.S.A. Tel: (401) 273-3300 Fax: (401) 273-3328 www.equipex.com e-mail: service@equipex.com...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all the instructions before use. 2. Do not touch hot surfaces; use handles or knobs. 3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid. 4. -
Page 3: Installation
The –FE models have one orange indicator light. All models come with one T-shaped wooden batter spreader per plate. Specifications: Model Electrical Plug Configuration 350-FE 120V, 1PH, 1.65KW, 14A NEMA-5-15P 400-FE 208/240V, 1PH, 3.5KW. 13/15A NEMA-6-20P 350-E 208/240V, 1PH, 3.3KW. 12/14A... -
Page 4: Operation
ASSEMBLY The SODIR crepe machine comes from the factory completely assembled. It is shipped with plastic exterior protective film, which must be removed before operation. DO NOT operate the machine prior to removing the protective film completely! OPERATION Initial Set-up We recommend you clean the surface of your crepe maker with a soft rag moistened with a solution of soap and water before first use. -
Page 5: Maintenance
If you have trouble locating a service agency in your area, please consult our website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service. - Page 6 SODIR CREPE MACHINE MODEL 350-FE...
- Page 7 EQUIPEX, LLC 765 Westminster Street, Providence, RI 02903 Phone: (410) 273-3300 Fax: (401) 273-3328 Toll Free: 1-800-649-7885 SODIR Model 350-FE Crepe Machine (120V/60Hz/1Phase) or (208/240V/60Hz/1 Phase) Drawing # Part Number Qty. Description B02016 Enameled Hot Plate, 350 D02006 (120) Heating Element, 120V...
- Page 9 MODEL 400-FE...
- Page 10 MODEL 400-FE EQUIPEX, LLC 765 Westminster Street Providence, RI 02903 Effective 02/01/12 SODIR Model 400FE, 220V **NEW** Drawing # Part Number Quantity Description B02015+PERCAGE Enamelled Cast Iron Plate 400 D02156 Heating Element, 220v 67032 Heating Element Holder 400 67035 Deflector...
- Page 12 350E – 400E...
- Page 13 350E – 400E Part Number Description DWG # B02016+PERCAGE Enamelled cast iron plate 350 B02049 Enamelled cast iron plate 400 D02013 350 Armoured heating element 220V D02163 400 Armoured heating element 220V 67042 Heating element holder 350 67049 Heating element holder 400 66019 Heat Shield 350 67049...
- Page 15 350ED – 400ED...
- Page 16 350ED – 400ED DWG# Part Number Description B02016 + Percage Enamelled cast iron plate 350 B02049 Enamelled cast iron plate 400 D02013 350 Armoured heating element 220V D02163 400 Armoured heating element 220V 67042 Heating element holder 350 67049 Heating element holder 400 66019 Heat Shield 350 67048...
-
Page 18: Limited Warranty
This warranty applies only to equipment under normal use and service in the U.S.A. and Canada. It does not apply to any item which has been repaired or altered in any way so as, in the judgment of EQUIPEX, to affect its reliability.
