Page 1: Operation Manual

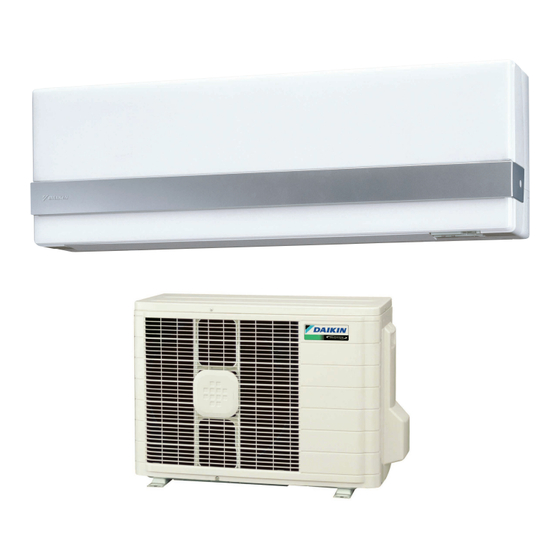

DAIKIN ROOM AIR CONDITIONER MODELS FTXG25CVMAW FTXG25CVMAS Operation Manual FTXG35CVMAW FTXG35CVMAS... -
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ... 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 OUTDOOR UNIT SILENT Operation .. -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • Do not insert fingers, poles, or other objects into the moving parts of the top front panel or the bottom front panel. -
Page 4: Installation Site
• Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. • Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard. •... -
Page 5: Names Of Parts
Names of parts I Indoor Unit (With the panel closed) -
Page 6: I Outdoor Unit
I Outdoor Unit I I I I Indoor Unit 1. Air filter • The operation mode refers to the following table. 2. Titanium Apatite Photocatalytic Temperature Air flow Air-Purifying Filter: Mode setting rate • These filters are attached to the inside of AUTO 25°C AUTO... -
Page 7: Remote Controller
I Remote Controller < > ARC433A41 1. Signal transmitter: 8. SILENT button: for OUTDOOR UNIT • It sends signals to the indoor unit. SILENT operation (page 15.) 2. Display: 9. FAN setting button: • It displays the current settings. • It selects the air flow rate setting. (In this illustration, each section is shown with all 10. -
Page 8: Preparation Before Operation
Preparation Before Operation I To set the batteries Position + and – correctly! 1. Press with a finger and slide the front cover to take it off. 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION I I I I About batteries •... - Page 9 Preparation Before Operation I To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, such as a curtain, the unit will not operate. •...
- Page 10 I To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. Holding down “ ” or “ ” button rapidly increases or decreases the time display. 3.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. I To start operation 1. -
Page 12: To Change Airflow Rate Setting
I To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”... -
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your comfort. I To adjust the horizontal blade (flap) 1. Press “SWING button ”. • “ ” is displayed on the LCD. 2. When the flap has reached the desired position, press “SWING button ”... - Page 14 I To start COMFORT AIRFLOW operation 5. Press “COMFORT AIRFLOW button”. The flap orientation will change, preventing air from blowing directly on the occupants of the room. • “ ” is displayed on the LCD. 〈COOL/DRY〉 The flap will go up. 〈HEAT〉...
-
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity . I To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used before POWERFUL operation. -
Page 16: Outdoor Unit Silent Operation
OUTDOOR UNIT SILENT Operation OUTDOOR UNIT SILENT operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. I To start OUTDOOR UNIT SILENT operation 1. -
Page 17: Intelligent Eye Operation
INTELLIGENT EYE Operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. I To start INTELLIGENT EYE operation 1. Press “SENSOR button”. • “ ” is displayed on the LCD. I To cancel the INTELLIGENT EYE operation 1, 2 2. - Page 18 “INTELLIGENT EYE” is useful for Energy Saving I I I I Energy saving operation • Change the temperature –2°C in heating / +2°C in cooling / +2°C in dry mode from set temperature. • Decrease the air flow rate slightly in fan operation. (In FAN mode only) Notes on “INTELLIGENT EYE”...
-
Page 19: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. I To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. - Page 20 I To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time (page 9.). 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches the point you like.
-
Page 21: Care And Cleaning
CARE Care and Cleaning • Before cleaning, be sure to stop the operation and turn the breaker OFF. CAUTION • Always shut down the unit (and close the panel) before doing any work. Opening the panel during operation may cause the panel to fall off. Units I Indoor unit, Outdoor unit and Remote controller 1. -
Page 22: I Air Filter
Filters 1. Open the top front panel. • Open the top front panel by placing a finger on the panel tab on either side of the top front panel and then secure it using the supporting plate on the right. 2. -
Page 23: Before A Long Idle Period
Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. •... -
Page 24: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... -
Page 25: Check Again
Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off) • Are batteries set in the remote controller? •... -
Page 26: Call The Service Shop Immediately
Call the service shop immediately. WARNING I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. I Do not attempt to repair or modify the air conditioner by yourself. - Page 27 MEMO...
- Page 28 MEMO...
- Page 29 MEMO...
- Page 30 3P119312-2C M03B039B (0512) HT...
