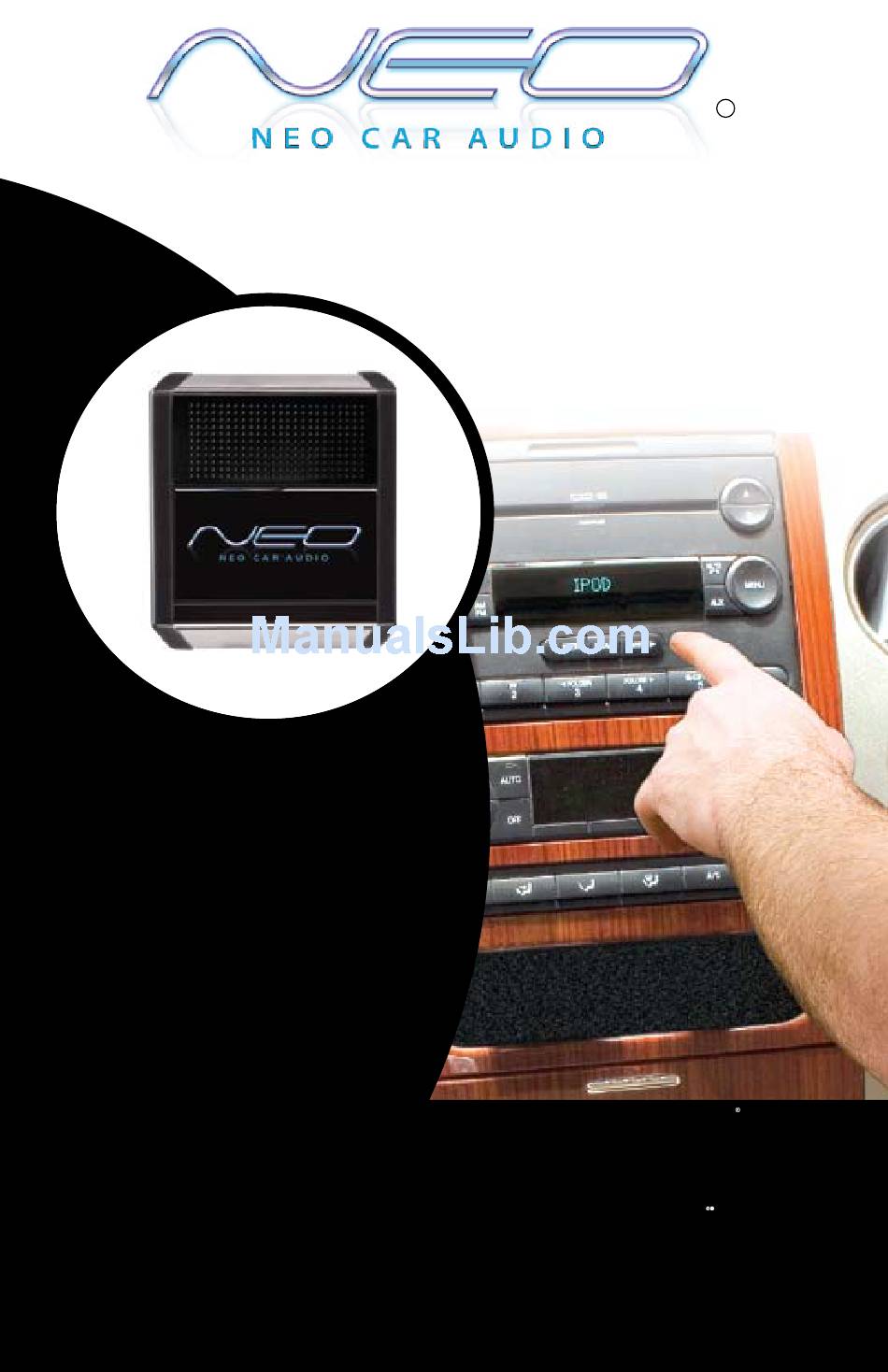

- Page 1 Expand Your Factory Radio iPod iPod ® ® Owner’s Manual Neo Gateway Enjoy The Music...
-
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation 6. iPod Operation Panasonic Radio Operation Delphi Radio Operation 7. HD Radio Operation (if equipped) Panasonic Radio Operation Delphi Radio Operation 8. Selecting AUX Input 9. - Page 3 Neo Gateway & Optional Add-ons Factory Radio Not Included iPod Not Included Neo Gateway Harness Neo Gateway 11Ft. iPod Cable 3Ft. HD Radio Cable HD Radio Tuner Antenna Adapter * Required for most vehicles. (sold seperately)
-
Page 4: Introduction
1. Introduction Thank you for purchasing the ® Neo Gateway. The Neo Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your HD Radio tuner or iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Neo Gateway. -
Page 5: Dipswitch Settings
4. Dipswitch Settings After removing the radio from the vehicle, identify the manufacturer of the radio. Two companies make the radios featured in these VW vehicles. If the model number sticker is on the side of the radio it is a Delphi brand radio. If the model number sticker is on the top of the radio it is a Panasonic brand radio. - Page 6 If the Tan connector is connected into the HDRT it will not receive any AM reception. 6. Plug the male connector on the VW1 harness into the port on the back of the radio. Next, connect the factory harness into the female connector on the VW1 harness.
-
Page 7: Ipod Operation
6. iPod Operation The Neo Gateway is accessed by pressing the “SAT” button to switch the radio to the Satellite radio source. In the Satellite Radio source, you will have access to all the available Neo Gateway sources. Press the “CAT FLDR”... -
Page 8: Hd Radio Operation
Press the “OK” button on the SWC to enter the Browse menu. Press “OK” to select the displayed option in the Browse menu. While in the Browse menu, change your browsing method by pressing the “▲” and “▼” buttons on the steering wheel controls. Delphi Radio Controls Next Track Turn the Tune knob Clockwise to skip to the next track. - Page 9 (if equipped) Press the “CAT FLDR” or “▲” button until “HD-AM” or “HD-FM” is dis- played. Wait 3 seconds, the radio will automatically enter the HD Radio mode. PANASONIC Radio Controls Seek Up Press the ”SEEK▲” button to seek up to next available station. Seek Down Press the ”▼SEEK”...
-
Page 10: Selecting Aux Input
Recall a station from preset memory Press “OK” to access the preset memory menu. Use the “▲” and “▼” buttons to cycle through the preset locations. When the desired preset is displayed, wait 3 seconds, the radio will auto select the station. -
Page 11: Troubleshooting
10. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Neo Gateway, and the iPod Gateway. I can not correctly The iPod firmware Update iPod firmware for free at control the iPod may be out of date. -
Page 12: Warranty Information
Within the first 12 months from date of purchase, subject to the conditions above, will repair or replace the product at their discretion, if it is defective in material or workmanship provid- ing it is returned to an Authorized Neo Car Audio Dealer, with PROOF OF PURCHASE from an authorized Elecronics dealer.
