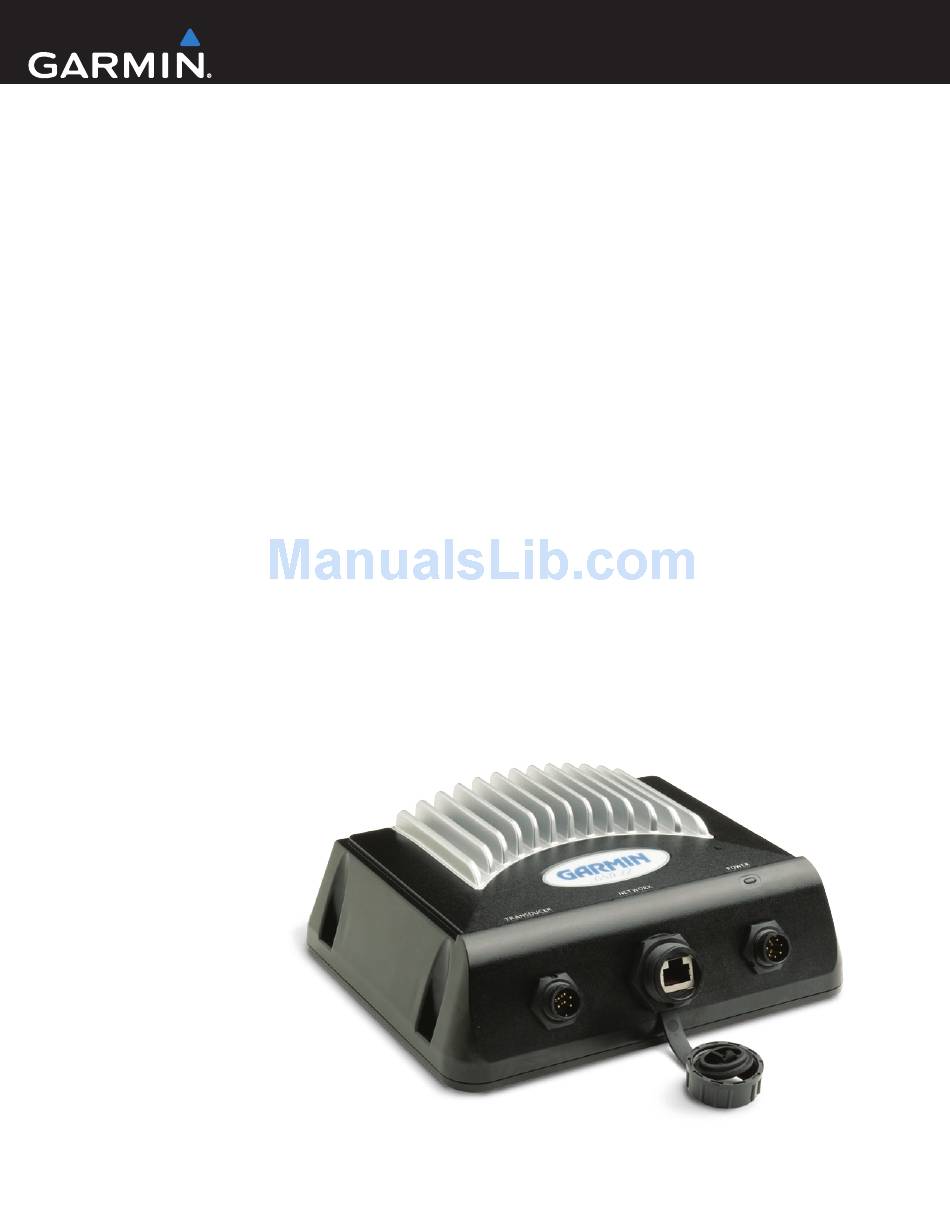

- Page 1 GSD 22 Sounder installation instructions August 2009 Part Number 190-00579-00 Rev. D Printed in Taiwan...
-
Page 2: Limited Warranty
Limited Warranty This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. - Page 3 For future reference, write the serial number assigned to your GSD 22 in the space provided. It is located on a sticker on the back of the unit. Serial Number: ___________________________________________________ Included Equipment Before installing your GSD 22, confirm that the package contains the following items. If any parts are missing, contact your Garmin dealer. • GSD 22 Sounder •...
- Page 4 3. Repeat steps 1 and 2, attaching the transducer cable to the TRANSDUCER connector on the GSD 22. 4. To connect the GSD 22 to your Garmin Marine Network, insert the RJ-45 connector into the NETWORK port on the back of the GSD 22 and turn the locking ring clockwise until it stops.
- Page 5 Garmin Marine Network components use specialized Garmin Network cables. For some installations, it may be necessary to drill 1¼ in. (32 mm) holes to route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below).
- Page 6 The Garmin Marine Network with Multiple Devices and a GSD 22 Note: Every device connected to the Garmin Marine Network must be connected to the power supply for the boat. These diagrams show the network connections; however, they do not show the power connections. Wire each device according to the appropriate installation instructions.
-
Page 7: Blink Codes
If a chartplotter is connected and this code persists, check the wiring. Software failure - Call Garmin Product Support. If the cause is a software error, the chartplotter can show the error. Power must be cycled to clear the error. - Page 8 For the latest free software updates (excluding map data) throughout the life of your Garmin products, visit the Garmin Web site at www.garmin.com. © 2009 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 Street, Olathe, Kansas 66062, USA Garmin (Europe) Ltd.
