Aewin Technologies AW-A795 User Manual

Control board, intel pentium 4 embedded sbc with six gigabit/two 10/100lan & ssd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Control Board
Model Number AW-A795
®
®
Intel
Pentium
4 Embedded SBC with Six Gigabit/Two 10/100LAN &
SSD
User's Manual
Version 1.0
We embed your need!
© Copyright 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-A795 and is the answer not in the manual?

Questions and answers

Related Manuals for Aewin Technologies AW-A795

Summary of Contents for Aewin Technologies AW-A795

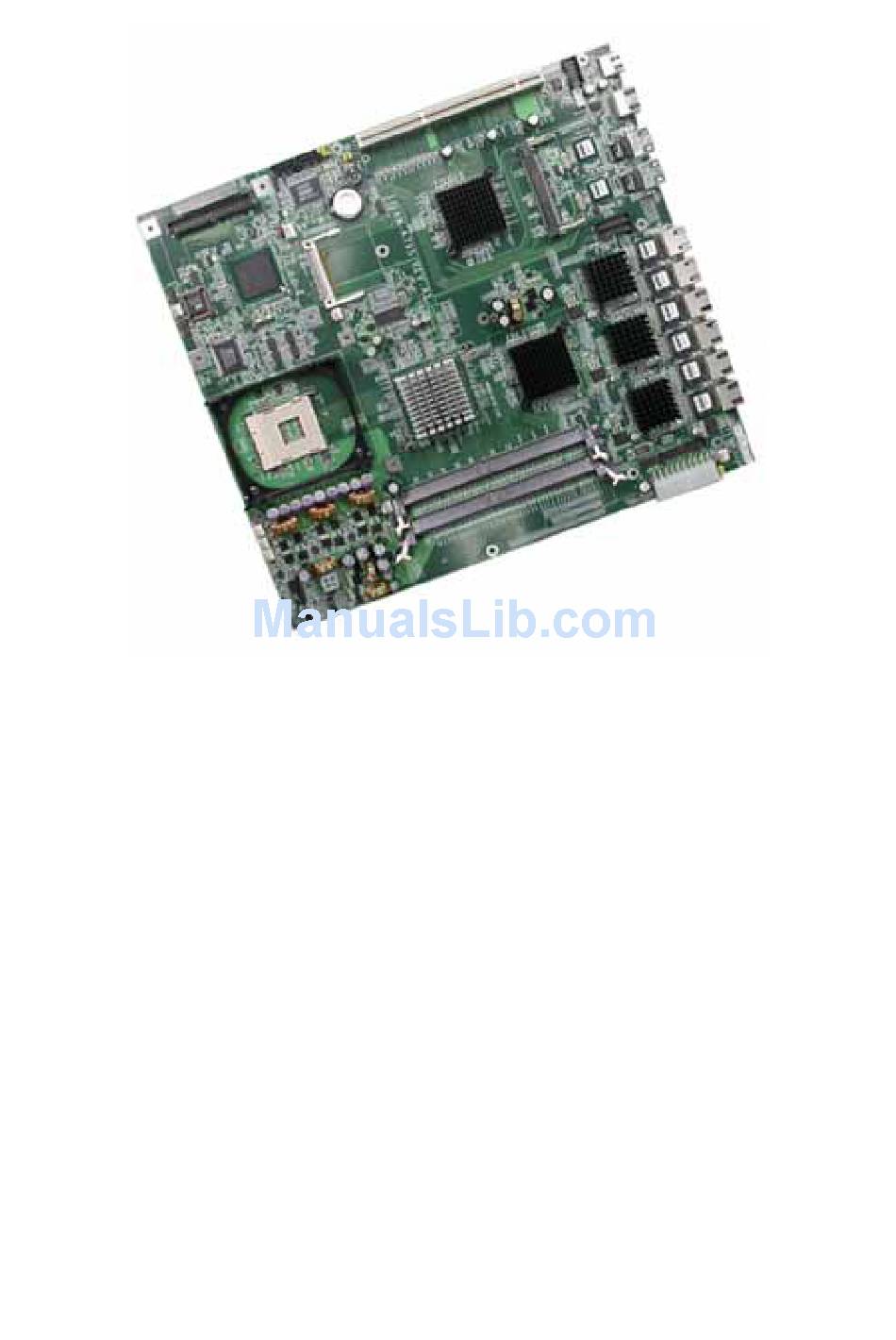

  • Page 1 Control Board Model Number AW-A795 ® ® Intel Pentium 4 Embedded SBC with Six Gigabit/Two 10/100LAN & User’s Manual Version 1.0 We embed your need! © Copyright 2005...
  • Page 2 IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business Machine Corporation Award is a trademark of Award Software International, Inc Intel is a trademark of Intel RTL is a trademark of Realtek VIA is a trademark of VIA Technologies, Inc...

  • Page 3: Table Of Contents

    User’s Manual Table of Contents Chapter 1. General Information-------------------------------------------------------------5T 1.1 Introduction---------------------------------------------------------------------------------5 1.2 Specification--------------------------------------------------------------------------------- 6 1.3 AW-A795 Package--------------------------------------------------------------------------7 1.4 Board Layout--------------------------------------------------------------------------------8 1.5 Board Dimension----------------------------------------------------------------------------8 Chapter 2. Connectors Location and Configuration-------------------------------------9 2.1 Connectors/Jumpers Location and Define--------------------------------------------- 9 2.2 Installing Processors----------------------------------------------------------------------- 11 2.3 Installing Memory------------------------------------------------------------------------- 14 2.4 Connector and Jumpers Settings------------------------------------------------------- 17...
  • Page 4 User’s Manual CN36:KB/MS Pin Header------------------------------------------------------------------------22 CN37:LAN LED Pin Header---------------------------------------------------------------------22 CN38:LAN LED Pin Header-------------------------------------------------------------------------22 JP1:PS/On Always On Select--------------------------------------------------------------------------22 JP2/4/5:PCI-X slot Frequency Select------------------------------------------------------------------23 JP3:Speak Buzzer Enable---------------------------------------------------------------23 JP6: Clear CMOS-----------------------------------------------------------------------------------------23 Chapter 3. BIOS Setup------------------------------------------------------------------------- 24 3.1 Quick Setup----------------------------------------------------------------------------------24 3.2 Entering the CMOS Setup Program----------------------------------------------------25 3.3 Menu Options-------------------------------------------------------------------------------- 26 Standard CMOS Features---------------------------------------------------------------------27 Advanced BIOS Features---------------------------------------------------------------------- 28...

  • Page 5: Chapter 1. General Information

    User’s Manual Chapter 1. General Information 1.1 Introduction THE AW-A795 embedded computing board, an “all-in-one” Network Security Hardware Appliance based on Intel® architecture with E7501+ICH3+P64H2 chipset supporting the Pentium® 4 processor with 400/533MHz FSB. The DDR 200/266 RAM (PC2100 registered) with ECC for enhanced data integrity up to 4GB.

  • Page 6: Specification

    User’s Manual 1.2 Specification General Functions Intel Pentium® 4 based processors with 400/533MHz Front-side Bus Award® 512KB Flash BIOS BIOS Intel® E7501 + ICH3 + P64H2 Chipset Winbond® 83627HF I/O Chipset Onboard two 184-pin DDR DIMM socket, support PC2100 registered...

  • Page 7: Aw-A795 Package

    Electrostatic discharge can be easily damage the AW-A795 board. Do not remove the anti-static packing until you are ready to install the AW-A795 board. Ground yourself before removing any system component from it protective anti-static packaging. To ground yourself, grasp the expansion slot covers or other unpainted parts of the computer chassis.

  • Page 8: Board Layout

    User’s Manual 1.4 Board Layout 1.5 Board Dimension ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 9: Chapter 2. Connectors Location And Configuration

    User’s Manual Chapter 2. Connectors/Switch Location and Configuration 2.1 Connectors/Jumpers Location and Define ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 10 User’s Manual Connector Define LAN (10/100) Connector USB0 Connector LAN (10/100) Connector ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 11: Installing Processors

    CN24 FAN Connector 2.2. Installing Processors The AW-A795 onboard built-in socket 479 for Intel® Pentium® 4 Processors. After installing the processor, you should proceed to installing the heatsink or cooler. ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 12 User’s Manual 2.2.1 Installing CPU: ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 13 User’s Manual 2.2.2 Remove CPU (1) First, please push the tappet to unlock location. (2) Then untie the screw beginning from left side you can refer to below the picture. (3) Now you can take out the CPU from socket. ©2002 AEWIN Technologies Co., Ltd..
  • Page 14 User’s Manual 2.2.3 How to recognize CPU Before you install CPU please make sure the CPU is exactly Pentium 4 processor. You can see the difference from CPU code and the pin out at backside. (1) Pentium M CPU (Socket 479) (2) PIII CPU –...

  • Page 15: Installing Memory

    (3) Pentium 4 CPU (Socket 478) 2.3 Installing Memory To insert a DIMM Memory: The AW-A795 supports two 184-pin DDR sockets, memory up to 4GB. Please make sure to insert DDR with registered. ©2002 AEWIN Technologies Co., Ltd.. All rights reserved.
  • Page 16 User’s Manual To Insert a DIMM Memory: Please align the module with the socket key and press down until the levers at each end of the socket snap close up. There is only one direction for installing a module in the socket. Do not attempt to force the module into the socket incorrectly.
  • Page 17 User’s Manual To Remove a DIMM Memory: To remove a DIMM, press down on the levers at both end of the module until the module pops out There is only one direction for installing a module in the socket. Do not attempt to force the module into the socket incorrectly.

  • Page 18: Connector And Jumpers Settings

    User’s Manual 2.4 Connector and Jumper Settings CN1 : USB0 Connector CN4/5/6/7/8/9:Gigabit LAN connector Define Define TX0+ Data0- TX0- Data1+ RX0+ Ground CN2/3 LAN (10/100) Connector RX0- LED: D1 :Bi-Color Speed Define 10 Mbps TX0+ 100 Mbps Yellow TX0- 1000Mbps Green RX0+ D2 :Link/Activity LED...

  • Page 19: Cn11/20/24/28/29/30/31:Fan Connector

    User’s Manual TXD# CTS# RXD# DTR# RI#2 PSR# Ground RTS# CN15 :Parallel Box Header CN11/20/24/28/29/30/31:FAN Connector Define Define STROBE AUTOFD SLCTIN CN12:Power LED Pin Header Ground Ground Ground Define Ground Ground ACK* Ground BUSY Ground CN13:USB1 Pin Header Ground Define SLCT Ground USBVCC...

  • Page 20: Cn17:Mini Pci

    User’s Manual POWER GOOD 5VSB AD{17} AD{18} +12V C/BE[2]# AD[16] IRDY# CN17:Mini PCI 3.3V FRAME# CLKRUN# TRDY# SERP# STOP# 3.3V PERP DEVSEL# CB/E[1] Define Define AD[14] AD[15] RING AD[13] 8PMJ-33 8PMJ-13 AD[12] AD[11] 8PMJ-63 8PMJ-23 AD[10] 8PMJ-73 8PMJ-43 AD[09] 8PMJ-83 8PMJ-53 AD[06] C/BE[0]#...

  • Page 21: Cn18:Gpio Pin Header

    User’s Manual CN22:SATA LED Pin Header SYS_AUDIO_ 118 SYS_AUDIO_ OUT G IN G Signal AUDIO_GND 120 AUDIO_GND RESERVED 122 MPCIACT# VCC3(3V) VCC5VA 3.3VAUX SATA-ACT0 CN18 : GPIO Pin Header VCC3(3V) SATA-ACT1 CN23:HDD Power Connector Pin Define Pin Define Define Pin Define GPO4- GPO4+ +12V...

  • Page 22: Cn26:Ide(2.54Mm) 40 Pin Connector

    User’s Manual DIOW* Ground IRQ14 DETECT DIOR* Ground IOCHRDY Ground PDCS#1 PDCS#3 DACK* Ground ACTIVE* IRQ14 DETECT CN27:+12V Power Connector SELECT 0* SELECT Define ACTIVE* Ground Ground Ground Ground +12V +12V CN26:IDE(2.54mm) 40 Pin Connector CN32:HDD LED Pin Header Define Define Define RESET*...

  • Page 23: Cn36:Kb/Ms Pin Header

    User’s Manual CN38:LAN LED Pin Header CN36:KB/MS Pin Header Define Define Define Define KCLK MCLK GL3_LINK100# GL3_LINK1000# KDAT MDAT GL3_LINK_UP# GL3_ACTIVITY# GL4_LINK100# GL4_LINK1000# PS2_GND PS2_GND GL4_LINK_UP# GL4_ACTIVITY# PS2_VCC 10 PS2_VCC GL1_LINK100# 10 GL1_LINK1000# 11 GL1_LINK_UP# 12 GL1_ACTIVITY# CN37:LAN LED Pin Header 13 GL2_LINK100# 14 GLS_LINK1000# GL2_LINK_UP 16 GL2_ACTIVITY#...

  • Page 24: Jp2/4/5:Pci-X Slot Frequency Select

    User’s Manual JP2/4/5:PCI-X Slot Frequency Select Frequency 133MHz Open Open 100MHz Open 66MHz Short 33MHz JP3:Speak Buzzer Enable Setting Enable Close (Default) Open Disable JP6:Clear CMOS Setting Hold Data (Default) Clear CMOS ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0.

  • Page 25: Chapter 3. Bios Setup

    User’s Manual Chapter 3. BIOS Setup The ROM chip of your AW-A795 board is configured with a customized Basic Input/Output System (BIOS) from Phoenix-Award BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics. It also tests the computer and determines how the computer reacts to instructions that are part of programs.

  • Page 26: Entering The Cmos Setup Program

    User’s Manual 3.2 Entering the CMOS Setup Program Use the CMOS Setup program to modify the system parameters to reflect the options installed in your system and to customized your system. For example, you should run the Setup program after you: Received an error code at startup Install another disk drive Use your system after not having used it for a long time...

  • Page 27: Menu Options

    User’s Manual 3. Choose a setup option with the arrow keys and press <Enter>. See the following sections for a brief description of each setup option. In the main menu, press F10 (“Save & Exit Setup) to save your changes and reboot the system.

  • Page 28: Load Fail-Safe Default

    User’s Manual LOAD FAIL-SAFE DEFAULT: Loads BIOS default values. Use this option as diagnostic aid if your system behaves erratically LOAD OPTIMIZED DEFAULTS: Loads optimized BIOS settings SET SUPERVISORS & USER PASSWORD: Configure the system so that a password is required when the system boots or you attempt to enter the CMOS setup program.
  • Page 29 User’s Manual 2. Use the arrow keys to move between fields. Modify the selected field using the PgUP/PgDN/+/- keys. Some fields let you enter numeric values directly. Option Description Date (mm:dd:yy) Type the current date Time (hour:min:sec) Type the current time (24-hour clock) Hard Disks Choose from “Auto”, “User”, or “None”...
  • Page 30 User’s Manual Phoenix - Award BIOS CMOS Setup Utility Advanced BIOS Features Item Help Virus Warning <Disabled> CPU L1 & L2 Cache <Enabled> Menu Level First Boot Device <HDD-0> Allows you to choose Second Boot Device <HDD-2> Third Boot Device <CDROM>...
  • Page 31 User’s Manual Agent after boot Choose enabled to enable agent administrate this board after boot. Advanced Chipset Features Setup Use the Advanced Chipset Features Setup option as follows: 1. Choose “Advanced Chipset Features Setup” from the main menu. The following screen appears ;...

  • Page 32: Integrated Peripherals 3

    User’s Manual to this memory area, a system error may result. Video BIOS Cacheable Choose Enabled or Disabled. When Enable this option to allow caching of the Video BIOS. Memory Hole At 15M-16M Choose Enabled or Disabled. You can reserve this area of system memory for ISA adapter ROM.

  • Page 33: Power Management Setup 3

    User’s Manual Option Description Onchip IDE Device IDE HDD Block Mode <Enabled> Onchip Primary PCI IDE <Enabled> IDE Primary Master PIO <Auto> IDE Primary Master UDMA <Auto> IDE Primary Slave UDMA <Auto> Onchip Secondary PCI IDE <Enabled> IDE Secondary Master PIO <Auto> IDE Secondary Slave PIO <Auto>...
  • Page 34 User’s Manual 2. Move between items and select values by using the arrow keys. Modify the selected field the PgUP/PgDN keys. For information on the various options, press <F1> key. Option Description Power Management Choose Disable, User Define, Min Saving or Max. Saving. “User Define”...

  • Page 35: Pnp/Pci Configuration 3

    User’s Manual HDD Power Down Sets the time for the HDD power down mode or disables it Reload Global Timer Events Choose Enable or Disable Primary IDE 0 <Disabled> Primary IDE 1 <Disabled> Secondary IDE 0 <Disabled> Secondary IDE 1 <Disabled>...
  • Page 36 User’s Manual 2. Move between items and select values by using the arrow keys. Modify the selected fields using the PgUP/PgDN keys. For information on the various options, please press <F1> key. Option Description Reset Configuration Data Choose Enable or Disable “Enable”...

  • Page 37: Pc Health Status 3

    User’s Manual PC Health Status Configuration Setup Choose “PC Health Status Configuration Setup” from the main menu, the following screen appears: Phoenix – Award BIOS CMOS Setup Utility PC Health Status System Temperature : / 75 CPU Temperature / 98 FAN 1 Speed FAN 2 Speed Item Help...
  • Page 38 User’s Manual Phoenix - AwardBIOS CMOS Setup Utilities Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Default Advanced Chipset Features Load Optimized Defaults Integrated Pheripherals Set Password Power Management Setup Save and Exit Setup Load Fail-Safe Defaults (Y/N)? Y PnP/PCI Configuration Exit Without Saving PC Health Status...
  • Page 39 User’s Manual Supervisor/User Password The password options let you prevent unauthorized system boot-up or unauthorized use of CMOS setup. The Supervisor Password allows both system and CMOS Setup program access; the User Password allows access to the system and the CMOS Setup Utility main menu.

  • Page 40: Save And Exit Setup

    User’s Manual Save and Exit Setup This function automatically saves all CMOS values before exiting Setup. Phoenix - AwardBIOS CMOS Setup Utilities Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Default Advanced Chipset Features Load Optimized Defaults Integrated Pheripherals Set Password Power Management Setup Save and Exit Setup...

  • Page 41: Ethernet Driver Installation

    Chapter 4. Driver Utility The system driver installation procedure must be performed first. 4.1 Ethernet Driver Installation It AW-A795 supports three 10/100 Ethernet Controller by using Intel® 82551ER and 82546EB for optional Extension Fiber/Copper. 4.1.1. Intel 82546EB Ethernet (1) Choose Ethernet Controller ©2002 AEWIN Technologies Co., Ltd..
  • Page 42 User’s Manual (2) Choose Driver (3) Click Next ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 43 User’s Manual (4) Click Next (5)Click Next ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 44 User’s Manual (6) Click Next (7) Click Finish ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 45 User’s Manual 4.1.2 Intel® 82551 Ethernet Installation Please install Ethernet drivers as follows: 1. Insert the AW-A795 CD-ROM driver into the CD-ROM Drive 2 . Select the Drivers/system file to click the Setup icon. 3 . Choose Ethernet controller (2) Choose Driver ©2002 AEWIN Technologies Co., Ltd..
  • Page 46 User’s Manual (3) Click Next (4) Click Next ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 47 User’s Manual (5) Click Next (6) Click Next ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 48 User’s Manual (7) Click Finish 4.2.1 Install System Chipset Driver ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 49 User’s Manual (1) Click Next (2) Click Yes (3) Click Next ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 50 User’s Manual (4) Click Finish Installation process is completed and allowed the system to reboot. ©2002 AEWIN Technologies Co., Ltd.. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 51: Appendix A. System Resources

    Appendix A :System Resource Interrupt Controller The AW-A795 is a fully PC compatible control board, it consists of 16 ISA interrupt request lines and most of them already in used by other part of the board. Please make sure that the IRQs do not conflict if you would like to use extra add-on cards.
  • Page 52 DMA6 Available for PCI and ISA Slot DMA7 Available for PCI and ISA Slot Memory Map The following table indicates memory of AW-A795. The address ranges specify the runtime code length. Memory below 1MB (1Mb ~ 640KB) Address Range Type...
  • Page 53 User’s Manual 8042 Compatible keyboard Controller AT Style Speaker 8042 Compatible keyboard Controller 70 ~ 71 Real Time Clock 81 ~ 83 AT DMA Controller AT DMA Controller 89 ~ 8B AT DMA Controller 8F ~ 91 AT DMA Controller A0 ~ A1 AT Interrupt Controller C0 ~ DF...

  • Page 54: Appendix B. Optional Cable List

    User’s Manual Appendix B: Standard Cable List Part No. Cable Description AW-A795 Terminating Connector Connector 46-ICOM00-00 COM Port Cable 2.54mm ,COM2 Cable 46-IPS200-00 46-IUSB2B-00 46-ILPT01-00 Printer Cable CN18 2.0 mm ,Printer Port Cable Optional Cable List Part No. Cable Description...
