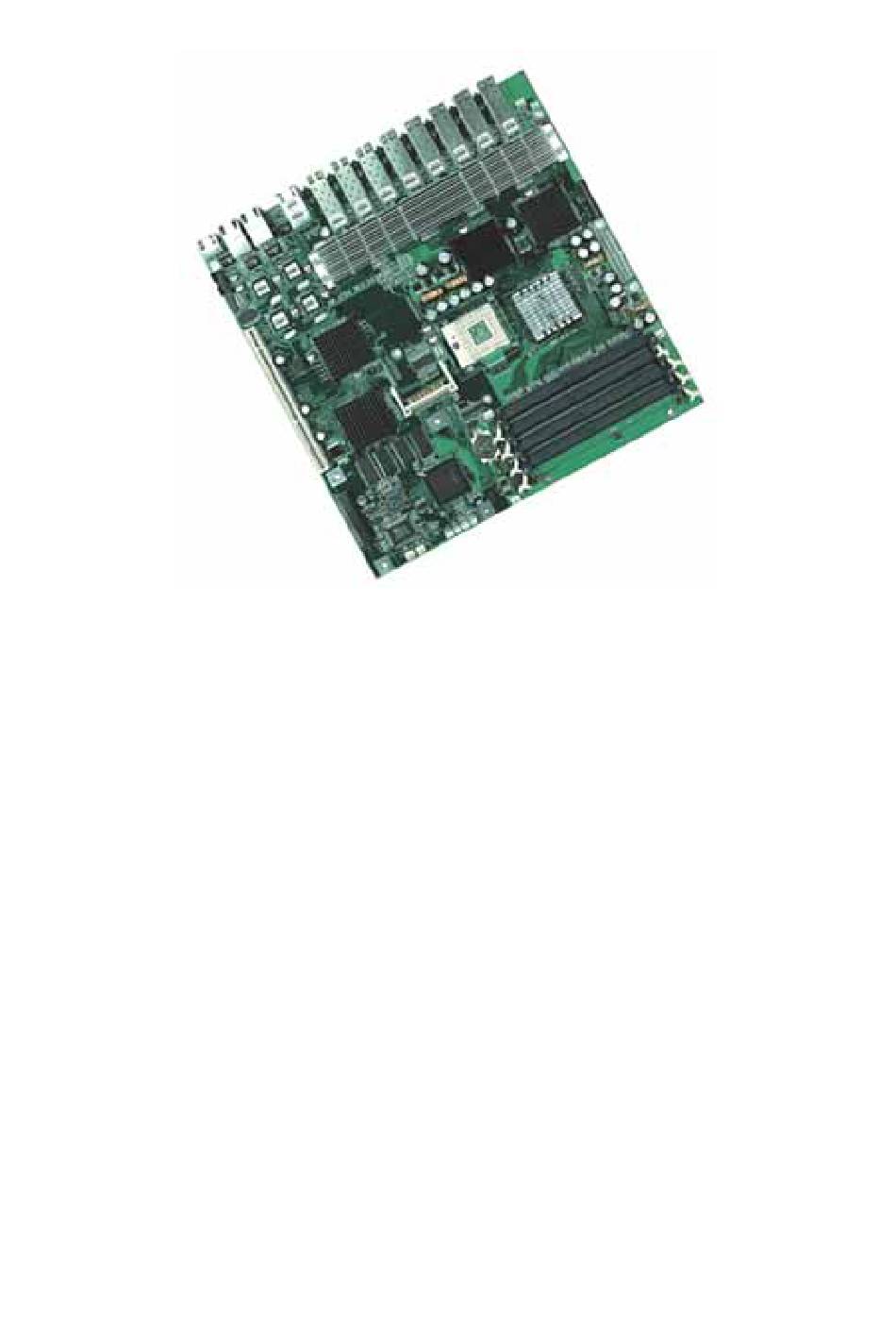

Control Board
Model Number AW-A793
Intel® Pentium® M Embedded SBC with Ten 64-bit GbE ports, Four
10/100LAN & SSD
User's Manual
Version 1.0
©Copyright 2005
We embed your need!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-A793 and is the answer not in the manual?

Questions and answers

Related Manuals for Aewin Technologies AW-A793

Summary of Contents for Aewin Technologies AW-A793

  • Page 1 Control Board Model Number AW-A793 Intel® Pentium® M Embedded SBC with Ten 64-bit GbE ports, Four 10/100LAN & SSD User’s Manual Version 1.0 ©Copyright 2005 We embed your need!
  • Page 2 While reasonable efforts have been made to ensure the accuracy of this manual, the manufacturer and distributor assume no liability resulting from errors or omissions in this manual, or from the use of the information contained herein. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 3: Table Of Contents

    CN19:Power LED Pin Header------------------------------------------------------------------19 CN20:HDD LED Pin Header--------------------------------------------------------------------20 CN21:PS-ON Pin Header------------------------------------------------------------------20 CN22:Reset Pin Header--------------------------------------------------------------------20 CN23/24/25/26/27/28/29/30:SFP Connector------------------------------------------------20 CN31:LCM back light Connector--------------------------------------------------------------20 JP2:PS-On/Always On Select------------------------------------------------------------------20 JP3:Clear CMOS------------------------------------------------------------------------------------20 JP4:CPU Frequency Select--------------------------------------------------------------------21 ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 4 Set Supervisor & User Password-------------------------------------------------------------36 Chapter 4. Drivers and Utilities Installation-----------------------------------------------38 4.1 Ethernet Driver Installation --------------------------------------------------------------38 4.2 System Chipset Driver Installation------------------------------------------------------45 Appendix A. System resources---------------------------------------------------------------47 Appendix B. Optional Cable List--------------------------------------------------------------51 ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 5: Chapter 1. General Information

    8GB. It also integrates SafeXcel®-184x high performance security co-processor onboard that designed for the VPN appliance market and optimized for IPSec. The AW-A793 provides fourteen Ethernet ports including eight GbE SFP pots, two GbE copper ports and four10/100BASE-T LAN ports for multiple Ethernet port markets and performance requirements.

  • Page 6: Specification

    Mechanical and Environmental Power supply voltage Standard ATX Power supply Operating temperature ℉ ℃ 32 to 140 (0 to 60 ) Board size 11”(L) x 11”(W) , (275mmx275mm) ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 7 Please make sure you properly ground yourself before handling the AW-A793 board or other system components. Electrostatic discharge can be easily damage the AW-A793 board. Do not remove the anti-static packing until you are ready to install the AW-A793 board. Ground yourself before removing any system component from it protective anti-static packaging.

  • Page 8: Board Layout

    User’s Manual 1.4 Board Layout ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 9: Board Dimension

    User’s Manual 1.5 Board Dimension ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 10: Chapter 2. Connectors Location And Configuration

    User’s Manual Chapter 2. Connectors/Switch Location and Configuration 2.1 Connectors/Jumpers Location and Define ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 11 CN27 SFP Connector CN28 SFP Connector CN29 SFP Connector CN30 SFP Connector CN31 LCM back light Connector CN32 FAN Connector PS-On/Always On Select Clear CMOS CPU Frequency Select ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 12: Installing Processors

    User’s Manual 2.2. Installing Processors The AW-A793 onboard built-in socket 479 for Intel® Pentium® M Processors. After installing the processor, you should proceed to installing the heatsink or cooler. 2.2.1 Installing CPU : (1) The CPU has marks with a triangle then make sure the triangle has the same position with CPU socket;...
  • Page 13 Before you install CPU please make sure the CPU is exactly Pentium M processor. You can see the difference from CPU code and the pin out at backside. (1) Pentium M CPU (Socket 479) ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 14 User’s Manual (2) PIII CPU – (uFCPGA Package) (3) Pentium 4 CPU (Socket 478) ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 15: Installing Memory

    2.3 Installing Memory To insert a DIMM Memory: The AW-A793 supports two 184-pin DDR sockets, memory up to 8GB. Please make sure to insert DDR with registered. To Insert a DIMM Memory: Please align the module with the socket key and press down until the levers at each end of the socket snap close up.
  • Page 16 There is only one direction for installing a module in the socket. Do not attempt to force the module into the socket incorrectly. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 17: Connector And Jumpers Settings

    Speed LED Speed LED RD0+ RD1+ 100 Green Green 1000 Yellow 1000 Yellow RD0- RD1- Link/Activity LED Link/Activity Link Green Link Green Activity Blinking Activity Blinking Link/Activity Link/Activity ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 18: Cn5/13/14/16/17/32:Fan Connector

    22 Ground 10 GND 10 ACK* 23 Ground 11 BUSY 24 Ground 12 PE 25 Ground CN8: +12V Power Connector 13 SLCT 26 Ground CN11: GPO Pin Header ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 19: Cn12:Atx Power Connector

    CN15: IDE (2mm) 44 Pin 90 degree Define IDE ACT# VCC 3 Pin Define Pin Define 1 RESET* Ground 3 DATA7 DATA8 5 DATA6 DATA9 7 DATA5 DATA10 ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 20: Cn21:Ps-On Pin Header

    2-3 Always on (Default) Connector Define JP3: Clear CMOS Setting TX-Disable 1-2 Hold Data (Default) 2-3 Clear CMOS JP4: CPU Frequency Select Setting 400MHZ (Default) VCC3 533MHZ VCC3 ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 21: Chapter 3. Bios Setup

    User’s Manual Chapter 3. BIOS Setup The ROM chip of your AW-A793 board is configured with a customized Basic Input/Output System (BIOS) from Phoenix-Award BIOS. The BIOS is a set of permanently recorded program routines that give the system its fundamental operational characteristics. It also tests the computer and determines how the computer reacts to instructions that are part of programs.

  • Page 22: Entering The Cmos Setup Program

    Power Management Setup Save & Exit Setup PnP/PCI Configuration Exit Without Saving PC Health Status : Select Item F10: Save & Exit Setup Time, Date, Hard Disk Type..©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 23: Menu Options

    Configure the CPU speed and, if the optional Winbond W83627HF system monitor IC is installed, view system information LOAD FAIL-SAFE DEFAULT: Loads BIOS default values. Use this option as diagnostic aid if your system behaves erratically ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 24 Video <EGA/VGA> Halt On <All, but Keyboard> Base Memory 640K Extend Memory 261120K Total Memory 262144K Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F7:Optimized Defaults F5:Previous Value F6:Fail-Safe Default ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 25 Advanced BIOS Features Setup Use the Advanced BIOS Features Setup option as follows: 1. Choose “Advanced BIOS Features Setup” from the main menu. The following screen appears: ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 26 The data transfer rate (bit per second) to agent. Choose 9600/19200/38400/57600/115200 item. Agent wait time(min) Agent negotiate time, choose 1/2/4/8 min. Agent after boot Choose enabled to enable agent administrate this board after boot. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 27 BIOS at F0000h-FFFFFh, enhancing system performance. However, if any program writes to this memory area, a system error may result. Video BIOS Cacheable Choose Enabled or Disabled. When Enable this ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 28: Integrated Peripherals

    2. Move between items and select values by using the arrow keys. Modify the selected fields using the PgUP/PgDN keys. Please press the <F1> key for information on the various options. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 29: Power Management Setup

    Use the Power Management Setup option as follows: 1. Choose “Power Management Setup” from the main menu. The following screen appears. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 30 Choose “Stop Grant” or “Power on Suspend” MODEM Use IRQ Choose the IRQ used by the modem. Default: Disabled Suspend Mode Sets the time for Suspend mode or disables it ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 31: Pnp/Pci Configuration

    OS cannot boot Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F7:Optimized Defaults F5:Previous Value F6:Fail-Safe Default ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 32 3. Please press the <ESC> key to return the main menu after finishing with the PNP/PCI Configuration Setup. PC Health Status Configuration Setup Choose “PC Health Status Configuration Setup” from the main menu, the following screen appears: ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 33: Pc Health Status

    This is useful if you are having problems with the main board and need to debug or troubleshoot the system. The loaded default settings do not affect the Standard CMOS Setup screen. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 34: Load Fail-Safe Default

    Optimized Default Values. Press the <Y> key and then press <Enter> if you want to load the SETUP default. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 35 After you use this option to enable a password function, use the “Security Option” in “BIOS Feature Setup” to specify whether a password is required every time the system boots or only when an attempt is made to enter the CMOS Setup program. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 36 F10 : Save & Exit Setup Time, Date, Hard Disk Type... Time, Date, Hard Disk Type... Time, Date, Hard Disk Type... Time, Date, Hard Disk Type... Time, Date, Hard Disk Type... ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 37: Ethernet Driver Installation

    Chapter 4. Driver Utility The system driver installation procedure must be performed first. 4.1 Ethernet Driver Installation It AW-A793 supports three 10/100 Ethernet Controller by using Intel® 82551ER and 82546EB for optional Extension Fiber/Copper. 4.1.1. Intel 82546EB Ethernet (1) Choose Ethernet Controller (2) Choose Driver ©2005 AEWIN Technologies Co., Ltd.
  • Page 38 User’s Manual (3) Click Next (4) Click Next ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 39 User’s Manual (5)Click Next (6) Click Next ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 40 (7) Click Finish 4.1.2 Intel® 82551 Ethernet Installation Please install Ethernet drivers as follows: 1. Insert the AW-A793 CD-ROM driver into the CD-ROM Drive 2 . Select the Drivers/system file to click the Setup icon. 3 . Choose Ethernet controller ©2005 AEWIN Technologies Co., Ltd.
  • Page 41 User’s Manual (2) Choose Driver (3) Click Next ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 42 User’s Manual (4) Click Next (5) Click Next ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 43 User’s Manual (6) Click Next (7) Click Finish ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 44 User’s Manual 4.2.1 Install System Chipset Driver (1) Click Next (2) Click Yes ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 45 User’s Manual (3) Click Next (4) Click Finish Installation process is completed and allowed the system to reboot. ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...

  • Page 46: Appendix A. System Resources

    Appendix A :System Resource Interrupt Controller The AW-A793 is a fully PC compatible control board, it consists of 16 ISA interrupt request lines and most of them already in used by other part of the board. Please make sure that the IRQs do not conflict if you would like to use extra add-on cards.
  • Page 47 DMA6 Available for PCI and ISA Slot DMA7 Available for PCI and ISA Slot Memory Map The following table indicates memory of AW-A793. The address ranges specify the runtime code length. Memory below 1MB (1Mb ~ 640KB) Address Range Type...
  • Page 48 PCI Bus 2F8 ~ 2FF Communication Port (COM2) IDE Controller 378 ~ 37A LPT1 3BB ~ 3B0 VGA Adapter 3C0 ~ 3DF VGA Adapter 3F0 ~ 3F5 FDD Controller ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 49 CF8 ~ CFF PCI Bus 4000 ~ 40BF PCI Bus A000 ~ BFFF PCI Bus C000 ~ CFFF PCI Bus D000~D01E USB Controller D400~D41E USB Controller F000~F00E IDE Controller ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
  • Page 50 User’s Manual Appendix B: Standard Cable List Part No. Cable Description AW-A793 Terminating Connector Connector 46-ICOM00-00 COM Port Cable 46-IUSB08-00 USB Cable 46-ILP01-00 Parallel Port Cable ©2005 AEWIN Technologies Co., Ltd. All rights reserved. Ver 1.0. Jan. 2005...
