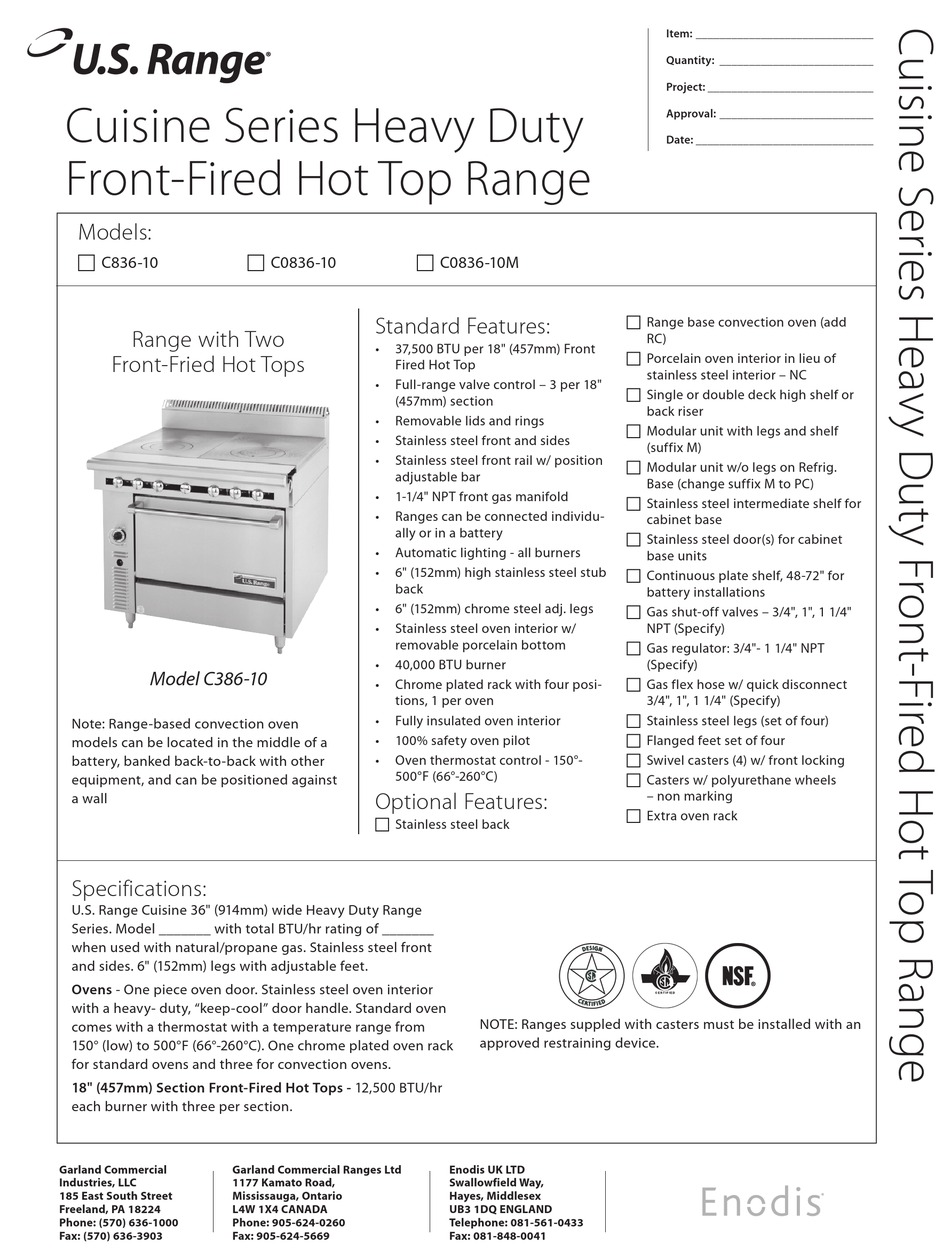

U.S. Range C0836-10 Specifications

Cuisine Series Heavy Duty
Front-Fired Hot Top Range
Models:
 C836-10
Range with Two
Front-Fried Hot Tops
Model C386-10
Note: Range-based convection oven
models can be located in the middle of a
battery, banked back-to-back with other
equipment, and can be positioned against
a wall

Specifications:

U.S. Range Cuisine 36" (914mm) wide Heavy Duty Range
Series. Model _______ with total BTU/hr rating of _______
when used with natural/propane gas. Stainless steel front
and sides. 6" (152mm) legs with adjustable feet.
Ovens - One piece oven door. Stainless steel oven interior
with a heavy- duty, "keep-cool" door handle. Standard oven
comes with a thermostat with a temperature range from
150° (low) to 500°F (66°-260°C). One chrome plated oven rack
for standard ovens and three for convection ovens.
18" (457mm) Section Front-Fired Hot Tops - 12,500 BTU/hr
each burner with three per section.
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 C0836-10  C0836-10M

Standard Features:

• 37,500 BTU per 18" (457mm) Front
Fired Hot Top
• Full-range valve control – 3 per 18"
(457mm) section
• Removable lids and rings
• Stainless steel front and sides
• Stainless steel front rail w/ position
adjustable bar
• 1-1/4" NPT front gas manifold
• Ranges can be connected individu-
ally or in a battery
• Automatic lighting - all burners
• 6" (152mm) high stainless steel stub
back
• 6" (152mm) chrome steel adj. legs
• Stainless steel oven interior w/
removable porcelain bottom
• 40,000 BTU burner
• Chrome plated rack with four posi-
tions, 1 per oven
• Fully insulated oven interior
• 100% safety oven pilot
• Oven thermostat control - 150°-
500°F (66°-260°C)

Optional Features:

 Stainless steel back
 Range base convection oven (add
 Porcelain oven interior in lieu of
 Single or double deck high shelf or
 Modular unit with legs and shelf
 Modular unit w/o legs on Refrig.
 Stainless steel intermediate shelf for
 Stainless steel door(s) for cabinet
 Continuous plate shelf, 48-72" for
 Gas shut-off valves – 3/4", 1", 1 1/4"
 Gas regulator: 3/4"- 1 1/4" NPT
 Gas flex hose w/ quick disconnect
 Stainless steel legs (set of four)
 Flanged feet set of four
 Swivel casters (4) w/ front locking
 Casters w/ polyurethane wheels
 Extra oven rack
NOTE: Ranges suppled with casters must be installed with an
approved restraining device.
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
RC)
stainless steel interior – NC
back riser
(suffix M)
Base (change suffix M to PC)
cabinet base
base units
battery installations
NPT (Specify)
(Specify)
3/4", 1", 1 1/4" (Specify)
– non marking
