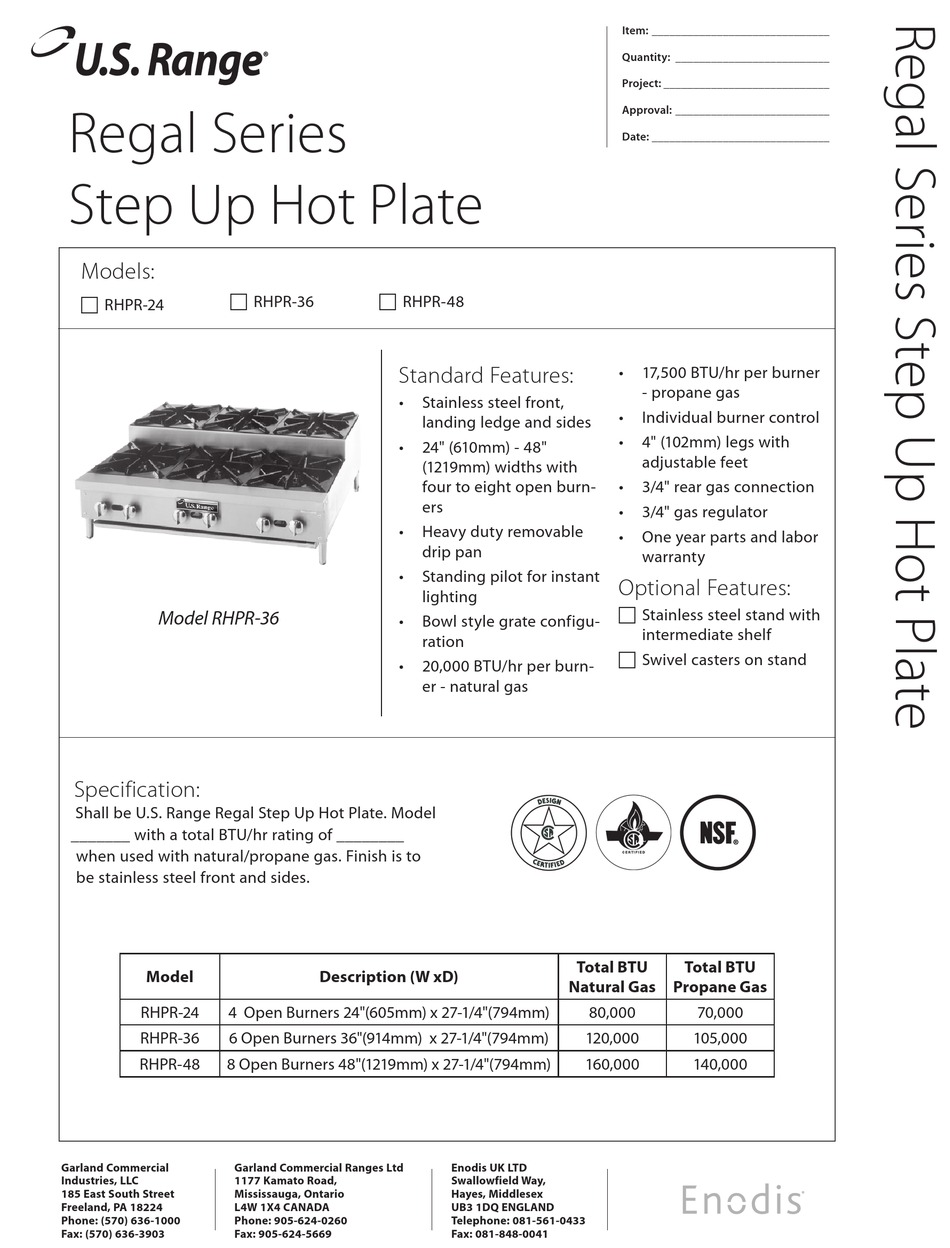

U.S. Range RHPR-24 Specification

Regal Series
Step Up Hot Plate
Models:
 RHPR-36
 RHPR-24
Model RHPR-36
Specification:
Shall be U.S. Range Regal Step Up Hot Plate. Model
_______ with a total BTU/hr rating of ________
when used with natural/propane gas. Finish is to
be stainless steel front and sides.
Model
RHPR-24 4 Open Burners 24"(605mm) x 27-1/4"(794mm)
RHPR-36 6 Open Burners 36"(914mm) x 27-1/4"(794mm)
RHPR-48 8 Open Burners 48"(1219mm) x 27-1/4"(794mm)
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 RHPR-48

Standard Features:

• Stainless steel front,
landing ledge and sides
• 24" (610mm) - 48"
(1219mm) widths with
four to eight open burn-
ers
• Heavy duty removable
drip pan
• Standing pilot for instant
lighting
• Bowl style grate configu-
ration
• 20,000 BTU/hr per burn-
er - natural gas
Description (W xD)
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
• 17,500 BTU/hr per burner
- propane gas
• Individual burner control
• 4" (102mm) legs with
adjustable feet
• 3/4" rear gas connection
• 3/4" gas regulator
• One year parts and labor
warranty
Optional Features:
 Stainless steel stand with
intermediate shelf
 Swivel casters on stand
Total BTU Total BTU
Natural Gas Propane Gas
80,000 70,000
120,000 105,000
160,000 140,000
