exon manual.qxd
01/04/03
12:32
Page 1
Contents
Important..................................................................................1
Introduction..............................................................................2
Design Innovation....................................................................3
General Description.................................................................4
Installation................................................................................5
Amplifier and Speaker Protection............................................6
Short Circuit Protection............................................................7
Power Amplifier Inputs.............................................................8
Input Connections....................................................................9
Loudspeakers........................................................................10
In Use.....................................................................................11
Specifications.........................................................................12
Troubleshooting................................................................13-16
Owners Log...........................................................................17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Exon and is the answer not in the manual?

Questions and answers

Related Manuals for Rega Exon

Summary of Contents for Rega Exon

  • Page 1: Table Of Contents

    01/04/03 12:32 Page 1 Contents Important..................1 Introduction................2 Design Innovation..............3 General Description..............4 Installation................5 Amplifier and Speaker Protection..........6 Short Circuit Protection............7 Power Amplifier Inputs.............8 Input Connections..............9 Loudspeakers................10 In Use..................11 Specifications.................12 Troubleshooting..............13-16 Owners Log................17...

  • Page 2: Exon Manual.qxd 01/04/03 12:32

    3. Alternatively place the amplifiers side by side with at least 40mm between them. 4. Do not place the Exon 3 on any carpet, bedding or any other material that will obstruct the heat sink fins underneath. 5. Keep the Exons away from any heat source such as radiators, fires, heaters or sunlight.

  • Page 3: Introduction

    Mission Statement Rega’s philosophy is to make high quality products at sensible prices, as a means of reproducing music as faithfully as possible. Rega is committed to the design and development of new and existing products, both in hi-fi and other areas, that will perpetuate Rega’s values of quality and value for money.

  • Page 4: Design Innovation

    12:32 Page 4 Design Innovation In common with all Rega products, the Exon 3 mono-block has been designed without compromise. Our time and money has been spent on developing the unique circuit design and using unusually high quality components. However, we have included useful features to further enhance your listening pleasure.

  • Page 5: General Description

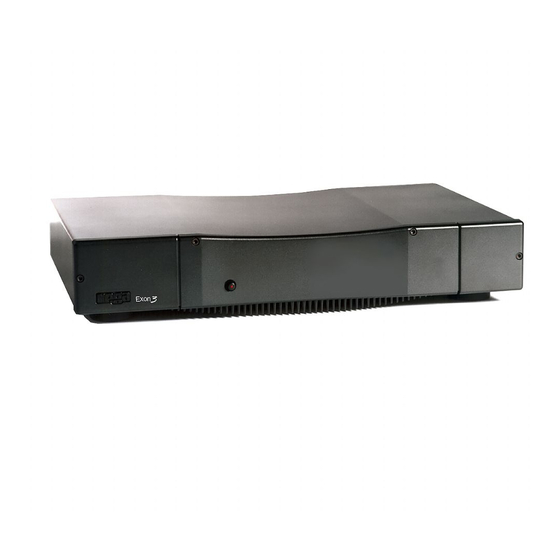

    12:32 Page 5 General Description The Rega Exon 3 Power Amplifier is a 120 Watt 8Ω/200 Watt 4Ω high performance, symmetrical circuit, Mono Block power amplifier, which is housed in the Rega custom built extruded aluminium case and high thermal efficiency heat sink. The Exon 3 amplifier has a fully protected output stage, with DC and electronic thermal protection &...

  • Page 6: Installation

    Never stack other hi-fi components on top of the amplifier. Due to the layout of Rega’s amplifier circuit designs, they are virtually insusceptible to Electro Magnetic interference, and by virtue of the extruded aluminium case, emit practically no Electro Magnetic radiation.

  • Page 7: Amplifier And Speaker Protection

    01/04/03 12:32 Page 7 Amplifier and Speaker Protection The power LED will flash if the following has occurred. 1) Thermal cutout has been activated. If the amplifier reaches a temperature liable to cause internal electronic damage a thermal protection sensor will activate, and protect the speaker, and alert the user of the fault condition.

  • Page 8: Short Circuit Protection

    If in the event that the speaker leads are shorted, the short circuit protection will protect the output stage from excessive currents. This innovative Rega protection circuit is not placed in the audio signal path and therefore does not affect sound quality.

  • Page 9: Power Amplifier Inputs

    12:32 Page 9 Power Amplifier Inputs The Exon 3 can be used in conjunction with any pre-amplifier with a standard line output level (approximately 1V). The red (Input) socket on the back of the amplifier is for input from the pre-amplifier.

  • Page 10: Input Connections

    Page 10 Input Connections All connections are made using RCA (phono) type connectors. The sockets on all Rega amplifiers are clearly marked red and white. Input: the lower row marked in RED. Link: the upper row marked in WHITE. Important: Always turn off the amplifier when changing leads, especially speaker cables.

  • Page 11: Loudspeakers

    OFC types, are not recommended, as they often do not represent value for money. Try to keep cable runs to either speaker of equal length. Your Rega dealer will be able to make up specific lengths of cable for you with plugs already fitted.

  • Page 12: In Use

    This prevents audible clicks being heard through your speakers as you switch on your equipment. A start-up delay has been designed on Rega amplifiers to prevent any damage being done to your speakers when your system is initially switched on.

  • Page 13: Specifications

    01/04/03 12:32 Page 13 Specifications Power output @ 230V or 115V supply voltage. 125 Watts into 8Ω.. 225 Watts into 4Ω.. Input sensitivity for 125W and 225W into 8Ω and 4Ω. Power amplifier input sensitivity = 1.1V @ 24KΩ.

  • Page 14: Troubleshooting

    Replace the fuse if it has mains plug blown? (Try another fuse to check) Check the mains socket If not check is live? (plug in another household fuses or appliance to check) contact an electrician! If problem persists contact your Rega dealer...
  • Page 15 Check the volume is set to the correct level and mute is off If CD is selected check there is a disc in the machine If problem persists, contact your Rega dealer...
  • Page 16 Check that the wires between the speaker are securely connected and the amplifier secure and correctly soldered. If and functioning not, contact your Rega correctly? dealer Check the source Are both channels of the components for faults. Swap selected source connected the output leads.

  • Page 17: Troubleshooting

    Is the amplifier case bottom hot to touch? Let the amplifier cool down, as on page 5 section 1 Use amplifier Still flashing? as normal DC fault or internal mains fuse blown as on page 5 section 2-3 contact your Rega dealer...

  • Page 18: Owners Log

    01/04/03 12:32 Page 18 Owners Log Owner..................Date..................Where Purchased..................................Owner..................Date..................Where Purchased..................................Owner..................Date..................Where Purchased..................................

This manual is also suitable for:

Exon 3
