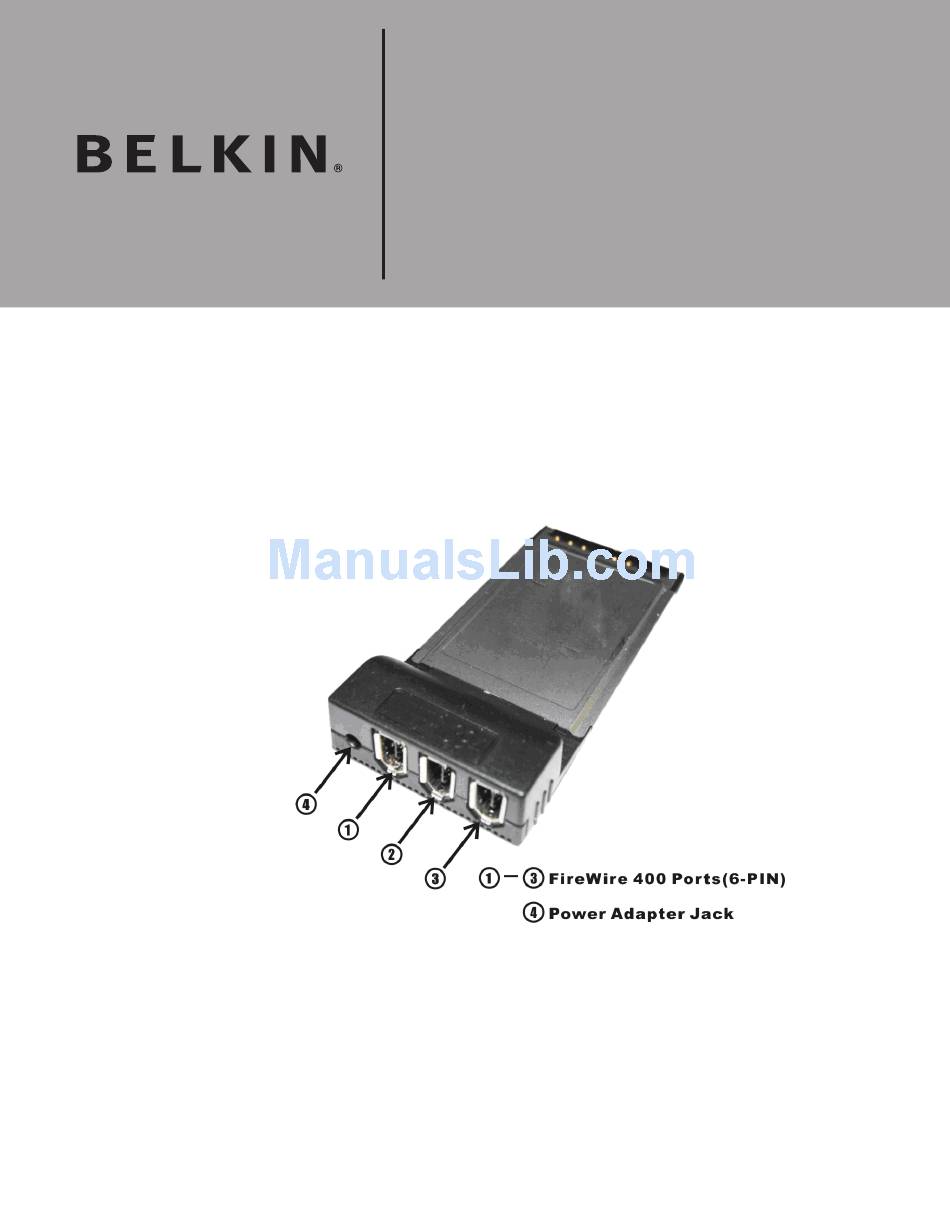

- Page 1 IEEE 1394 PCMCIA CARDBUS User Manual F4U011...
- Page 2 Features and Benefits • Compliant IEEE 1394-1995, 1394a (rev. 1.1) and OHCI Interface Specification 1.0 • PCMCIA CardBus Interface with Power Management • H ot-swapping features allows you to connect/disconnect devices without powering down your system • Supports data transfer rates of 100, 200 and 400 Mbps • Built-in power jack for optional power supply* • Provides three 1394a (6-pin) port for multiple 1394b/1394a devices connections • W orks with various types of 1394a devices including portable hard disk, DV camcorder, digital camera, CD-RW/DVD-ROM drive and other audio/video devices • Supports Windows® 2000, XP/2003 32/64bit, Vista 32/64bit * power supply is not included Bus Interface • 32-bit PCMCIA Type II System Requirements • Windows® 2000/XP/Server 2003/Vista • Available CardBus Type II Slot Connectors • 3 x external IEEE 1394A 6-pin connectors Package Contents • 1 x IEEE 1394 PCMCIA CARDBUS • 1 x User Manual EN-1...
- Page 3 Hardware Description CAUTION: Use only switching power adapter* with following specifications: • S witching power adapter (Optional) DC 12V, 3A P olarity: Outside negative voltage(-) & Inside positive voltage(+) 3.5mm power jack The 3-Port IEEE 1394 CardBus Adapter has sufficient power to support self-powered devices. For bus-powered devices, it needs an external power adapter (DC 12V, 3A) to provide extra power to the devices. * power supply is not included EN-2...
- Page 4 Hardware Installation General instructions for installing the card are provided below. Since the design of system may vary, refer to your system’s reference manual for further information, if needed. 1. Power off your notebook computer. 2. I nsert the IEEE 1394 PCMCIA CARDBUS into the Type II PC Card slot of your notebook computer. Make sure it is inserted all the way in for a solid connection. 3. Power on your notebook computer. Driver Installation Windows® 2000/XP/Vista will automatically detect and install the correct driver for the IEEE 1394 PCMCIA CARDBUS. Make sure that the driver has been installed correctly, right click My Computer, then click Manage, click Device Manager. The Device Manager window opens. Scroll to the IEEE 1394 Bus host controller icon and click on the plus symbol, the VIA OHCI Compliant IEEE 1394 Host Controller should be displayed. EN-3...
