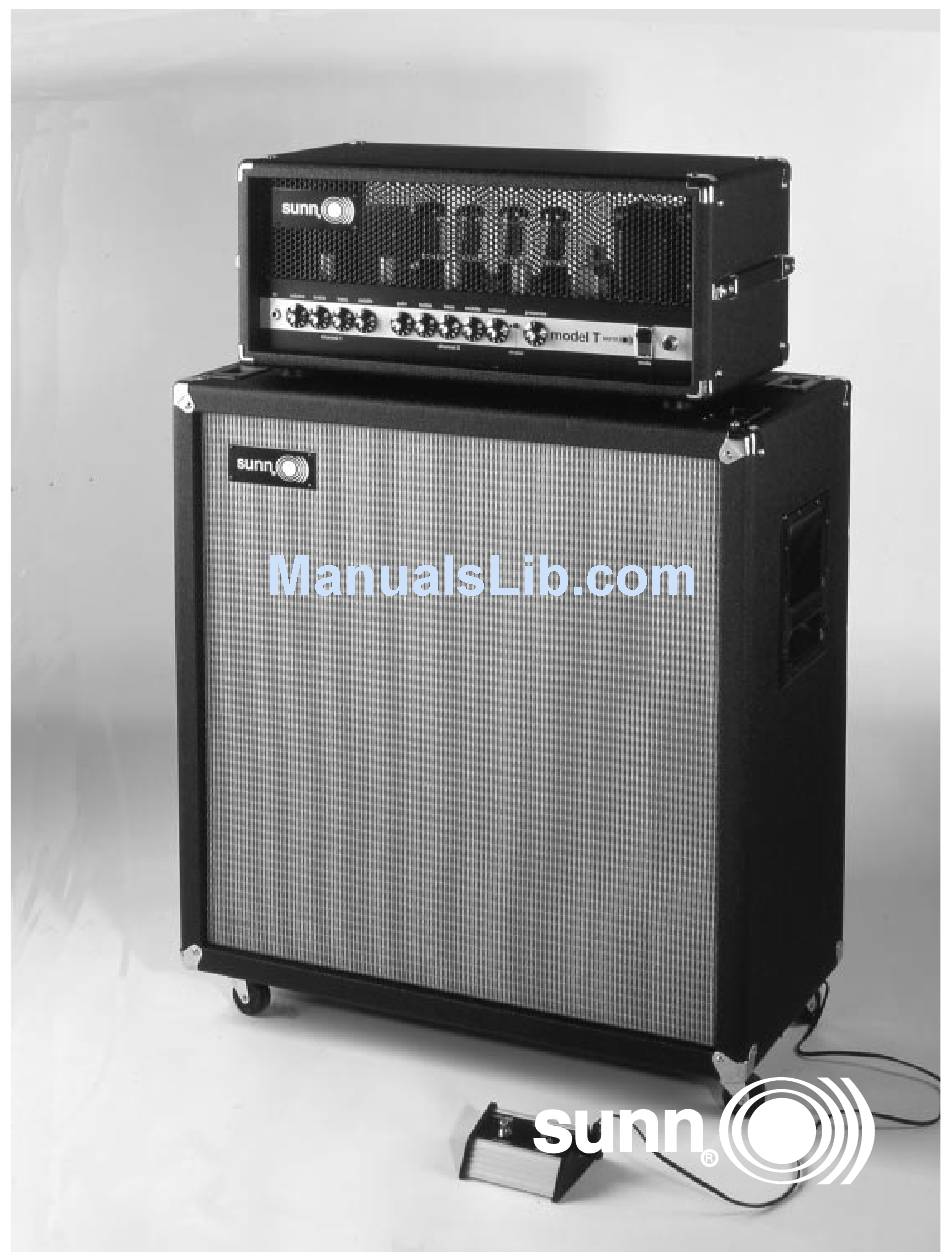

- Page 1 MODEL MODEL Reference and Owner’s Manual for the Sunn Model T Guitar Amplifier...
- Page 2 Thus, the SUNN Musical Equipment Company was born. As the years passed, countless pioneers of rock would rely on SUNN amplifiers to carry the weight. The Who, Moody Blues, Cream, Steppenwolf, Kiss, Rush, Queen and a little music festival in up-state New York all endorsed SUNN equipment.
- Page 3 GENERATE THAT TONE AS ONLY to detail, your new Sunn Model T offers much more TUBES CAN than meets the eye. Each Model T is crafted from the finest components available and assembled at the MAGNETIC INTERFERENCE REDUCING Sunn amplifier factory in Corona, California, USA.
- Page 4 MODEL T FRONT PANEL FUNCTIONS A. IN - Plug your guitar in here. G. TREBLE - Adjusts the amount of increase or decrease in the high frequency content of Channel 2. B. VOLUME - Adjusts the volume level of Channel 1.
- Page 5 M. STANDBY - When the power switch and this illuminate when Channel 1 is active. When this LED switch are ON, your Model T is ready to perform. In illuminates RED, Channel 2 is active. CH SELECT- the STANDBY position, power is supplied ONLY to...
- Page 6 100W useful for larger venues. When the switch is in the club position, the amplifier’s C. LINE CORD - The Model T is equipped with a output is at 25W. grounding type IEC supply cord to reduce the possibility of shock hazard.
- Page 7 Model T RETURN 5. Connect your effects unit to the Model T effects loop (see illustration above). 6. Next, engage the loop by pressing the effects loop button in (item H, page 6).
- Page 8 V7 or V9 tube locations. When the LED glows green, the tubes are operating properly. 1. Turn on your Model T and let it warm up for at least two minutes with the STANDBY switch (item M, page 5) in the...
- Page 9 If your together and increasing your on stage volume. Model T is in the on and ready to play position, make sure a load of at least 4Ω is present. Failure to do so S.
- Page 10 MAIN AMP head control the tone and volume of all the Model OUT jack on the rear of your main Model T to the EXT T’s in your setup regardless of the extension head AMP IN on the next Model T.
- Page 11 • Is the fuse blown? replace the set in your amp with your spare set. (You • Is the speaker(s) properly connected to the do carry spare tubes and fuses, don't you?) amplifier? • Is the amp on standby? When changing the tubes, ALWAYS unplug the •...
- Page 12 230V AC, 50 Hz, 360W 240V AC, 50 Hz, 360W POWER OUTPUT 120W R.M.S. Arena 29W R.M.S. Club 1kHz sine into 8Ω @ 5% T.H.D. Presence @ “1” INPUT IMPEDANCE 1 MΩ TUBES Four 6L6GC Tubes (part #053980), Two 12AX7A Tubes (part #023572),...
