Power Clear 418 ZR/ZE Snowthrower
Model No. 38272—Serial No. 312000001 and Up
Model No. 38282—Serial No. 312000001 and Up
Introduction
This machine is intended to be used by residential
homeowners. It is designed primarily for removing
snow from paved surfaces, such as driveways
and sidewalks, and other surfaces for traffic on
residential or commercial properties. It is not
designed for removing materials other than snow,
nor is it designed for clearing off gravel surfaces.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid injury
and product damage. You are responsible for operating
the product properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer,
or to register your product.
Whenever you need service, genuine Toro parts,
or additional information, contact an Authorized
Service Dealer or Toro Customer Service and have
the model and serial numbers of your product ready.

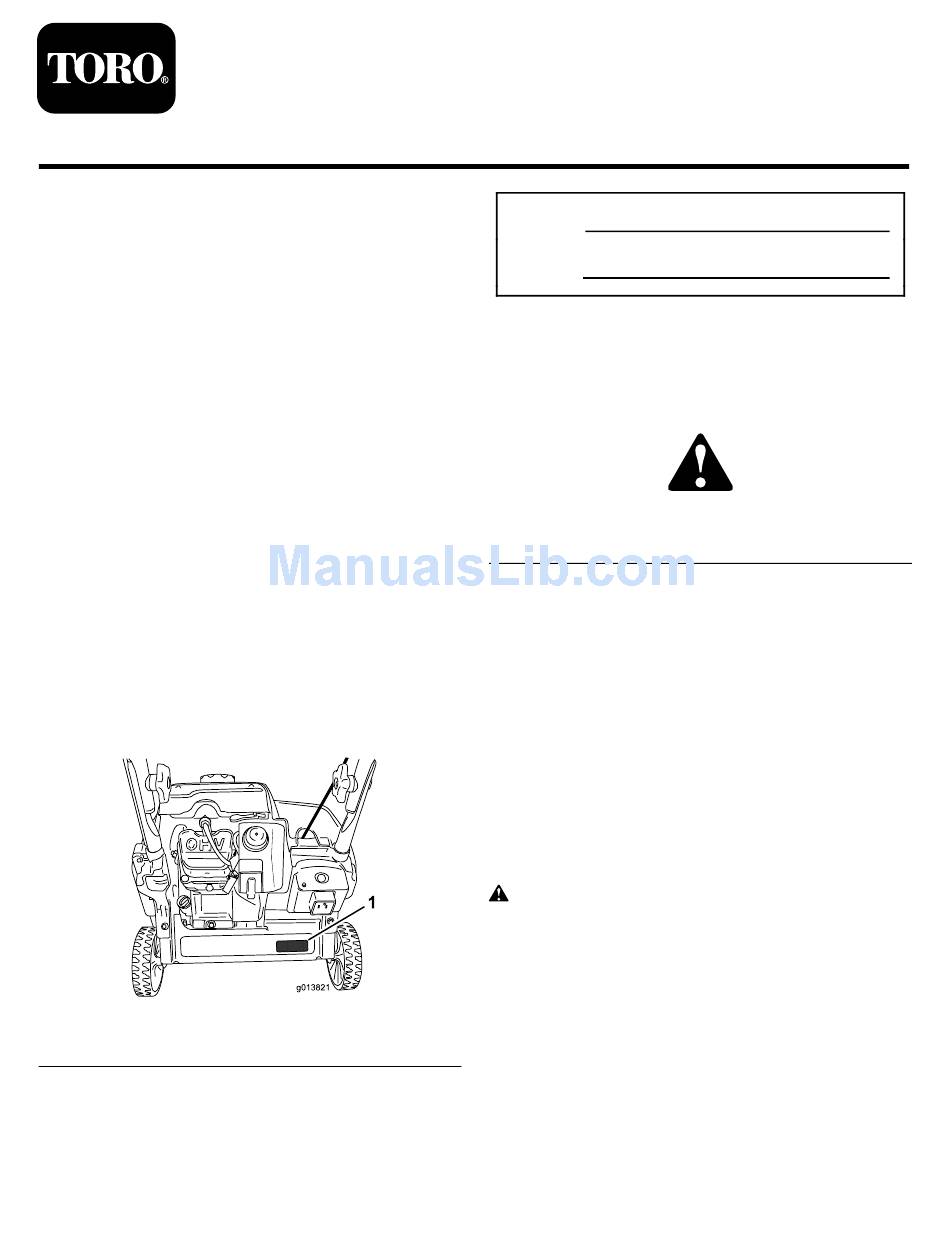

Figure 1 identifies the location of the model and serial
numbers on the product. Write the numbers in the
space provided.
1. Model and serial number location
© 2011—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Figure 1
Register at www.Toro.com.
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury
or death if you do not follow the recommended
precautions.
Figure 2
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
Safety
This machine meets or exceeds the B71.3
specifications of the American National Standards
Institute in effect at the time of production.
Read and understand the contents of this manual
before you start the engine.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Improperly using or maintaining this machine
could result in injury or death. To reduce this
potential, comply with the following safety
instructions.
This machine is capable of injuring hands and feet
and of throwing objects. Failure to observe the
following safety instructions could result in serious
injury.
Form No. 3369-487 Rev B
Operator's Manual
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro 38282
Summary of Contents for Toro 38282
- Page 1 Form No. 3369-487 Rev B Power Clear 418 ZR/ZE Snowthrower Model No. 38272—Serial No. 312000001 and Up Model No. 38282—Serial No. 312000001 and Up Operator's Manual Introduction Model No. This machine is intended to be used by residential Serial No.
- Page 2 Training • Do not attempt to clear snow from a gravel or crushed rock surface. This product is intended for • Read, understand, and follow all instructions on the use only on paved surfaces. machine and in the manual(s) before operating this •...
-
Page 3: Clearing A Clogged Discharge Chute
Toro Snowthrower Safety The following list contains safety information specific to Toro products or other safety information that you must know. • Rotating rotor blades can injure fingers or hands. Stay behind the handles and away from the discharge opening while operating the machine. -
Page 4: Safety And Instructional Decals
Safety and Instructional Decals Important: Safety and instruction decals are located near areas of potential danger. Replace damaged decals. 120-0149 1. Primer 4. Pull key to switch engine switch Off. 2. Push the primer two times 5. Remove key to lock 117-6047 to prime the engine. -
Page 5: Installing The Handle
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Oval-head bolts Install the handle. Curved washers Handle knobs – No parts required Install the recoil starter handle. Discharge chute assembly Screws Washers Install the discharge chute assembly. -
Page 6: Installing The Recoil Starter Handle
Installing the Recoil Starter Handle No Parts Required Figure 5 Procedure 1. Knob 2. Bolt (2), washer (2), and Install the recoil starter handle in the rope guide as locknut (2) shown in Figure 4. Note: Install the bolts from the inside of discharge chute assembly so that the washers and locknuts are on the outside of the chute. -
Page 7: Adjusting The Control Cable
oil, remove the excess oil as directed in Changing the Engine Oil. Note: You may tip the machine forward (handle up) a little to make adding oil easier. Remember to return the machine to the operating position before checking the oil level. Important: Do not tip the machine all the way forward onto its nose, or fuel may leak out of the machine. -
Page 8: Product Overview
6. Ignition key 7. Electric-start button 3. Oil drain plug Note: The belt may slip (squeal) in wet conditions; (model 38282 only) to dry out the drive system, start the rotor and run 4. Choke lever 8. Plug-in for electric start it without a load for 30 seconds. -
Page 9: Operation
Operation you may add fuel stabilizer to newly purchased gasoline to keep it fresh for up to 6 months. Note: Determine the left and right sides of the machine Checking the Engine Oil Level from the normal operating position. Service Interval: Before each use or daily—Check DANGER the engine oil level and add oil if Gasoline is extremely flammable and explosive. -
Page 10: Starting Engine
Starting the Engine Important: Do not tip the machine all the way forward onto its nose, or fuel may leak out of 1. Push the ignition key fully inward to the On position the machine. (Figure 15). Max fill: 12 oz. (0.35 l), type: automotive detergent oil with an API service classification of SJ, SL, or higher. - Page 11 4. Connect an extension cord to a power source and Figure 19 the machine, and push the electric-start button (model 38282 only) (Figure 18), or pull the recoil start handle (Figure 19). Important: Run the electric starter no more than 10 times at intervals of 5 seconds on, then 5 seconds off.
-
Page 12: Engaging/Disengaging Rotor Blades
Engaging the Rotor Blades To engage the rotor blades, hold the control bar against the handle (Figure 20). Figure 22 1. Ignition key Figure 20 Adjusting the Discharge Chute 1. Control bar and Chute Deflector To adjust the discharge chute, move the chute handle as Disengaging the Rotor Blades shown in Figure 23. -
Page 13: Preventing Freeze-Up After Use
(model 38282 Never use your hand to clean out the discharge only) to prevent the recoil starter and/or the electric chute. -
Page 14: Recommended Maintenance Schedule(S)
Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Check the control cable and adjust it if necessary. After the first hour • Check for loose fasteners and tighten them if necessary. •... -
Page 15: Servicing The Spark Plug
Figure 27 replace it if necessary. 1. The oil level is at its 3. The oil level is too Use a Toro spark plug (Part No. 119-1961). maximum. low—add oil to the crankcase. 1. Stop the engine and wait for all moving parts to stop. -
Page 16: Replacing The Drive Belt
Figure 29 1. Center electrode insulator 3. Air gap (not to scale) 2. Side electrode Figure 31 6. Install the spark plug and torque it to 20–22 ft-lb 1. Rotor pulley 5. Idler pulley (27–30 N-m). 2. Idler arm brake 6. -
Page 17: Storing The Machine
Important: Ensure that you install the drive belt so that it sits above the two tabs on the idler arm and below the idler arm brake (Figure 31). 7. Install the drive belt cover with the fasteners that you removed in step 1. Storage Storing the Machine WARNING... - Page 18 Notes:...
-
Page 19: Federal Emission Control Warranty Statement
Air Induction System Where a warrantable condition exists, The Toro Company and its affiliate, — Air cleaner Toro Warranty Company, promise to repair your engine at no cost to you, including diagnosis, parts, and labor. — Intake manifold — Controlled hot air intake system Manufacturer’s Warranty Coverage... -
Page 20: The Toro Total Coverage Guarantee
Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact the Toro importer.
