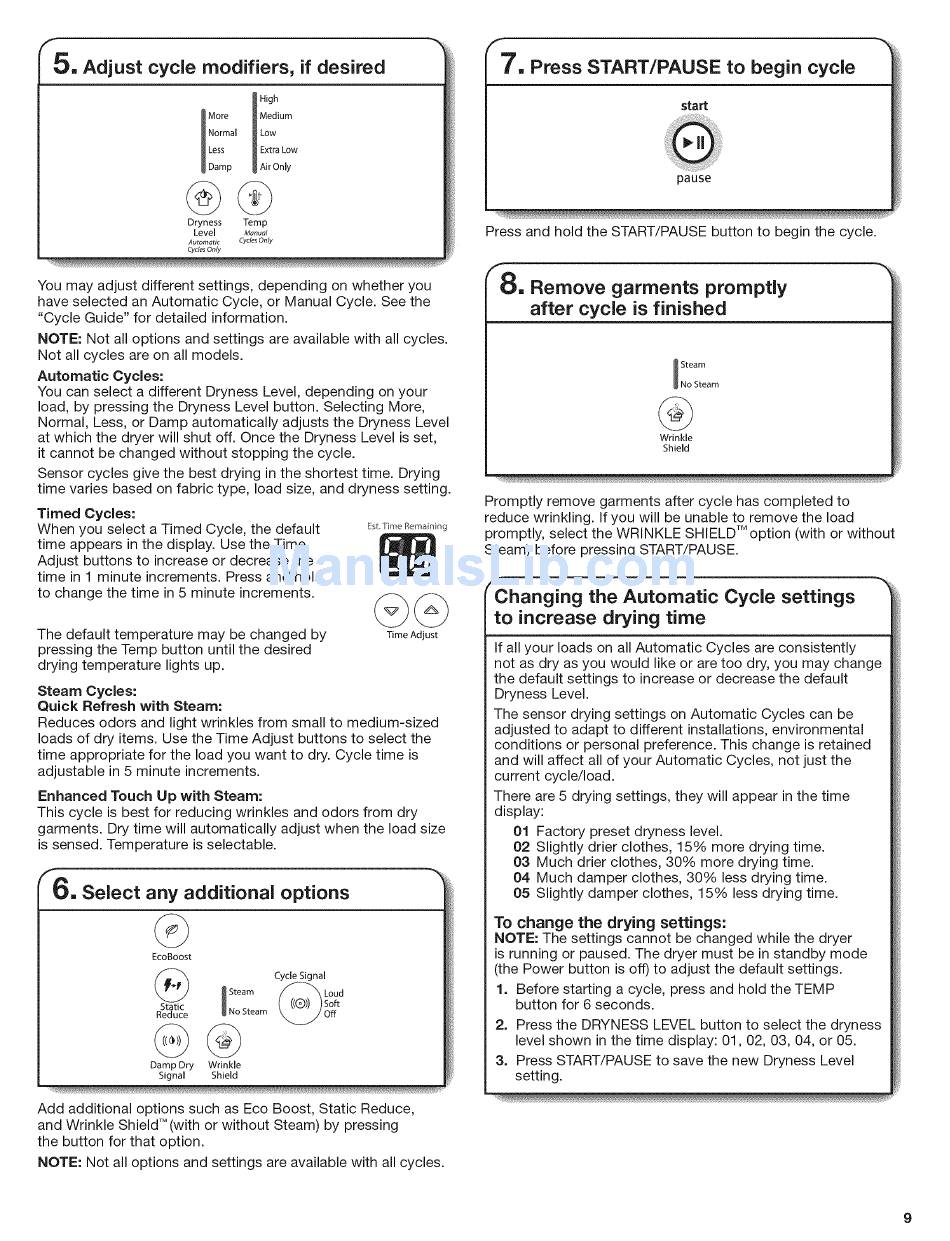

Whirlpool w10562333a Use & Care Manual page 9

Cabrio electronic dryer
Hide thumbs

Advertisement

f
5.
Adjust cycle
modifiers,
if desired
High
_More
_ Medium
IN ....
I
ILow
I Less
! Extra Low
WDamp
_ Air Only
Dryness
Temp
Level
Manuel
Automatic
Cycles Only
Cycles Only
You may adjust different settings, depending on whether you
have selected an Automatic
Cycle, or Manual Cycle. See the
"Cycle Guide" for detailed information.
NOTE: Not all options and settings are available with all cycles.
Not all cycles are on all models.
Automatic
Cycles:
You can select a different Dryness Level, depending on your
load, by pressing the Dryness Level button. Selecting More,
Normal, Less, or Damp automatically
adjusts the Dryness Level
at which the dryer will shut off. Once the Dryness Level is set,
it cannot be changed without stopping the cycle.
Sensor cycles give the best drying in the shortest time. Drying
time varies based on fabric type, load size, and dryness setting.
Timed Cycles:
When you select a Timed Cycle, the default
time appears in the display. Use the Time
Adjust buttons to increase or decrease the
time in 1 minute increments. Press and hold
to change the time in 5 minute increments.
The default temperature
may be changed by
pressing the Temp button until the desired
drying temperature
lights up.
Est, Time
Rema
ning
Time Adjust
Steam Cycles:
Quick Refresh with Steam:
Reduces odors and light wrinkles from small to medium-sized
loads of dry items. Use the Time Adjust buttons to select the
time appropriate for the load you want to dry. Cycle time is
adjustable in 5 minute increments.
Enhanced Touch Up with Steam:
This cycle is best for reducing wrinkles and odors from dry
garments. Dry time will automatically
adjust when the load size
is sensed. Temperature is selectable.
6. Select
any additional
options
EcoBoost
Static
Reduce
Damp Dry
Signal
Cycle Signal
_ Steam
\ Loud
) Soft
No Steam
/ Off
Wdnkle
Shield
Add additional options such as Eco Boost, Static Reduce,
and Wrinkle Shield
TM
(with or without Steam) by pressing
the button for that option.
NOTE: Not all options and settings are available with all cycles.
7. Press START/PAUSE
to begin cycle
start
pause
Press and hold the START/PAUSE
button to begin the cycle.
8.
Remove
garments
promptly
after cycle
is finished
I Steam
No Steam
Wrinkle
Shield
Promptly remove garments after cycle has completed to
reduce wrinkling. If you will be unable to remove the load
promptly, select the WRINKLE SHIELD
TM
option (with or without
Steam) before pressing START/PAUSE.
f
'Changing
the Automatic
Cycle settings
to increase
drying
time
If all your loads on all Automatic
Cycles are consistently
not as dry as you would like or are too dry, you may change
the default settings to increase or decrease the default
Dryness Level.
The sensor drying settings on Automatic
Cycles can be
adjusted to adapt to different installations, environmental
conditions or personal preference. This change is retained
and will affect all of your Automatic
Cycles, not just the
current cycle/load.
There are 5 drying settings, they will appear in the time
display:
01 Factory preset dryness level.
02 Slightly drier clothes, 15% more drying time.
03 Much drier clothes, 30% more drying time.
04 Much damper clothes, 30% less drying time.
05 Slightly damper clothes, 15% less drying time.
To change
the drying
settings:
NOTE: The settings cannot be changed while the dryer
is running or paused. The dryer must be in standby mode
(the Power button is off) to adjust the default settings.
1. Before starting a cycle, press and hold the TEMP
button for 6 seconds.
2. Press the DRYNESS LEVEL button to select the dryness
level shown in the time display: 01,02, 03, 04, or 05.
3. Press START/PAUSE to save the new Dryness Level
setting.
