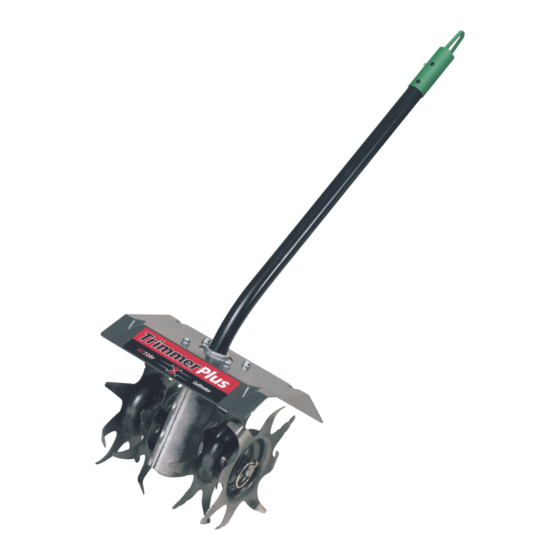

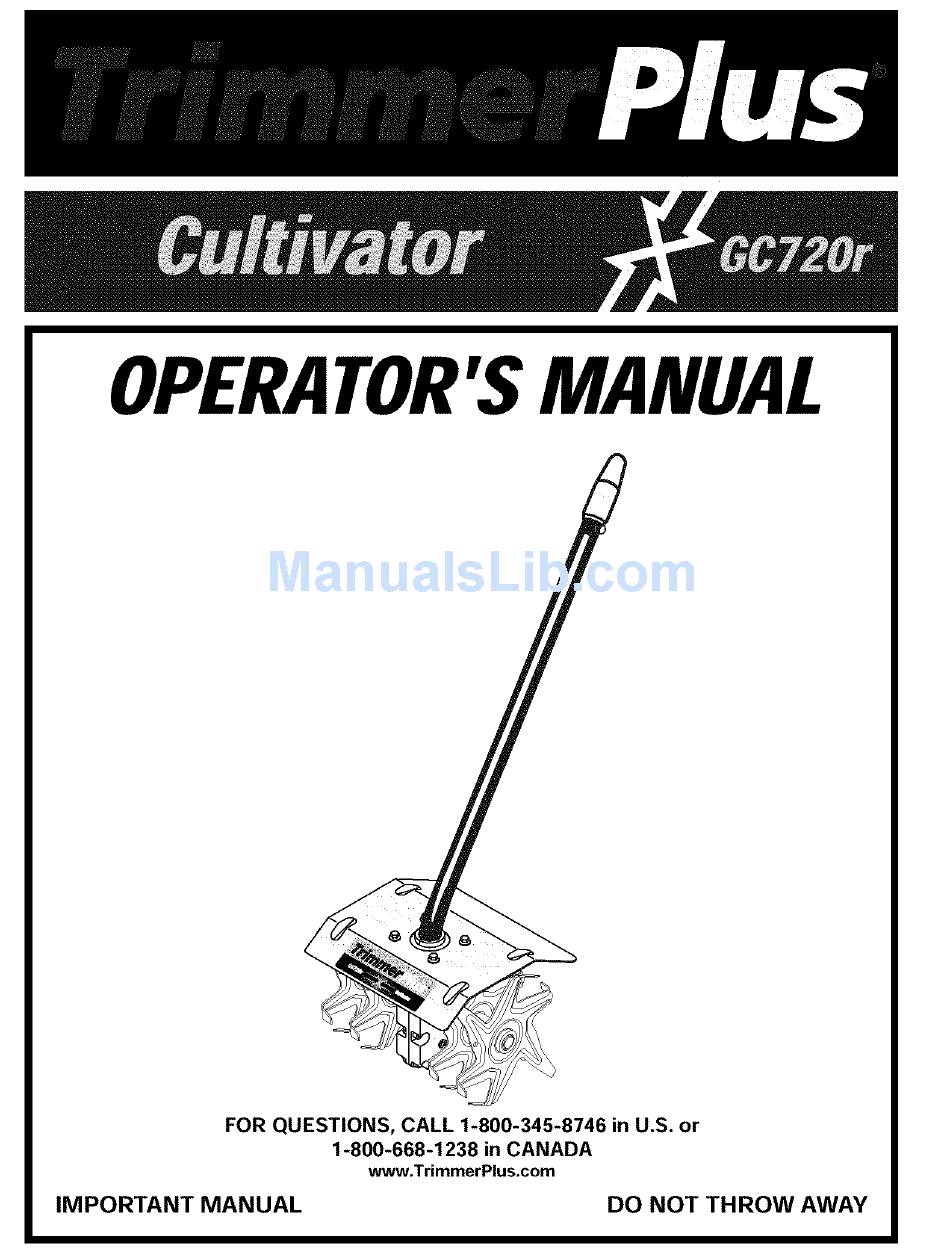

  • Page 1 OPERA TO£'S MANUA L FOR QUESTIONS, CALL 1-800-345-8746 in U.S. or 1-800-668-1238 in CANADA www.TrimmerPlus.com IMPORTANT MANUAL DO NOT THROW AWAY...

  • Page 2: Specifications

    MTD SOUTHWEST INC This unit should consist of the following: SERVICE INFORMATION • GC720r Cultivator Add-On • Hanger Service on this unit both within and after the warranty period should be performed only by an authorized and •...

  • Page 3: Safety Information

    • IMPORTANT SAFETY INFORMATION • READ ALL INSTRUCTIONS • Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke. Keep sparks and open flames away from the area while adding fuel or operating the unit. rules must be followed.

  • Page 4: While Operating

    WHILE OPERATING • Use only genuine MTD replacement parts and accessories for this unit. These are available from • Keep bystanders, especially children and pets, at least your authorized service dealer. Use of any non-MTD 50 ft (15 m) away. parts or accessories could lead to serious injury to the user or damage to the unit, and void your warranty.
  • Page 5 SAFETY AND INTERNATIONAL SYMBOLS This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING • SAFETY ALERT SYMBOL Indicates danger, warning, or caution.
  • Page 6 APPLICATIONS With Cultivator Add-On: • Cultivating sod and light soil. Also for cultivating in garden areas, around trees, etc. Hanger Shaft Housing Tine Guard Tines Gearbox...

  • Page 7: Assembling The Coupler

    ASSEMBLING THE COUPLER NOTE: Aligning the release button with the guide recess will help installation (Fig. 1). The TrimmerPlus® system enables the use of these optional add-ons. Blower/Vacuum ......BV720r Coupler Release Button Hedge Trimmer ......HS720r Primary Hole Edger ........

  • Page 8: Operating Tips

    OPERATING TIPS WARNING: Dress properly to reduce the risk of injury when operating this unit. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy, long pants, boots and gloves. Do not wear short pants, sandals or go barefoot. 1.
  • Page 9 Clevis Pin TINE REMOVAL AND REPLACEMENT All 4 tines should be replaced at the same time because they will wear evenly through normal use. Work on one side at a time. injury, always wear heavy gloves when [_lb ARNING: To prevent serious personal Felt Cushion handling the tines.
  • Page 10 ACCESSORIES/REPLACEMENT PARTS STORAGE • Check unit before storage to be sure the equipment is Tine Assembly (Left Outer and Right Inner) . .791-182729 in safe working condition. Tine Assembly (Left Inner and Right Outer) . .791-182730 • Stop the engine or motor. Tine Fastener Assembly ....
  • Page 11 Operating Weight of Attachment: ............10 Ibs. (4.65 kg) Adjustable Tine Width ..............6" to 9" Steel Tines ................... 8"...

  • Page 12: For Future Reference

    MTD's authorized channels of export distribution MTD reserves the right to change or improve the design of any TrimmerPlus® Product without assuming any obligation MTD SOUTHWEST modify product previously manufactured. 550 N. 54th Street Chandler, AZ 85226 U.S.A.
