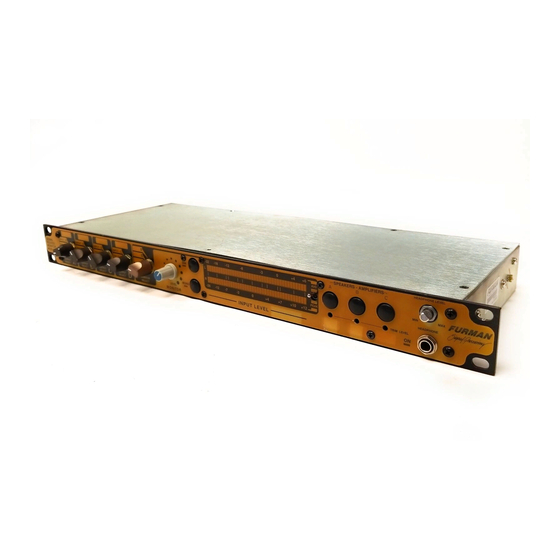

- Page 1 S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R SRM-80A SIG NAL ROUT ER / MONITOR ROUTER / MONITOR SERIES...
- Page 2 Multiple copies can be made si mul ta neous ly through use of the SRM-80A’s four rotary SPEAKER B OUTPU T PA SSI VE S PEAKERS...
- Page 3 S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R STEP-BY-STEP GUIDE TO SET-UP USING SINGLE POWER AMP Please also refer to the “System Set-Up #1” drawing on the facing page. ●...
- Page 4 SOURCE and A inputs, and balanced outputs for channel A output and A, B, and C moni- tor line outputs. INPUTS B through D utilize un bal anced RCA jacks. The SRM-80A allows easy signal routing between these dissimilar jacks.
- Page 5 The SRM-80A also features a DIM switch to allow an easy way to lower the level to the speakers (but not the headphones) tem po - rari ly without disturbing any level controls.
-
Page 6: Safety Information
Page four gives you detailed information on all of the features, controls and connectors. You can set up your SRM-80A fi rst, and read about the controls afterwards or even better, just resume re cord ing and mixing! - Page 7 HEADPHONE LEVEL: Adjusts the listening level of the headphones. REAR PANEL CONTROLS AND CONNECTIONS GROUND LIFT: Allows separation of chassis ground from audio ground and can be used to reduce hum or buzz. Remember, never re move the third prong on the SRM-80A’s AC...
- Page 8 S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R plug. Never use a three-prong to two-prong AC plug adapter to plug your SRM-80A into your wall socket.
- Page 9 B or C output sig nals to your power amp, and the power amp’s speaker output is re turned to the SRM-80A via the FROM AMP OUTPUT binding posts men tioned above. From there, the SRM-80A sends the amplifi ed signal to the passive speakers connected to the SRM-80A’s “B”...
-
Page 10: Limited Warranty
Furman Sound, Inc., having its principal place of business at 1997 South McDowell Blvd., Petaluma, CA 94954 (“Manufacturer”) war- rants its SRM-80A (the “Product”) as follows: Manufacturer warrants to the original Pur- chaser of the Product that the Product sold... - Page 11 S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R facturer with respect to the Product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.
- Page 12 S R M - 8 0 A / E – S I G N A L R O U T E R / M O N I T O R SRM-80A SPECIFICATIONS OPERATING VOLTAGE 90 to 140 VAC ("E" version 180 to 280 VAC)
