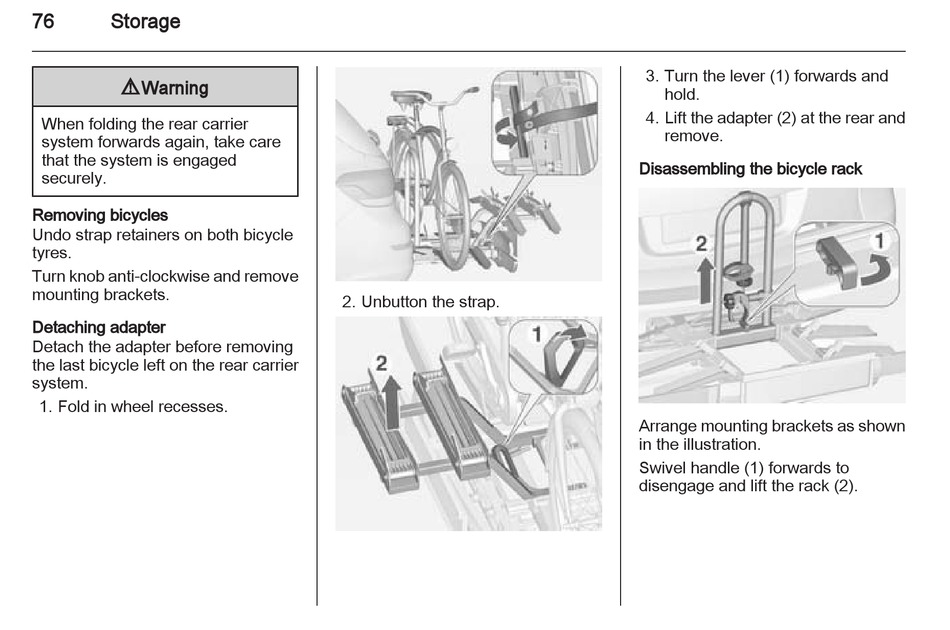

76 Storage
9 Warning
When folding the rear carrier
system forwards again, take care
that the system is engaged
securely.
Removing bicycles
Undo strap retainers on both bicycle
tyres.
Turn knob anti-clockwise and remove
mounting brackets.
Detaching adapter
Detach the adapter before removing
the last bicycle left on the rear carrier
system.
1. Fold in wheel recesses.
2. Unbutton the strap.
3. Turn the lever (1) forwards and
hold.
4. Lift the adapter (2) at the rear and
remove.
Disassembling the bicycle rack
Arrange mounting brackets as shown
in the illustration.
Swivel handle (1) forwards to
disengage and lift the rack (2).
