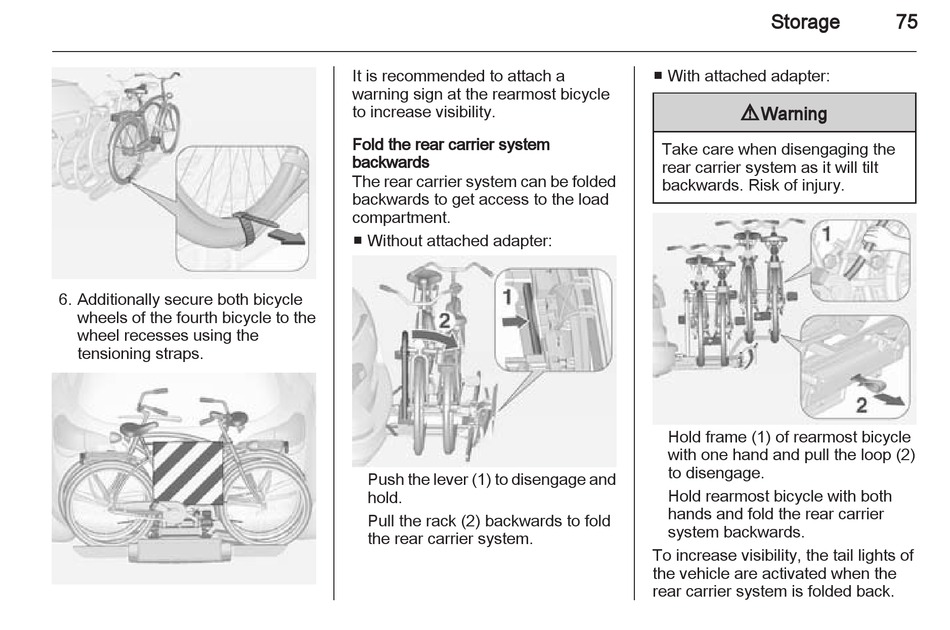

6. Additionally secure both bicycle
wheels of the fourth bicycle to the
wheel recesses using the
tensioning straps.
It is recommended to attach a
warning sign at the rearmost bicycle
to increase visibility.
Fold the rear carrier system
backwards
The rear carrier system can be folded
backwards to get access to the load
compartment.
■ Without attached adapter:
Push the lever (1) to disengage and
hold.
Pull the rack (2) backwards to fold
the rear carrier system.
Storage
■ With attached adapter:
9 Warning
Take care when disengaging the
rear carrier system as it will tilt
backwards. Risk of injury.
Hold frame (1) of rearmost bicycle
with one hand and pull the loop (2)
to disengage.
Hold rearmost bicycle with both
hands and fold the rear carrier
system backwards.
To increase visibility, the tail lights of
the vehicle are activated when the
rear carrier system is folded back.
75
