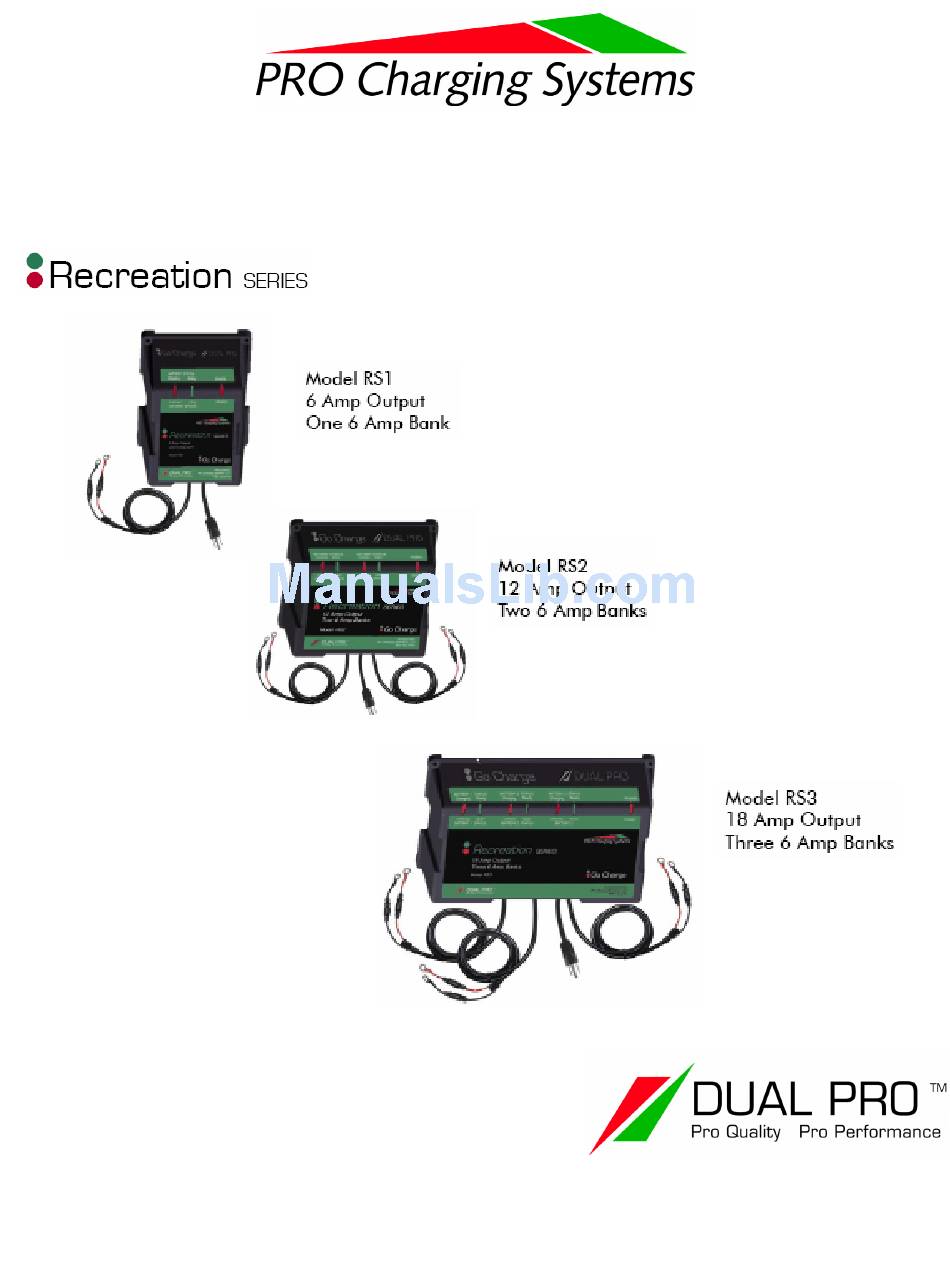

- Page 1 Installation and Operating Instructions (for chargers shown below) For additional information please call our Technical Support Group 800.742.2740 062708 PRO CHARGING SYSTEMS, LLC 1551 Heil Quaker Boulevard, LaVergne, TN 37086-3539...
-
Page 2: Table Of Contents
INSTALLATION AND OPERATING INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGING SYSTEMS: Total Independently charge 12V Model # Description Output batteries in the following systems: Recreation Series One 6 Amp Bank 6 Amps Two 6 Amp Banks 12 Amps 12V, 24V Three 6 Amp Banks 18 Amps 12V, 24V or 36V IMPORTANT NOTICE... -
Page 3: Personal Precautions
When using an extension cord, make sure: 1. That pins on the extension cord plug are the same number, size and shape as those of the charger’s plug; 2. That extension cord meets UL (Underwriters Laboratories, Inc.) acceptance and is in proper operating condition;... -
Page 4: Product Summary
NEVER charge a frozen battery. PREPARING TO CHARGE If it is necessary to remove the battery or batteries to charge, always remove grounded terminal from battery first. Make sure all accessories are off, so as not to cause battery arcing. Be sure the area around any battery is well ventilated while batteries are being charged. -
Page 5: Installation Instructions
Below is an example of the display on a Three output Recreation Series Charger (RS3): INSTALLATION INSTRUCTIONS All PCS battery charging systems are designed to be permanently installed in a well-ventilated area and have no mounting restrictions. Do not make any electrical connections to the power supply (AC) or to a battery (DC) until the installation process has been completed. - Page 6 (-) battery post. See picture below: The charger pictured is a Professional Series Dual Pro, which has two independent 15 amp outputs. Connect a heavy duty UL approved extension cord to the power cord of your charger and then plug the extension cord into a nearby 120VAC GFI protected (Ground Fault Circuit Interrupt) outlet.
-
Page 7: Trouble Shooting
TROUBLE SHOOTING PROBLEM: No LED indicators illuminate on the charger. Solution Sequence: Check the AC power supply from its source through all connecting points up to the charger by using a meter or test light to confirm that current is being delivered to the charger. PROBLEM: The Green (POWER) LED is illuminated, but the Red (CHARGING) LED and the Green (READY) LED are off. -
Page 8: Warranty Information
LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for two years from the date of retail purchase against defective materials and/or workmanship. If such defects should occur, this unit will either be repaired or replaced at the discretion of the manufacturer.
