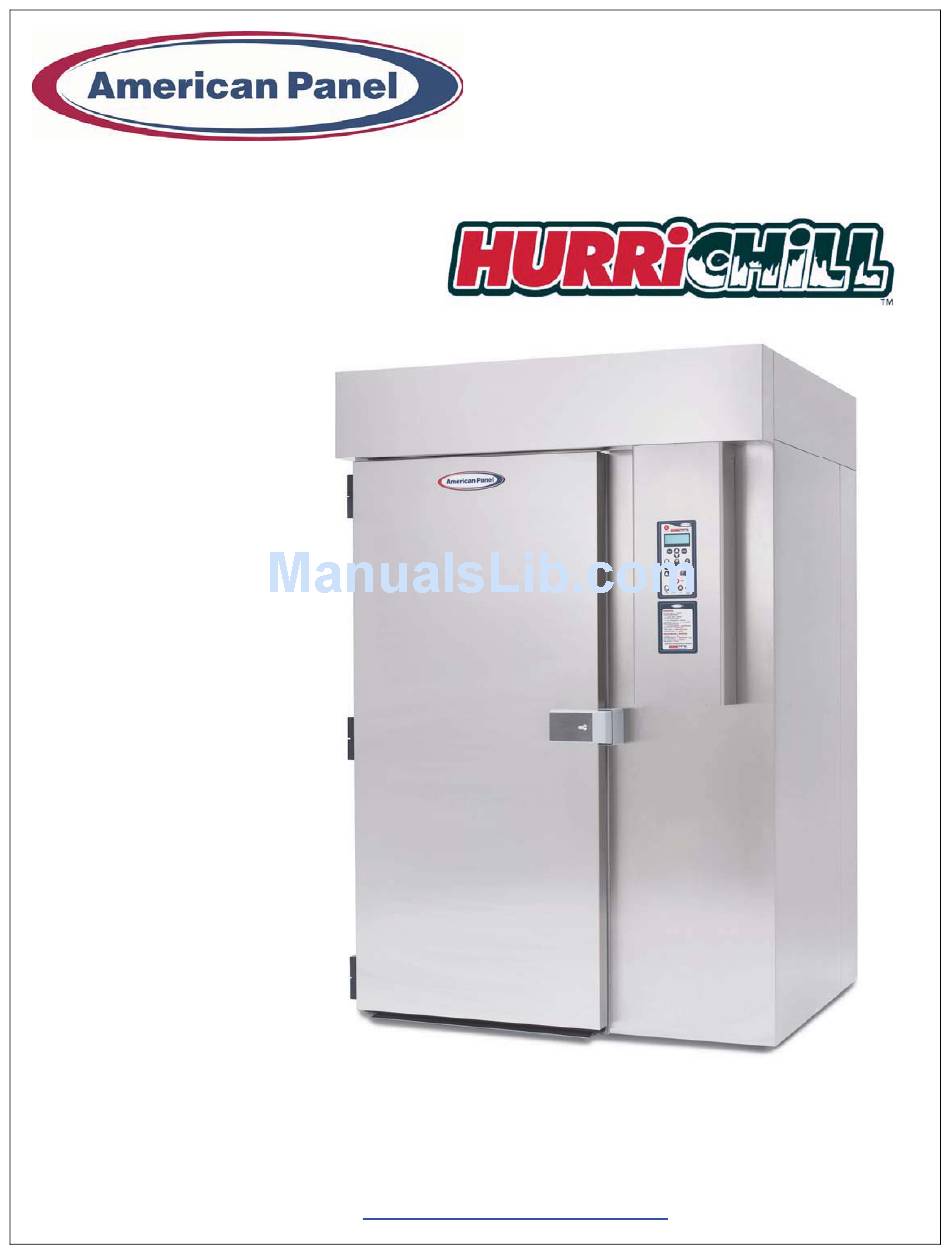

Cooler is Better!
USER'S
MANUAL

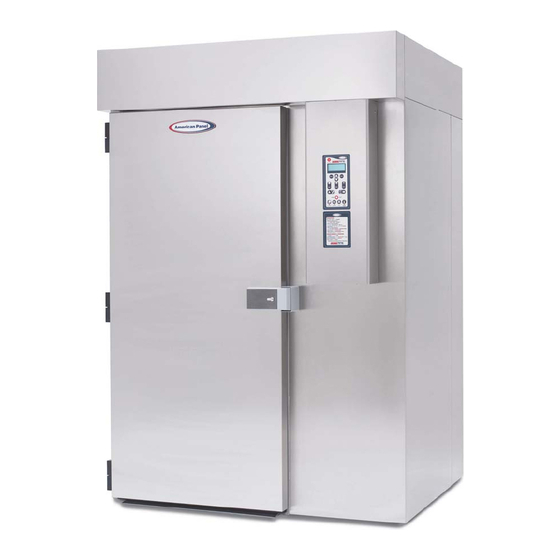

BLAST CHILLERS (SHOCK FREEZERS)
TM
MODEL AP24BC250-3
MODEL AP24BCF300-3
MODEL AP40BC350-3
MODEL AP40BCF450-3
American Panel Corporation
5800 S.E. 78th Street, Ocala, Florida 34472-3412
Phone: (352) 245-7055 Fax: (352) 245-0726
E-mail:
service@americanpanel.com
REV. E
