Kenmore 318201433 Installation Instructions Manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
IMPORTANT INSTALLATION INFORMATION
All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
Minimum distance between cooktop and overhead cabinetry is 30" (76.2 cm).
* 30" (76.2 cm) rain. for unprotected
cabinet and 24" (61 cm) rain. for
cabinet with protected bottom
surface.
Cooktop Dimensions
I
30" Min. *
(76.2 cm)
** Do not obstruct these areas.
Cooktop Cutout Dimensions
D
Air exhaust**
I
C
Fresh air intake**
4" X 8" (10.2 cm x 20.3 cm)
opening at the right rear
to route armored cable
if a panel is present

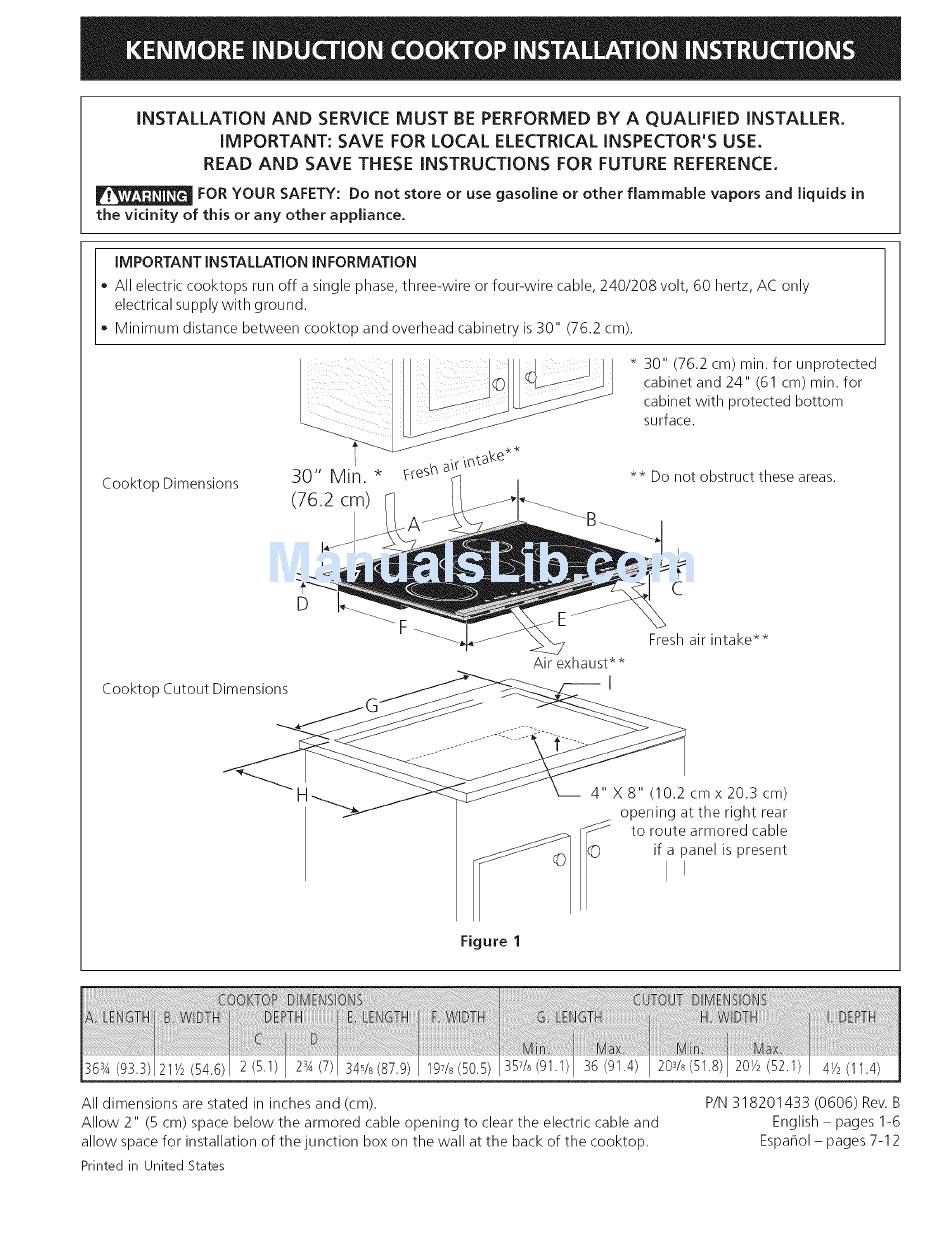

Figure 1
36_A(93.3) 21Y2(54.6)
34s/8(87.9) 197/8(50.5) 357/8(91.1) 36 (91.4) 203/8(51.8) 20Y2(52.1) 4Y2(11.4)
All dimensions are stated in inches and
(cm).
Allow 2" (5 cm) space below the armored cable opening to clear the electric cable and
allow space for installation of the junction box on the wall at the back of the cooktop.
Printed in United States
P/N 318201433 (0606) Rev.B
English - pages 1-6
Espahol - pages 7-I 2
