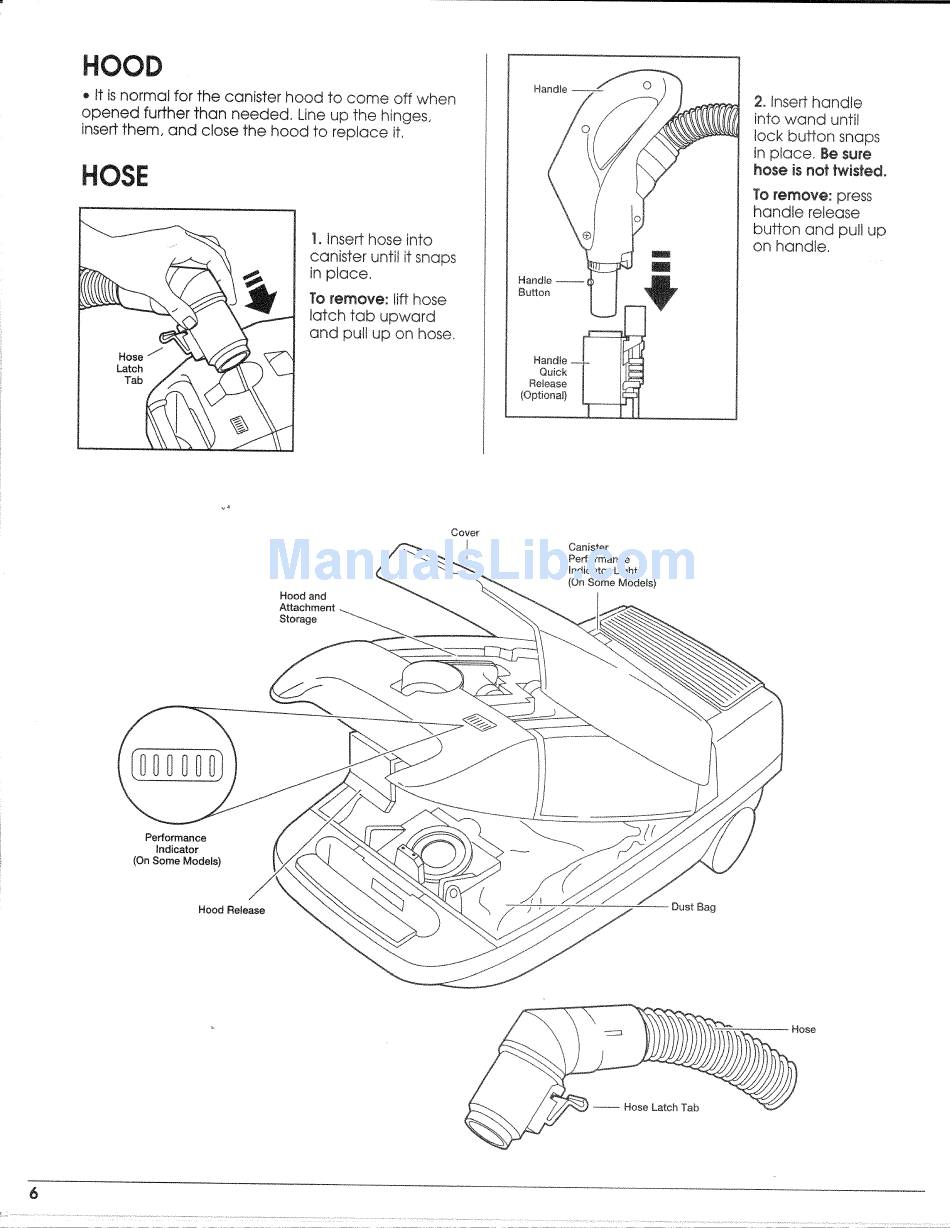

HOOD
o it is normal for the canister hood to come off when
opened further than needed, Line up the hinges,
insert them, and close the hood to replace it,
HOSE
!, Insert hose into
canister until it snaps
in place.
To remove: lift hose
latch tab upward
and putt up on hose,
Handle
Quick
Re{ease
(Optional)
2. Insert handle
into wand until
lock button snaps
in place. Be sure
hose is not twisted.
To remove: press
handle release
button and pull up
on handle.
Performance
Indicator
{On Some Models)
Hood Release
Hood and
Attachment
Storage
Cover
Canister
Performance
Indicator Light
(On Some Mode{s)
Dust Bag
Hose
- Hose Latch Tab
6
