DICE MediaBridge MB-1500 Installation Manual

Multimedia integration kit for selected bmw/mini cooper vehicles
Hide thumbs Also See for MediaBridge MB-1500:
Table of Contents

Advertisement

Quick Links

for select BMW/Mini Cooper vehicles
Installation Guide/User manual

Advertisement

Table of Contents
loading

Related Manuals for DICE MediaBridge MB-1500

Summary of Contents for DICE MediaBridge MB-1500

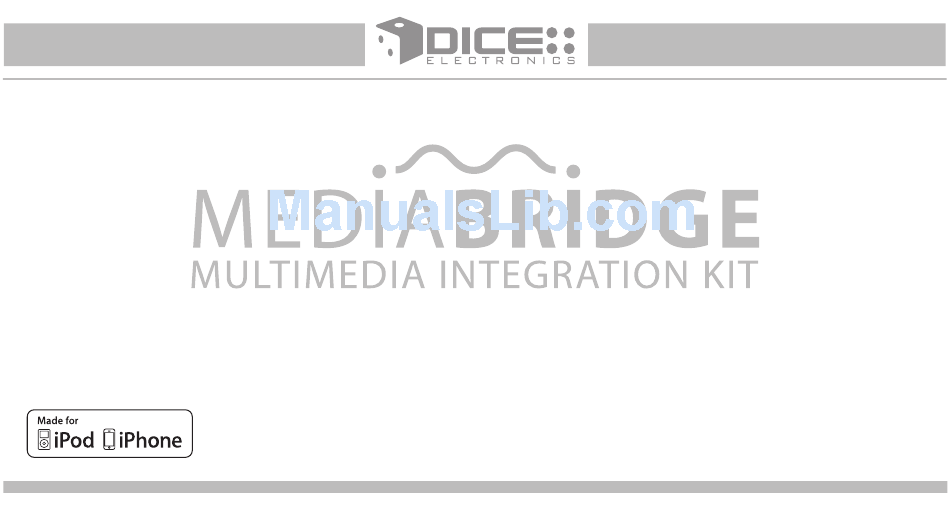

  • Page 1 for select BMW/Mini Cooper vehicles Installation Guide/User manual...
  • Page 2 Copyrights and Trademarks Copyright 2012 DICE Electronics, LLC. The DICE Electronics logo is trademarks of DICE Electronics, LLC. iPod and iPhone are trademarks of Apple, Inc. All Trademarks and Logos are the property of their respective owners. All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents Warning and safety ............4 Controlling the MediaBridge iPod source ......23 Product registration ............5 Controlling the MediaBridge USB memory source .....24 ...........6 Controlling the MediaBridge SIRIUS source ......25 MediaBridge kit content ...........26 DIP switch overview ............7 Bluetooth & MAT configuration DIP switch settings for BMW/Mini ........8 Pairing MediaBridge with cell phone via BT...

  • Page 4: Warning And Safety

    Please read these instructions carefully before proceeding. Failure to follow instructions may result in improper operation or injury. Neither DICE Electronics, LLC. nor Apple Inc., its regional offices, distributors or resellers take any responsibility for any damage or injury as a result of using the integration kit.

  • Page 5: Product Registration

    5. Save the registration/support/warranty sheet in a safe place for future reference. If you are unable to complete the registration via internet, please call DICE Electronics at 1-888-342-3999. Prior to installation make sure the module’s firmware is up to date to ensure compatibility...

  • Page 6: Mediabridge Kit Content

    MediaBridge kit content for select BMW/Mini Cooper vehicles Installation Guide/User manual MediaBridge module MediaBridge User manual Microphone connector extension Optional accessories (sold separately): DSP kit Cradle BMW SAT cable (ACC-BMW-DSP) (DCR-150-USB) For more accessories, visit www.diceelectronics.com...

  • Page 7: Dip Switch Overview

    DIP switches overview The configuration switches located on the MediaBridge module are used to set various operation modes of the interface. Incorrect DIP switch settings may cause the interface to not work properly or to not operate at all. Disconnect the vehicle harness from the module and set the ignition to the off position for 60 seconds after changing the switches then reconnect the module! MediaBridge Module...

  • Page 8: Dip Switch Settings For Bmw/Mini

    DIP switch settings for BMW/Mini The following DIP switch settings are used to configure the MediaBridge module to interface with the various vehicle radios. Before installation, set the DIP switches to the position shown for the corresponding radios. Car configuration switches BMW 4:3 BMW &...

  • Page 9: Supported Ipod Models

    Supported iPod models and firmware version requirements Model Firmware / OS Version Model Firmware / OS Version 1G nano 1.3.1 160 GB classic 2.0.4 iPod 5G 5G nano 1.0.2 2G nano 1.1.3 3G touch iOS 5 iPod classic 1.1.2 iPhone 4 iOS 5 3G nano 1.1.3...

  • Page 10: Note To Installer

    Attention Installer! Please read the following! DICE Electronics strongly recommends that the unit be installed in an easily accessible place! DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET! Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily in the future.

  • Page 11: Connection Diagram

    Connection diagram CD changer cable (3-pin and 6-pin BMW cables) iPod USB thumb drives AUX audio device Sirius SC-C1 SAT tuner Microphone MediaBridge module MENU MediaBridge vehicle connector AUX connector Sirius SC-C1 factory cable USB cable or iPod docking cable Do not connect an iPod dock cable under any circumstance to the SIRIUS module connector! Improper connection can cause permanent damage to iPod/SIRIUS module.

  • Page 12: Connection Diagram For Dsp Option

    Connection diagram for DSP option BMW vehicles with Digital Signal Processing (DSP) amplifiers must use the DSP Kit (PN: ACC-BMW-DSP). To confirm if the vehicle has DSP, check for a bare metal coax cable and a 3-pin connector (for connector locations see page 13).

  • Page 13: Factory Cd Changer Cable Locations

    Factory pre-wired CD changer cable locations DSP Amp 3-pin/6-pin (or coax) connector location 3-Series and Z3 5-Series, 7-Series and X5 Mini...

  • Page 14: Installation

    Installation Note: Installation should only be performed by a qualified professional. Beware of sharp edges to avoid injury and exercise caution when removing trim pieces as they may break. The module should be placed in an accessible location, such as the glove box, consoles, under the front seats or in some cases in the trunk to allow iPod/SIRIUS/AUX cables to be connected.
  • Page 15 4. Connect both 3-pin and 6-pin cables to the BMW Interface Harness. ATTENTION! There are two 3-pin connectors presented in the vehicle. During installation, make sure that the 3-pin connector from the vehicle DOES NOT have a brown wire in the middle! The 3-pin connector of the phone pre-wiring looks identical to the 3-pin connector of the CD changer pre-wiring.
  • Page 16 5. Route the interface cable to the front of the vehicle. Fold down rear seats (if applicable) and route the extension cable through the rear seat bottom cushion. Route the remainder of the interface cable (ie. under the door sill or under the driver’s seat) to a location where the module can be easily accessed in the future.

  • Page 17: Ipod Content Browsing

    iPod content browsing Playlist By default, the interface creates a Playlist having a name that is the same as the name of the iPod. This Playlist is the very first on the list of Playlists Artist shown while browsing in Playlist mode. This Playlist contains all the songs on the iPod.

  • Page 18: Ipod Locked/Unlocked Settings And Features

    iPod locked/unlocked Settings and Features Radio control Limited iPod control Before connecting the iPod to the Before connecting the iPod to the MediaBridge module, turn the hold switch MediaBridge module, turn the hold switch ON to fully control and browse the songs OFF to fully control and browse the songs from the radio.

  • Page 19: Basic Operation

    To cycle between these sources, use the next/previous TRACK buttons within the first 5 seconds of accessing the MediaBridge as the audio source while in DISC 1. *This source require additional parts/accessories/service from DICE and/or third parties. MediaBridge Interface settings (within first 5 seconds of accessing the MediaBridge as the audio source): Select DISC 1 to apply settings and resume audio playback.

  • Page 20: Operating The Mediabridge Unit From Select Radios

    Operating the MediaBridge from select BMW and Mini radios NOTE: 99-01 3-Series and Z3 will Illustration showing BMW Business CD Radio require double clicking buttons when Press the MODE button text is displayed. to access MediaBridge as the audio source SC MODE Song * Artist *Album CDC 1...
  • Page 21 Illustration showing BMW 16:9 Navigation radio Selected iPod Shows whether Bluetooth enabled mode (Song, Current source phone is paired. Playlist, Artist, BT - = Not paired Use DISC buttons 1-6 (iPod, Sirius, Song title Artist to change between etc...) AUX) BT + = Paired DISC modes and to recall SIRIUS stations.
  • Page 22 Turn DIAL for next/previous track. Illustration showing Mini Navigation radio Press DIAL to store SIRIUS sta- You must have the correct display mode tion presets (MediaBridge SIRIUS selected for proper source mode; see page 24). operation (see page 19, DISC 5). On Mini Navigation radios, the RND button is used to toggle be- tween Menu and Text modes.

  • Page 23: Controlling The Mediabridge Ipod Source

    Icon legends CHANGE SONGS Press button repeatedly Press button DISC 1 TRACK Press and hold button Turn dial CHANGE PLAYLIST DISC 2 TRACK Controlling the MediaBridge iPod Source CHANGE ARTIST DISC 3 TRACK Use DISC 1-6 to enter browsing modes (SONG, PLAYLIST, ARTIST, ALBUM, PODCAST and AUDIO BOOK).

  • Page 24: Controlling The Mediabridge Usb Memory Source

    Controlling the MediaBridge USB memory source CHANGE SONGS • Select DISC 1, then use the track buttons to change from song to DISC 1 TRACK song. CHANGE FOLDER DISC 2 • Select DISC 2-6 to browse Folders and use the track buttons to TRACK navigate through the folders on your USB flash drive.

  • Page 25: Controlling The Mediabridge Sirius Source

    Controlling the MediaBridge SIRIUS source The MediaBridge integration kit features SIRIUS connectivity (requires additional tuner). Use the TRACK buttons or jog DIAL to browse between subscribed channels. To store a subscribed channel to memory: • Single line radio: Tune to desired station. Press RANDOM button and select which DISC button (preset 1-6) to save to. Press RANDOM button once more to store the station.

  • Page 26: Bluetooth & Mat Configuration

    Bluetooth & MAT (Music Announcer Technology) configuration To alter voice announcement and Bluetooth pairing settings select Bluetooth as your audio source, press the DISC button that corresponds to the feature you want to configure, and then use Track to browse through configuration options: •...

  • Page 27: Answering / Making A Phone Call

    Pairing MediaBridge with your cell phone via Bluetooth 1. Turn on the Bluetooth feature on your cell phone. 2. Select MediaBridge as your audio source from your radio, then select Bluetooth mode. 3. Search device from your cell phone. 4. Select MediaBridge from device list and enter password “0000” to connect. Note: MediaBridge is only discoverable for Bluetooth pairing for the first 60 seconds after selecting Bluetooth mode within the MediaBridge.

  • Page 28: Accessing The Auxiliary Input

    Accessing the auxiliary input CHANGE VOLUME SETTING DISC 1 • An auxiliary audio device can be connected to the MediaBridge TRACK unit through it’s 1/8” headphone jack. CHANGE BASS SETTING DISC 2 TRACK • In AUX mode, music is controlled only through the auxiliary audio device.

  • Page 29: Internet Radio Application Support

    Internet Radio Application support (iPhone/iPod touch) This kit includes support for internet radio streaming apps available on the iTunes® Store. Thousands of stations can be streamed through data connections. Supported apps include Livio Car Internet Radio, Pandora, iHeart Radio and more. Supported features such as text display on screen, and next/previous track functions will vary by app.

  • Page 30: Controlling Internet Radio Apps

    Controlling Internet Radio Apps NOTE: The following features may not be supported by all apps. For demonstration purposes the following examples will show the features for the Livio Car Internet Radio app. The app must be active on the screen of the device. To do so, simply tap the app’s icon and it will load.

  • Page 31: Text Display From The Internet Radio App

    If your listening experience is interrupted by a call, under most conditions, the app will resume playback at the end of the call. Music playback apps running on your iPhone are sent to background automatically when the home button of the phone is pressed, but the music playback itself is not stopped.

  • Page 32: Terminating The Internet Radio App

    Terminate (kill) the App If you need to terminate (kill) the app please follow the steps below: 1. Double-tap on the home button of the iPhone to bring up the list of running apps. If you don’t see the app’s icon right away, swipe the screen left or right to locate it.

  • Page 33: Firmware Update

    Updating Firmware (Mac OS illustrated) MediaBridge MBR 1500 ABP 2.01 Connect module via mini USB Device specifications and update selection License Agreement (click Agree to proceed) Product registration notification Firmware update progress Module updated successfully! The above screen shots are for illustration purposes only.

  • Page 34: Troubleshooting

    Troubleshooting Problem Solution Radio/NAV display only shows DISC Make sure DIP switch settings are correctly set for text display (refer to page and track number and there is no iPod 8 for DIP switch settings). control. Make sure DIP switch settings are correctly set for text display (refer to page No text display on radio.
  • Page 35 Problem Solution Ensure the cable connecting the SIRIUS tuner is securely connected to the Sirius tuner can’t be selected. correct receptacle on the MediaBridge module. Refer to page 19 for cycling through MediaBridge audio sources. The iPod has reached the end of a selection. Go ahead and browse for Why does the radio display show another selection.
  • Page 36 Problem Solution When the MediaBridge is playing iPod music in UNLOCKED mode, browsing Why does the message “iPod mode information isn’t available so the “iPod UNLOCKED” notification is UNLOCKED” display on screen? shown. To view information associated with browsing modes, ensure the hold button of the iPod is set before connecting it to the MediaBridge.
  • Page 37 Unauthorized reproduction or reverse engineering is strictly prohibited! Intellectual property included is distributed under specific license agreement with respective owners and is licensed only, not sold. No warranty, explicit or implied, is stated. Neither DICE Electronics, LLC., nor any of its agents, distributors, dealers or vendors shall be liable for damages.

  • Page 38: Warranty

    Support and Warranty If you experience any problems or need help, please contact you local dealer or call DICE Electronics, LLC. At 888-342-3999 or visit us at http://diceelectronics.com/product-support. Products carry a 1 year limited warranty that protects you from defects in material and workmanship of products sold by DICE Electronics or its authorized agents, distributors and dealers.
  • Page 39 Installation notes:...
  • Page 40 BMW/Mini Cooper compatible integration for iPod/iPhone, Internet Apps, Bluetooth, SIRIUS and AUX. www.diceelectronics.com DICE-MB-BMW-0312...
