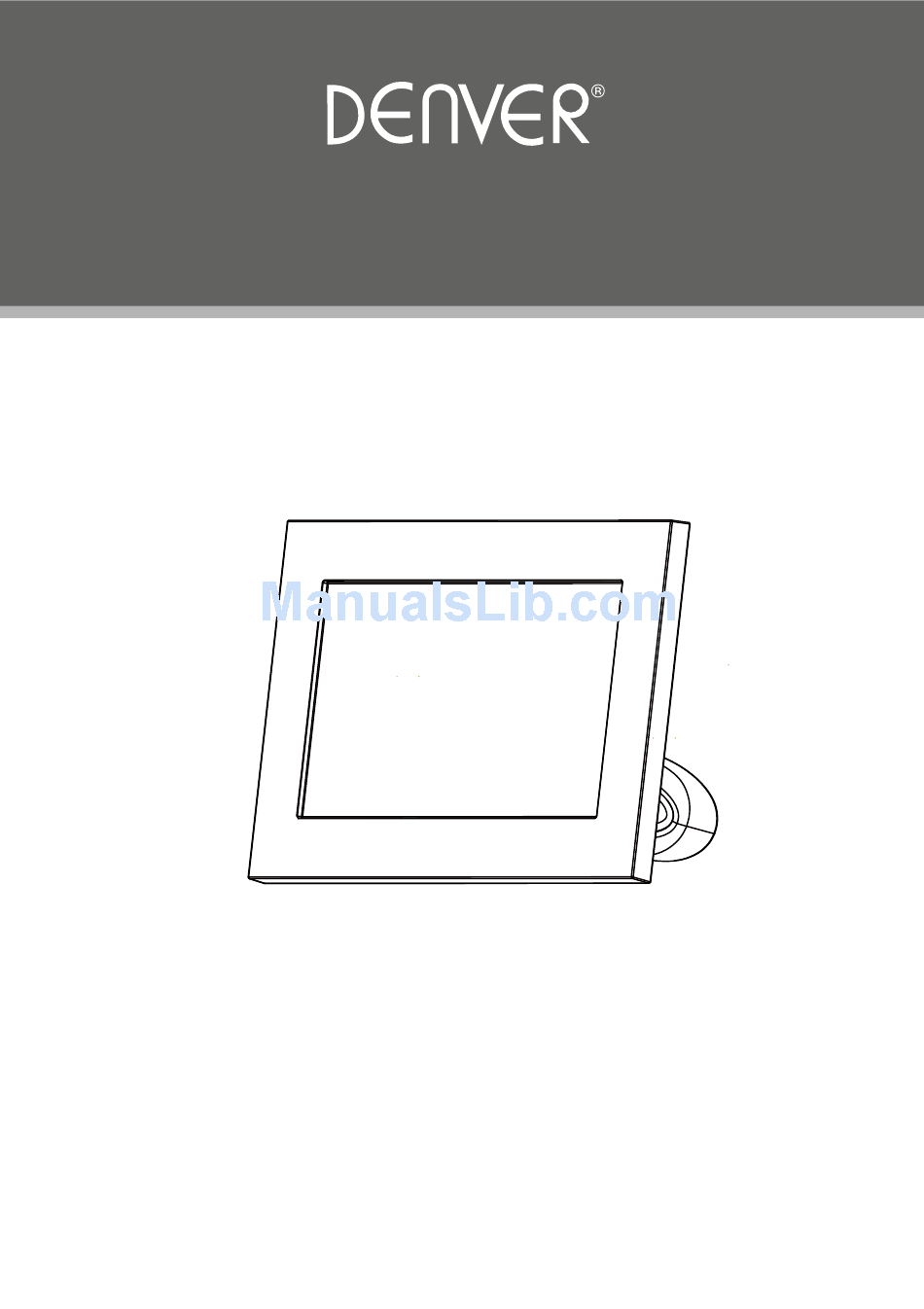

- Page 1 7” Widescreen Color TFT LCD Digital Photo Frame DPF-746 INSTRUCTION MANUAL Please read this manual carefully before operation...
- Page 2 DPF-746...
- Page 3 WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. CAUTION: To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.
- Page 7 PRECAUTIONS............................2 IMPORTANT SAFETY INSTRUCTION.....................4 PACKAGE CONTENTS..........................8 UNIT VIEW..............................9 Function Buttons...........................9 ATTACHING THE BRACKET........................10 POWER CONNECTION...........................11 GETTING STARTED..........................12 Installing a Memory Card........................12 Turning Your Photo Frame ON/OFF....................12 MENU Interface...........................12 Photo..............................13 Favourite.............................13 Edit..............................13 Auto-Power............................13 CLOCK MENU............................14 Clock..............................14 Calendar.............................14 SETUP MENU............................15 Setup..............................15 TROUBLE SHOOTING..........................16 SPECIFICATION...........................17...
- Page 8 Please make sure that the items shown below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. a Main Unit b Adaptor c User's Guide...
-
Page 9: Unit View
UNIT VIEW Function Buttons 1. TFT Display 2. ENTER Press and hold the button to turn on/ off the unit. While working with the menu, press the button to confirm the menu option. In the SlideShow mode, press the button to pause the playback. 3. -
Page 10: Attaching The Bracket
ATTACHING THE BRACKET Attach the Bracket Match the bracket to the bracket jack on the bottom of the cabinet, push to the arrow direction to lock it in place. To release the bracket, pull to the opposite direction. The photo frame can stand in either the upstanding orientation or the landscape orientation depending on your own choice. -
Page 11: Power Connection
POWER CONNECTION Power Connection • Connect one end of the supplied adaptor to the unit's power jack on the unit bottom cabinet and the other end to the wall outlet with AC100-240 V. • Upon being powered, the unit displays the standard logo. But if there is a playback source already in the memory location, the unit would start playback automatically. -
Page 12: Getting Started
GETTING STARTED Installing a Memory Card Y o ur digital photo frame is compatible with the following memory cards: • Secure Digital Card (SD) • Multimedia Card (MMC) • MS Card(Optional) Insert the memory card with the label side facing yourself. Do not force the memory card into the slot. - Page 13 GETTING STARTED Photo Upon entering the Photo menu, the screen displays the playback source: USB, SD/MMC, MS. Use the left/right button to select the playback source.The icon of the inserted playback source will be highlighted, then press ENTER to playback. Favourite You can save your favourite pictures and view them through this option.
-
Page 14: Clock Menu
CLOCK MENU Clock Clock Setting Option Display To display the Clock, Analog Clock or Clock&Calender Time Format To select the time format:12 Hour or 24 Hour, the default setting is 12Hour Set Time Use the left/right button to select the time, then use up/down button to select the desired time Use the left/right button to select the data, then use up/down button to select Set Data... -
Page 15: Setup Menu
SETUP MENU Setup You can select the Setup menu in the main menu, or press and hold MENU button to enter the Setup menu. Setup Menu Default Option Description Zoom pictures. Press and hold MENU button to enter Setup menu, set ZOOM Zoom option as on, then press MENU button again to exit from Setup menu, now you can repeatedly press ENTER button to zoom pictures. -
Page 16: Troubleshooting
TROUBLE SHOOTING The player does not turn on. • Make sure the unit has been powered on properly. • Ensure that the power cord has been properly connected to the power outlet. I cannot select a memory card. • Ensure that a memory card has been installed. •... -
Page 17: Specification
All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. ALL RIGHT RESERVED, COPYRIGHT DENVER ELECTRONICS A/S, www.denver-electronics.com...
