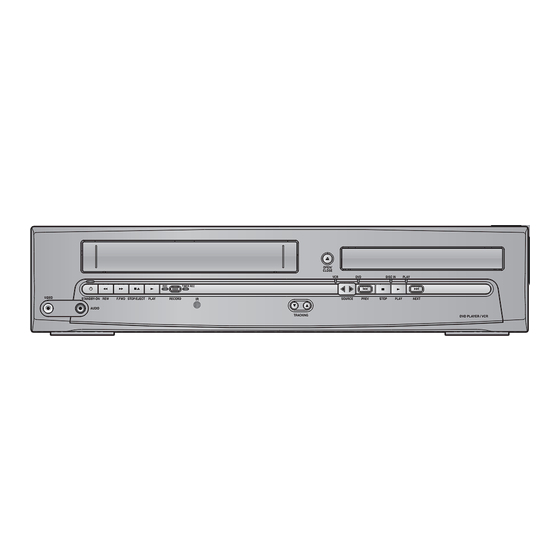

- Page 1 Owner’s Manual Manual del Usuario DVD3315V DVD/CD Player with Video Cassette Recorder VIDEO STANDBY-ON REW F.FWD STOP/EJECT PLAY AUDIO © 2009 Funai Electric Co., Ltd. OPEN/ CLOSE TIMER REC RECORD SOURCE PREV TRACKING DISC IN PLAY STOP PLAY NEXT DVD PLAYER / VCR...
-
Page 2: Precautions
The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN... - Page 3 CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. FCC WARNING This apparatus may generate or use radio frequency energy.
-
Page 4: Table Of Contents
Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law. -
Page 5: About Cassette Tapes And Discs
About Cassette Tapes and Discs Playable Media DVD- DVD-RW Media Type VIDEO Logo Symbols used in this manual Recorded Signal Unplayable Disc Caution: Never play the following discs. • DVD-RAM • DVD with region codes other than 1 or ALL •... -
Page 6: Function Overview
Function Overview Remote Control Button names described in the Owner’s Manual The instructions in this manual rest primarily on the premise that you will operate on the remote control (Please be informed that some operations can only be made on the front panel of the unit). STANDBY-ON SPEED TIMER SET... - Page 7 14. SETUP p.23 DVD mode: • Press to call up the DVD menu. Pulse para visualizar el menú de DVD. VCR mode: • Press to call up the VCR menu. Pulse para visualizar el menú de VCR. 15. ZOOM (DVD) p.16 •...
-
Page 8: Front Panel
Front Panel VIDEO STANDBY-ON REW F.FWD STOP/EJECT PLAY AUDIO 13 14 15 L2 input jacks 1. STANDBY-ONy p.14 • Press to turn on / off the unit. 2. Power on indicator • Lights up when the unit is turned on. 3. -
Page 9: Rear Panel
Rear Panel 1. DVD/VCR AUDIO OUT jack • Connect an RCA audio cable from here to the audio input jack of your television or audio device. Standard connection for DVD/VCR use. 2. VCR AUDIO IN jack p.22 • Connect an RCA audio cable from the audio output jack of your camcorder, VCR, etc. -
Page 10: Connections
Connections Connection to a TV If Your TV Has Antenna in Jack Only If Your TV Has Antenna in Jack Only Before connecting, make sure the powers of the devices are turned off. this unit DIGITAL AUDIO OUT To audio R output jack COAXIAL To video... - Page 11 After connecting to your TV: You will need to switch to video input on your TV. This is usually marked TV/VIDEO, INPUT or AUX. Please refer to your TV’s owner’s manual for details. Input modes for common TV brands: Listed below are inputs for common brand name TV’s. Admiral: Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93...
-
Page 12: Connection To An Audio System
Connection to an Audio System Playing Analog Audio Playing Analog Audio analog audio stereo system input jacks To audio L input jack (White) (White) (White) Supplied cables used in this connection are as follows: • RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store. -
Page 13: Initial Setups
Initial Setups Turning on Unit for the First Time Press first. Please note: most instructions in this manual refer to remote control use. Be sure your TV’s input is set to VIDEO. (Name may vary with TV manufacturer. See your TV manual for details.) STANDBY-ON Press... -
Page 14: Basic Operations
For VCR Playback Insert a cassette tape so that the unit will be turned on automatically. Inserte un casete para que la unidad se encienda automáticamente. VIDEO VIDEO • If the protection tab has removed, playback will start automatically. Press to switch to the VCR mode. -
Page 15: Hint For Disc Playback
Hint for Disc Playback The contents of DVD are generally divided into “titles”. Titles may be further subdivided into “chapters”. The audio CD contains “track” and CD-RW/-R with MP3 contains “file”, which may be in a “folder”. DVD-video title 1 chapter 1 chapter 2 chapter 1... -
Page 16: Advanced Playback
Disc Menu DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Press first. Some discs contain menus which allow you to customize DVD playback. Use [K / L / s / B] to select an item, then press [OK] (or [PLAY B]). Calling Up a Menu Screen During Playback DVD-Video DVD-Video DVD-Video... -
Page 17: Index Search
• To play back a double-digit track, press the track number directly (e.g. for track 14, press [1], [4] and [OK]). • To play back a triple-digit track, press the track number directly for MP3. (e.g. for track 114, press [1], [1], [4] and [OK]). -
Page 18: Programmed Playback
Programmed Playback You can change the playback order of chapters / tracks / files. Audio Audio CD DVD-Video DVD-Video DVD-Video DVD-Video DVD-Video Audio Audio CD Audio CD Press 1) During playback, press [MODE] twice when operating audio CD or MP3. During playback, press [MODE] three times when operating DVD. -
Page 19: Subtitle Language And Audio Language
2) Use [s / B] to select the desired sound mode. sound mode suitable for setting stereophonic audio JAZZ: sound mode suitable for jazz music ROCK: sound mode suitable for rock music POP: sound mode suitable for pop music CLASSIC: sound mode suitable for classic music OFF: no effects (original sound) 3) Press [RETURN] to exit. -
Page 20: Recording
This unit has no tuner system so it cannot receive TV broadcasts without external tuner or such devices. Note: • You can also set the external tuner for timer recording. Refer to “Satellite Link” on page 22. • You CANNOT dub a DVD to a video cassette tape. •... -
Page 21: Timer Recording
Timer Recording Press first. SETUP Press , use to select “TIMER PROGRAMMING”. Then, press to go to next step. - M E N U - B TIMER PROGRAMMING SATELLITE LINK AUTO REPEAT [OFF] CLOCK SET LANGUAGE SELECT to select an empty program number. -
Page 22: Satellite Link
Satellite Link You can set the unit to start recording whenever it detects a video signal from the external tuner. Preparing for the Satellite Link: • Only L1 (rear) is available for satellite link and be sure that this L1 needs to be connected by the external tuner. •... -
Page 23: Optional Settings
Changing the DVD Settings (in the setup menu) In the setup menu, you can customize the various kinds of settings as you prefer. Refer to the following instructions to navigate through the setup menus. 1) Press [SETUP]. 2) Use [s / B] to select a setup item. 3) Use [K/ L] to go up or down in the menu list. -
Page 24: Parental Setting
Press first. Press [STOP C] if you are playing back a disc. PARENTAL Setting Parental setting will prevent your children from viewing inappropriate materials (password protected). Playback will stop if the ratings exceed the levels you set. To Set the Parental Level To Set the Parental Level SETUP Press... -
Page 25: Initialize
INITIALIZE Reset the settings to factory default. SETUP Press to call up the setup menu. to select , then press Press to select “YES”, then press INITIALIZE_INITIALIZE INITIALIZE Press to select the desired language. SELECT MENU LANGUAGE ENGLISH FRANÇAIS ESPAÑOL The next time you operate, the player menu language will be the one you have selected. -
Page 26: Troubleshooting
Troubleshooting Guide If this unit does not perform properly when operated as instructed in this manual. Refer to the following: Symptom No power. This unit does not respond to the remote control. Poor picture or noise. Cannot record a TV program. Timer recording is impossible. -
Page 27: Information
Maintenance Servicing Servicing • Please refer to relevant topics on the “Troubleshooting Guide” on page 26 before returning the product. • If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. -
Page 28: Limited Warranty
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows: DURATION: PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase.
