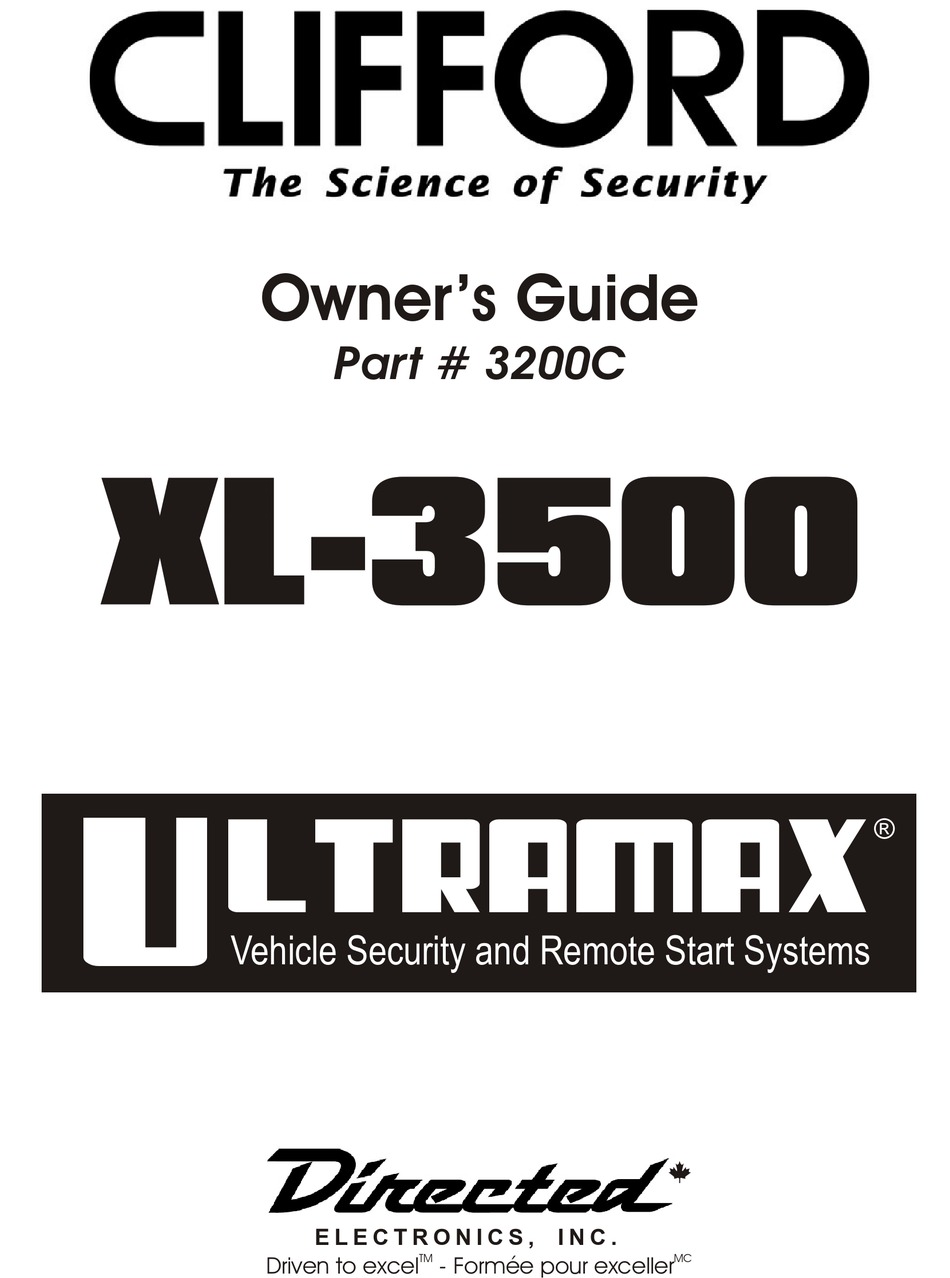

- Page 1 Owner’s Guide Part # 3200C ltramax ® Vehicle Security and Remote Start Systems E L E C T R O N I C S , I N C . Driven to excel - Formée pour exceller...
- Page 2 Contact your authorized dealer to obtain the service charge for your unit. IMPORTANT: Clifford security systems, including this unit, are deterrents against possible theft. Directed Electronics inc., is not offering a guarantee or insurance against vandalism, damage or theft of the automobile, its parts or contents;...
-
Page 3: Table Of Contents
Table of Contents Limited Lifetime Consumer Warranty ....... . i What Is Included . -
Page 4: Standard Configuration
Standard Configuration CLIFFORD 2000 Directed Electronics, Inc. ©... -
Page 5: What Is Included
What is Included The control module An HF Plus receiver/antenna One or two four-button transmitters The red status LED indicator light A push-button Valet ® switch Your warranty registration A shut-down toggle switch Important Information Congratulations on the purchase of your remote start keyless entry system. -
Page 6: Your Warranty
Your Warranty Your warranty registration must be completely filled out and returned within 10 days of purchase. Your product warranty will not be validated if your warranty registration is not returned. Make sure you receive the warranty registration from your dealer. It is also necessary to keep your proof of purchase, which reflects that the product was installed by an authorized dealer. -
Page 7: Transmitter Functions
Transmitter Functions The receiver uses a computer-based learn routine to learn the transmitter buttons. This makes it possible to assign any specific transmitter button, or combination of buttons, to any receiver function. The transmitter initially comes programmed with the Standard Configuration, but may also be customized by an autho- rized dealer. -
Page 8: Using Your System
Button The panic function is controlled by pressing and holding for 1 second. Buttons The remote start function of your system is controlled by pressing these buttons simultaneously. Using Your System Warning! Safety First The following safety warnings must be observed at all times: Due to the complexity of this system, installation of this product must only be performed by an authorized DEI dealer. - Page 9 THE USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE AREA MUST AT ALL TIMES REMAIN CLOSED. These precau- tions are the sole responsibility of the user.
-
Page 10: Locking/Arming
STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED DEI DEALER TO REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. -
Page 11: Unlocking/Disarming
® NOTE: For Passive Mode to be effective, the Failsafe Starter Kill relay must be installed. Unlocking/Disarming Pressing for one second disarms the system and unlocks the doors (if connected). The horn will honk twice (if connected) and the parking lights will flash twice to confirm disarming of the sys- tem. -
Page 12: Valet Mode
Valet ® Mode You can prevent your system from automatically activating the optional Failsafe ® Starter Kill and locking the doors by using Valet ® Mode. This is very useful when washing the vehicle or having it serviced. In Valet ®... -
Page 13: Remote Start
Remote Start This feature allows you to remotely start and run your vehicle for a programmable period of time. This makes it possible to warm up the engine, as well as adjust the interior temperature of the vehi- cle with the climate control system. If interior heating or cooling is desired, the climate controls must be preset, and the fan blower must be set to the desired level prior to remote starting the vehicle. -
Page 14: Valet Take-Over
When you are ready to drive the vehicle: 1. Insert the ignition key and turn it to the ON (not the START) position. 2. Press the brake pedal. NOTE: If the brake pedal is pressed before the key is in the ON position, the engine will shut down. -
Page 15: Timer Mode
To perform Valet ® Take-Over: Before turning off the engine, press and release on the transmitter (or press and release the optional momen- tary switch). Turn the ignition key to the OFF position. (The engine will stay running.) The engine will run until the pre-programmed time elapses or a shut-down input is received. -
Page 16: Starter Anti-Grind Circuitry
The engine may be allowed to run for its pre-programmed time period, or it can be shut down while running during Timer Mode operation by pressing Buttons again. In either case, the vehicle will restart every three hours for a total of six opera- tion cycles. -
Page 17: Disabling The Remote Start System
Disabling the Remote Start System This feature allows your system's remote start unit to be tem- porarily disabled to prevent the vehicle from being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To disable the remote start, move the shutdown toggle switch to the OFF position. -
Page 18: Rapid Resume Logic
Rapid Resume Logic This DEI ® system will store its current state to non-volatile memory. If power is lost and then reconnected the system will recall the stored state from memory. This means if the unit is in Valet ® Mode and the battery is disconnected for any reason, such as servicing the car, when the battery is reconnected the unit will still be in Valet Mode. -
Page 19: Glossary Of Terms
Passive Mode or Active Mode. In Passive Mode the optional Failsafe ® Starter Kill will automatically activate 30 seconds after the ignition has been turned off. Ignition switch-controlled door-locking on or off. With this feature on, the doors will lock 3 seconds after the ignition key is turned on, and unlock when the ignition key is turned off. -
Page 20: Convenience Expansions
LED: A red light mounted at a discretionary location inside the vehicle. It is used to indicate the status of your system. Transmitter: A hand-held, remote control which operates the var- ious functions of your system. Valet ® Switch: A small push button mounted at a discretionary location inside the vehicle. - Page 21 connected, the system can be programmed to lock the doors auto- matically 30 seconds after the ignition has been turned off. The system can also be programmed to lock the doors when the ignition is turned on and to unlock them when the ignition is turned off. Power Trunk Release: The system’s auxiliary output can be pro- grammed to operate a factory power release for the vehicle's trunk or hatch.
-
Page 22: Quick Reference Guide
QUICK REFERENCE GUIDE: To lock/arm using your remote s To lock/arm the system press for one second. The doors will lock (if connected). The LED will begin to flash. If installed, the optional ® Failsafe Starter Kill will prevent the vehicle’s starter from cranking if it has been installed. - Page 23 The company behind this system is Directed Electronics USA, Inc. Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, DEI is ISO 9001 registered.
