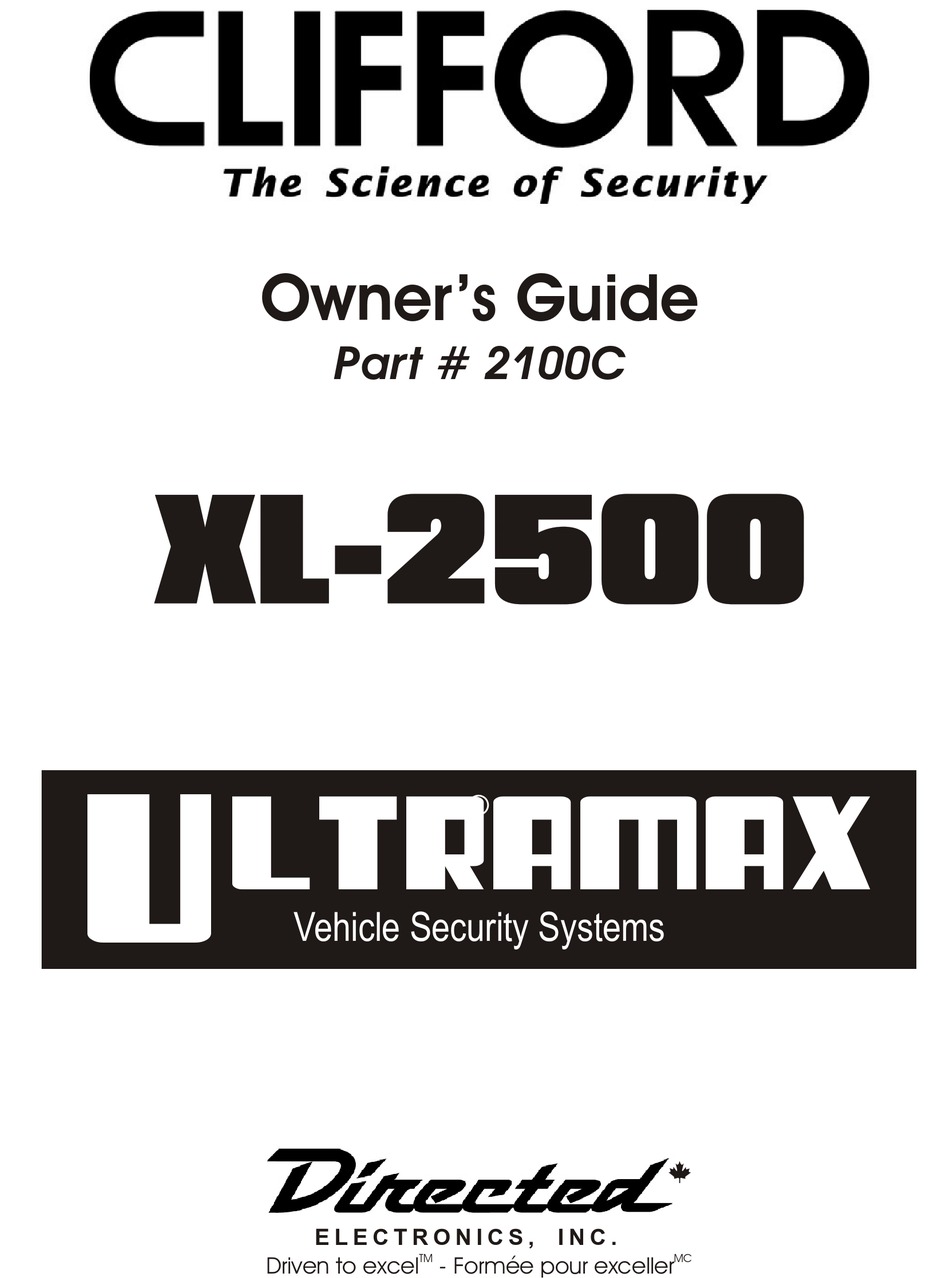

- Page 1 Owner’s Guide Part # 2100C ltramax ® Vehicle Security Systems E L E C T R O N I C S , I N C . Driven to excel - Formée pour exceller...
- Page 2 Contact your authorized dealer to obtain the service charge for your unit. IMPORTANT: Clifford security systems, including this unit, are deterrents against possible theft. Directed Electronics inc., is not offering a guarantee or insurance against vandalism, damage or theft of the automobile, its parts or contents;...
-
Page 3: Table Of Contents
Table of Contents Limited Lifetime Consumer Warranty ......i What Is Included . - Page 4 Standard Configuration CLIFFORD 2001 Directed Electronics, Inc. ©...
-
Page 5: What Is Included
What is Included A control module Two 3-button remote transmitters A zone 2 impact sensor on-board the control module A high-powered siren A fault-proof starter interrupt on-board the control module An LED system status indicator A push-button Valet ® switch Important Information Congratulations on the purchase of your state-of-the-art vehicle security system. -
Page 6: Your Warranty
when using the remote transmitter. To access the battery for replacement, remove the rear cover of the remote with a small, flat-blade screwdriver. Your Warranty Your warranty card must be returned and the barcode serial num- ber must not be removed. If the warranty card is not returned, no warranty will be honored on your unit. -
Page 7: Transmitter Functions
Transmitter Functions This system is programmable, making it possible to assign any trans- mitter button to any specific receiver function. The remote initially comes programmed with Standard Configuration, but may also be customized by an authorized dealer. The buttons in all of the instruc- tions in this manual correspond to a Standard Configuration remote. -
Page 8: Using Your System
Using Your System The transmitter buttons indicated in this manual correspond to a standard configuration transmitter, unless otherwise specified. Arming You can arm the security system by pressing for one second. When the system arms, you will hear a short siren sound (chirp) and the parking lights will flash once. -
Page 9: Disarming
time a sensor is triggered during the Passive Arming countdown, the countdown starts over. Arming your security system protects your vehicle to the following degrees: Light impacts trigger a warn-away response, causing the siren to chirp and the parking lights to flash for a few seconds. Heavy impacts trip a trigger sequence, which consists of the siren sounding continuously and the parking lights flashing for 30 seconds. -
Page 10: Disarming Without A Transmitter
disarming indicates Tamper Alert, which is described in the Diagnostics section of this guide. Disarming Without a Transmitter If your transmitter is lost or damaged, you can manually disarm your vehicle security system. To disarm the system without a trans- mitter, you must have the vehicle's ignition key and know where the Valet switch is located. -
Page 11: Remote-Controlled Silent Arm/Disarm
Remote-Controlled Silent Arm/Disarm Use remote-controlled silent arm/disarm to temporarily turn off the arm or disarm chirps by briefly pressing before either arming or disarming. The confirmation chirp(s) will then be elimi- nated for that one operation only. To permanently turn off the arm and disarm chirps, contact your installation dealer. -
Page 12: Remote-Controlled Valet
Remote-Controlled Valet You can also enter or exit Valet Mode by using the remote transmitter: 1. Open any vehicle door. 2. Press 3. Press 4. Press again. The LED system status indicator will light solidly if you have entered Valet Mode and will turn off if you have exited Valet Mode. Nuisance Prevention ®... -
Page 13: Diagnostics
The vehicle doors are protected differently by NPC ™ . If your secu- rity system is triggered by an open door for three, full 30-second cycles (one and one half minutes), the system will bypass the doors until the trigger ceases. NOTE: Arming and disarming the system does not reset the NPC ™... -
Page 14: Disarming Diagnostics
ceases, the system will resume normal monitoring. For example, if your vehicle has an interior light exit delay and you arm the sys- tem before the light turns off, you may hear a Bypass Notification chirp. Three seconds after the light turns off, however, normal monitoring resumes. -
Page 15: Stealth Coding Technology
ZONE DEALER-INSTALLED (Number of DESCRIPTION OPTIONS LED Flashes) Instant trigger for optional sensor, hood or trunk pins A heavier impact detected by the on-board impact sensor Door switch trigger Ignition trigger NOTE: The LED does not report when the warn-away response has been activated;... -
Page 16: High Frequency
High Frequency Your system transmits and receives at 434 MHz. This provides a cleaner spectrum with less interference and a more stable signal. Enjoy a phenomenal increase in range, even in areas with high radio interference. Programming Options Programming options control your system's normal, operational set-up. -
Page 17: Security & Convenience Expansions
Ignition controlled door lock feature, on or off. With this fea- ture on, the doors will lock three seconds after the ignition key is turned on, and unlock when the ignition is turned off. The system also prevents the doors from locking when the ignition is turned on while any vehicle door is open. - Page 18 Power Locks: This system offers lock outputs that can control some manufacturers' power door lock systems. For other systems, additional parts may be required. Power Trunk Release: The output of the system can operate a factory power release for the vehicle's trunk or hatch. An optional relay is required.
-
Page 19: Installation Options
Installation Options Installation options may require additional parts or labor. Please consult your dealer. Interior Light Illumination: The interior domelight can be con- figured to illuminate for 30 seconds after the alarm is disarmed. If the system is rearmed during that 30-second period, the interior light illumination will terminate until the alarm is disarmed again. - Page 20 Input: Any physical connection to the security system. An input can be provided through a sensor, pinswitch or by existing systems in the vehicle, such as ignition or courtesy lights. LED: A red light mounted inside the vehicle, at a location deter- mined by the installer.
-
Page 21: Quick Reference Guide (Removable)
QUICK REFERENCE GUIDE To arm using your remote: s Press on your transmitter for one second. When the system arms, you will hear a short siren sound, or chirp, and see the parking lights flash once. If the vehicle's power door locks are controlled by the sys- tem, the doors will lock. - Page 22 The company behind this system is Directed Electronics USA, Inc. Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology, DEI is ISO 9001 registered.
