Summary of Contents for Fujitsu Siemens Computers Pocket LOOX 600
-

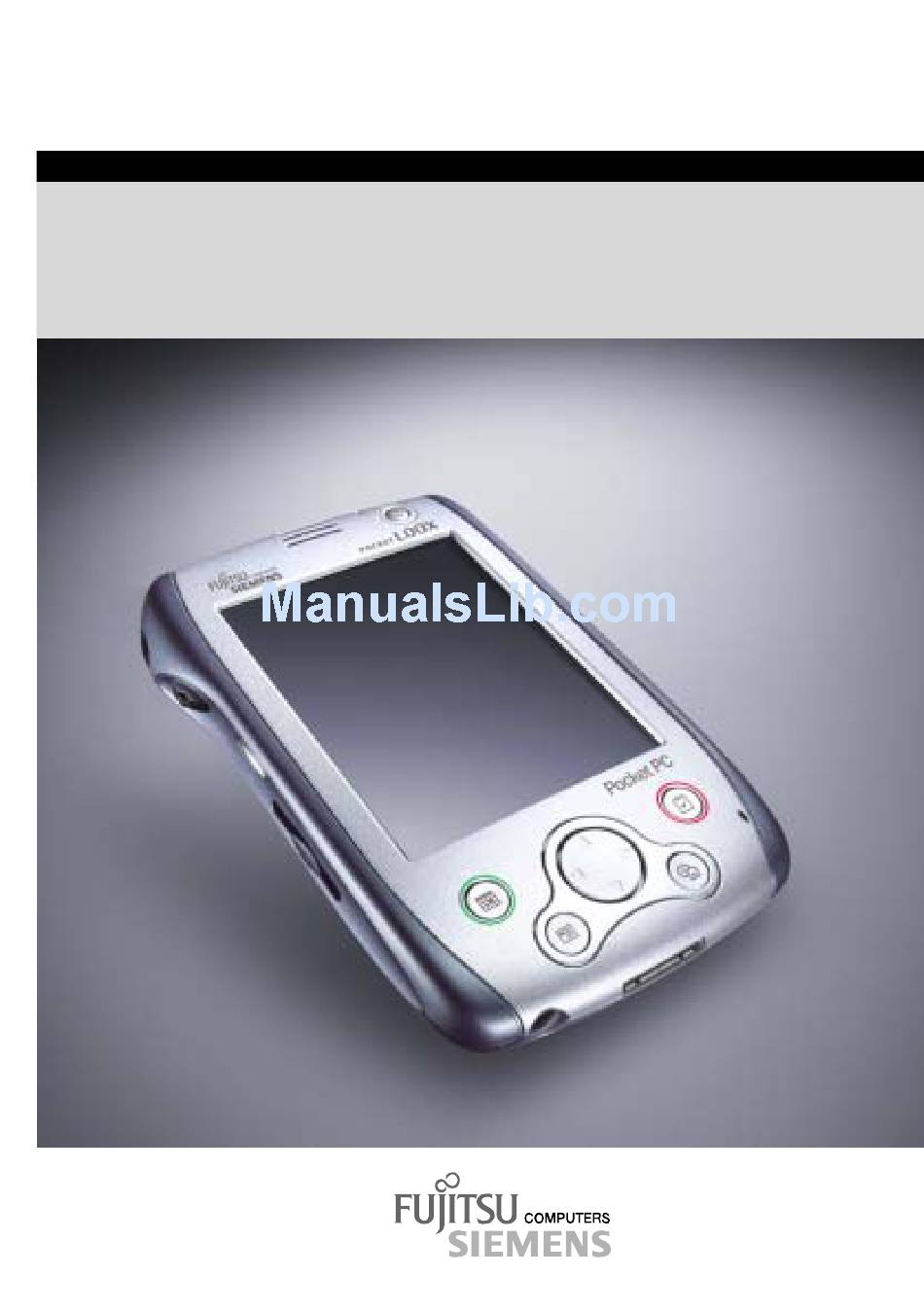

Page 1: Pocket Loox
Pocket LOOX .com EasyGuide Pocket LOOX 600 English... - Page 2 Are there ..any technical problems or other questions which you would like to be clarified? Please contact: · your sales partner · your sales outlet Further information can be found in the "Safety" and "Warranty" manuals. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com...
- Page 4 Este manual ha sido impreso sobre papel reciclado. Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt. Published by Fujitsu Siemens Computers GmbH A26391-K120-Z120-1-7619 Order No.: Printed in the Federal Republic of Germany AG 0402...
-
Page 5: Pocket Loox 600
April 2002 edition May I introduce myself? Technical data Information before you start Index Software overview Operating Pocket LOOX Pocket LOOX 600 in mobile use FSC SpeedMenu Configuring Pocket LOOX Connecting and networking Pocket LOOX 600 with other devices Accessories and... - Page 6 All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright ã Fujitsu Siemens Computers GmbH 2002 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved.
-
Page 7: Table Of Contents
Initial start-up...13 Connecting the power adapter ...13 Removing stylus from Pocket PC ...14 Starting Pocket LOOX 600 the first time ...15 Switching Pocket PC off and on...16 Switch on and off in Suspend mode...16 Switching on and off with soft reset (warm boot)...17 Switching on and off with General Reset switch...18... - Page 8 Information on transport and travelling ... 32 Transporting Pocket LOOX 600 ... 32 Information on travelling ... 33 FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand... 35 Operating FSC SpeedMenu ... 35 Programme structure ... 36 Main menu ... 36 Quick menu...
-
Page 9: May I Introduce Myself
May I introduce myself? My name is Pocket LOOX 600. I am part of the Pocket PC family, also called handhelds. I'm sure you've already noticed that I'm flat, handy and light-weight. Now I'd like to draw your attention to my extensive, diverse capabilities. -
Page 11: Information Before You Start
Information before you start To make things clear The following symbols are used in this manual: Pay particular attention to texts marked with this symbol. Failure to observe this warning may endanger your life, destroy the system, or lead to loss of data. -
Page 12: Important Notes
"Safety" and "Warranty" manuals. · You may only operate the Pocket LOOX 600 with a power adapter if the nominal voltage of the power adapter (100 V to 240 V) matches the local mains voltage. ·... -
Page 13: Disposal And Recycling
As batteries are permanently integrated in both the Pocket PC and in the second battery module, you may not dispose of the Pocket PC and the second battery module as household rubbish. If you have any questions on disposal, please contact your local office, our Hotline/Help Desk, or: Fujitsu Siemens Computers GmbH Recyclingcenter D-33106 Paderborn... -
Page 14: Fcc Class B Compliance Statement
· Consult the dealer or an experienced radio/TV technician for help. Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused by unauthorised modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu Siemens Computers GmbH. The correction of interference caused by such unauthorised modification, substitution or attachment will be the responsibility of the user. -
Page 15: Cleaning Pocket Loox 600
Information before you start Cleaning Pocket LOOX 600 Ê Switch the Pocket PC off. Ê Pull the power plug of the network adapter out of the mains outlet. Ê Remove the second battery module if present. Ê Remove the GPRS module if present. -
Page 17: Software Overview
Software overview In the following table you see which programs are already installed on your Pocket PC and where you can find information on the use and operation of these programs. Software Used for PocketWord For word processing PocketExel For spread-sheet functions PocketOutlook Mailbox, calendar, contacts, notes, things to do... -
Page 19: Operating Pocket Loox 600
Operating Pocket LOOX 600 This chapter describes the operating elements of your Pocket PC and how you · put the Pocket LOOX 600 into operation the first time · switch the Pocket LOOX 600 on and off · operate the Pocket LOOX 600 with the stylus ·... -
Page 20: Overview Of Operating Elements And Connections
Operating Pocket LOOX 600 Overview of operating elements and connections Overview of operating elements and connections A26391-K120-Z120-1-7619... -
Page 21: Initial Start-Up
Connect the power adapter cable (C) to the DC socket of the Pocket PC (25). Ê Connect the power cable (B) into the power adapter (C). Ê Plug the power cable (B) into a mains outlet. A26391-K120-Z120-1-7619 Operating Pocket LOOX 600 15 = Microphone opening 16 = Today 17 =... -
Page 22: Removing Stylus From Pocket Pc
Do not use the power adapter for other devices. Do not use a power adapter that is not specially intended for this Pocket PC. Removing stylus from Pocket PC Rear view of Pocket LOOX 600 Ê Briefly press on the stylus in the direction of the arrow (1). -
Page 23: Starting Pocket Loox 600 The First Time
Starting Pocket LOOX 600 the first time Actuate General Reset switch The first time you start your Pocket LOOX 600, you must actuate the General Reset switch. The General Reset switch is located on the bottom edge under a sliding cover. -
Page 24: Switching Pocket Pc Off And On
Switching Pocket PC off and on After the initial start-up, you usually switch the Pocket LOOX 600 into the Suspend mode when not in use. It is only practical or necessary to switch off the Pocket PC completely with the General Reset switch. -
Page 25: Switching On And Off With Soft Reset (Warm Boot)
FSC SpeedMenu. Switching on with application buttons You can also switch on your Pocket LOOX 600 by briefly pressing the applications buttons (14, 16, 18, 19). The applications assigned to the respective button appears on the screen. The applications Tasks, Today, Contacts and Calendar are preset. -
Page 26: Switching On And Off With General Reset Switch
Operating Pocket LOOX 600 Switching on and off with General Reset switch If your Pocket PC does not continue operating and switching off and on with the Suspend button and the soft reset fail to function, you can reset your Pocket PC to the delivered state. -
Page 27: Using Standard Operating Elements
FSC SpeedMenu is contained in the chapter "FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand". 1 = Navigation key A26391-K120-Z120-1-7619 Operating Pocket LOOX 600 Selecting menu entry Ê Press the up arrow, the down arrow, the right arrow or the left arrow if you want to select a menu entry. -
Page 28: Using Scroll Button
The scroll button is particularly useful for one-hand operation with FSC SpeedMenu. More information on using the FSC SpeedMenu is contained in the chapter "FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand". Ê... -
Page 29: Using The Application Buttons
Pocket PC (see the chapter "Configuring Pocket LOOX 600"). The Pocket PC is also equipped with a light sensor that automatically reduces the display lighting with a corresponding surrounding brightness. -
Page 30: Making Sound Recordings
Operating Pocket LOOX 600 Making sound recordings 1 = Microphone A microphone is integrated in your Pocket PC. Ê Press the record button (2) and speak into the integrated microphone (1). The recording runs as long as you press the record button. You recording is automatically saved under the name Recording1. -
Page 31: Selecting Location For Cradle
Keep other objects 100 mm away from the cradle and its power adapter to ensure adequate ventilation. · The Pocket PC and the cradle should not be subjected to extreme environmental conditions. Protect the Pocket LOOX 600 and cradle from dust, moisture and heat. 1 = DC jack (DC IN) A26391-K120-Z120-1-7619 Operating Pocket LOOX 600... -
Page 32: Charging Battery In Cradle
Operating Pocket LOOX 600 Charging battery in cradle In the following text the letters after the designations for the various cables refer to the illustration Delivery scope in your "Getting Started“ manual fold-out cover page). Please look there if you're not sure which cable is meant. -
Page 33: Synchronising Data With Activesync
600 and your PC or notebook. The ActiveSync Setup Wizard will help you do this. After you have specified the desired and required settings for the synchronisation in the Wizard, the first synchronisation starts automatically. Detailed information on data synchronisation with ActiveSync is contained in the Microsoft User’s Guide on the CD. A26391-K120-Z120-1-7619 Operating Pocket LOOX 600... -
Page 34: Backing Up Data With Lx Backup
Backing up data with LX Backup The Pocket LOOX 600 saves your data such as appointments, addresses, things to do and notes, as well as all documents in the RAM memory of the device. These data are backed up to your PC during synchronisation with ActiveSync. -
Page 35: Restoring
No button if this is not the case. Ê A message is output when the restoration has been completed. Ê When you press the OK button at the upper right, the device is reset and restarted. A26391-K120-Z120-1-7619 Operating Pocket LOOX 600... -
Page 36: Inserting And Removing Expansion Cards
Consult the documentation supplied by the expansion card's manufacturer and follow the instructions provided. Never use force when inserting or removing an expansion card. Only use expansion cards suitable for the Pocket LOOX 600. Make sure that no foreign objects enter the slot. Inserting expansion card Ê... -
Page 37: Removing Expansion Card
Removing expansion card from side card slot (SD/MMC slot) Ê Press on the edge of the expansion card so that the expansion card jumps out of the slot slightly. Ê Slide the expansion card out of the Pocket PC. A26391-K120-Z120-1-7619 Operating Pocket LOOX 600... -
Page 39: Pocket Loox 600 In Mobile Use
Pocket LOOX 600 in mobile use The Pocket LOOX 600 is equipped with a powerful battery that allows you to work for several hours without a connection to a power supply. When you're on the road your Pocket PC is supplied with power by the integrated battery. -
Page 40: Optimising Battery Performance
Pocket PC. These settings enable you to use the battery operating time optimally. Please see the chapter "Configuring Pocket LOOX 600“ for information on how to save energy. In the default setting, a setting is activated that automatically switches the Pocket PC into the Suspend mode after three minutes when working without a power connection if no entries are made during this time. -
Page 41: Information On Travelling
Do not use a connection adapter for electrical devices to connect the Pocket PC. · If you use a modem, incompatibilities with the local telecommunications system may result. A26391-K120-Z120-1-7619 Pocket LOOX 600 in mobile use... -
Page 43: Fsc Speedmenu - Operating Pocket Loox 600 Quickly With One Hand
FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand FSC SpeedMenu simplifies the operating of your Pocket PC and speeds up everyday routines. FSC SpeedMenu also allows you to operate your Pocket PC with one hand: instead of using the stylus you can select and activate menu items easily by using the scroll button or the navigation key via the FSC SpeedMenu. -
Page 44: Programme Structure
FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand Operating with the stylus · To trigger the desired action (activate the entry, select the submenu, display help, terminate the programme): Press the corresponding menu entry or the corresponding button briefly. - Page 45 FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand FSC SpeedMenu: default entries in Organizer* submenu *: The two illustrations show the default entries you will find when you start the FSC SpeedMenu the first time. You can leave the default entries as they are or change them at any time.
-
Page 46: Editing Fsc Speedmenu
FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand Editing FSC SpeedMenu Within the defined program structure (see the section "Programme structure") you can alter FSC SpeedMenu to meet your own needs. You can add new entries, rename entries, sort entries, create submenu entries, move the existing entries and, of course, also delete entries. -
Page 47: Tips And Tricks
FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand An overview of all possible actions is contained in the FSC SpeedMenu help on your Pocket PC. Example of a configured FSC SpeedMenu Tips and tricks Activating an entry in Quick menu immediately after starting FSC SpeedMenu: You need not scroll down through all entries, but instead can use the roll-over function. - Page 48 FSC SpeedMenu – Operating Pocket LOOX 600 quickly with one hand Inserting entry at end of Main menu If the list of the Main menu entries is so long that it no longer fits on the display, an arrow button appears at the lower end (also see the section "Programme structure“).
-
Page 49: Configuring Pocket Loox 600
If the battery charge level is very low, you will be warned with a dialog window during operation. Then immediately connect your Pocket LOOX 600 to an electrical outlet. Data that are only located in the RAM will be lost if the Pocket PC switches off completely due to an insufficient power supply. -
Page 50: Using Energy-Saving Functions
Switch off the sound, reduce the volume or only allow acoustic signals for certain applications. Switching Pocket LOOX 600 into Suspend mode In the system settings you can specify after how many minutes without action the Pocket PC switches into the Suspend mode Ê... - Page 51 Select the Settings entry in the menu. Ê Select the Personal tab. Ê Touch the Sounds & Messages symbol. Ê Set the desired volume with the slide control. Ê Touch OK (navigation bar) to confirm your setting. A26391-K120-Z120-1-7619 Configuring Pocket LOOX 600...
-
Page 52: Configuring Hardware Buttons
Configuring Pocket LOOX 600 Permitting sound only for certain actions Ê Touch Start. Ê Select the Settings entry in the menu. Ê Select the Personal tab. Ê Touch the Sounds & Messages symbol. Under the heading Activate sound for you will find a list of actions that are usually assigned acoustic signals. -
Page 53: Adjusting Menus
A password of alphanumeric characters (a complex alphanumeric password). Password of four numbers Ê Touch the desired combination of numbers on the number field. Ê Touch OK (navigation bar) to confirm your setting. A dialog box appears. Ê Confirm with Yes. A26391-K120-Z120-1-7619 Configuring Pocket LOOX 600... -
Page 54: Configuring Password Protection With F-Secure
The next time you switch on your Pocket PC you must first enter the password before the Today screen or the content on which you last worked appears on the display. If you have forgotten your password, you can restart your Pocket LOOX 600 by resetting it to the delivered state with the General Reset switch. -
Page 55: Using Alarm Functions
The alarm function of the Pocket PC is not only practical in the morning, but can also be useful before important appointments or deadlines. Have the Pocket LOOX 600 "wake you": your Pocket LOOX 600 will remind you in advance of upcoming appointments or deadlines with an acoustic signal. -
Page 57: Connecting And Networking Pocket Loox 600 With Other Devices
Connecting and networking Pocket LOOX 600 with other devices The Pocket PC offers a wide range of ways to exchange data with other devices or to work in a network. You have already become familiar with data synchronisation via ActiveSync and an ActiveSync cable in the chapter "Synchronising data with ActiveSync". -
Page 58: Wireless Communication With Bluetooth
Do not bring the Pocket LOOX 600 into an operating room with the radio component switched on, as the radio waves transmitted by BLUETOOTH may impair the operation of medical electronic systems used there. -
Page 59: Activating And Deactivating Bluetooth
Connecting and networking Pocket LOOX 600 with other devices Activating and deactivating BLUETOOTH You will find a sliding switch on the right-hand side of your Pocket PC with which you can switch BLUETOOTH on and off. This enables you to also use your Pocket PC wherever radio modules such as BLUETOOTH may not be operated, such as hospitals and aircraft (please also observe the safety precautions in the "Safety"... -
Page 61: Accessories And Additional Components
WAP sites with your Pocket PC. By the way, the ergonomically practical arrangement of the microphone and loudspeaker on your Pocket LOOX 600 makes telephoning just as comfortable as using a cell phone. However, the GPRS/GSM module also includes a headset with which you can telephone or listen to music without being disturbed. -
Page 63: Troubleshooting And Tips
Troubleshooting and tips If a fault occurs in your Pocket PC, try to eliminate it with the measures described in this chapter. If you fail to correct the problem, proceed as follows: Ê Make a note of the steps and the circumstances that led to the fault. Also make a note of any error messages displayed. -
Page 64: The Pocket Pc Switches Off
Troubleshooting and tips The Pocket PC switches off If you operate the Pocket PC too long with only the battery, the Pocket PC switches into the Suspend mode when the battery charging level is too low. Ê Connect the power adapter to charge the battery. Ê... -
Page 65: The Pocket Pc Stops Working
The Pocket PC stops working If the Pocket PC stops working, this may have the following reasons: An application programme has caused the malfunction Ê Restart the Pocket PC (soft reset). Ê Reset the Pocket PC to the delivered state with the General Reset switch. When you reset the Pocket PC to the delivered state, your data are lost! After approximately 10 seconds a picture appears on the display and a tone sounds. -
Page 66: The Battery Discharges Too Quickly
Troubleshooting and tips Ê Slide the cover closed again (3). If the device is switched off with the General Reset switch, the battery is switched off so that the RAM contents are lost. This means you loose all data (documents, additionally installed programs, personal settings) that you haven't saved elsewhere. -
Page 67: Contact With Hotline/Help Desk
Contact with Hotline/Help Desk If you are unable to solve a certain problem, please contact the Hotline/Help Desk. Additional details are contained in the "Safety" and "Warranty" manuals. Please have the following information ready when you call: · The model name and serial number of the Pocket PC. The serial number is located on a sticker on the backside of the Pocket PC. -
Page 69: Technical Data
Technical data Pocket LOOX 600 Processor: Main memory: Possible modules: Electrical data Regulations complied with: Protection class: Maximum power draw: (Pocket PC on with battery charging) Display Display diagonal: Dimensions: (W x H) Slots SD/MMCard CF Type I and II... -
Page 70: Battery
Technical data Dimensions Width/depth/height: Weight: Battery Rated capacity Charging time (when not in operation): Operating time: Power adapter · Rated voltage: · Frequency: · Rated voltage: · Max. rated current: You can readily order an additional power adapter and an additional power cable. 132 mm/82 mm/17 mm approx. -
Page 71: Index
Index Accessories 53 Additional components 53 Alarms 47 Battery capacity 6 discharging 58 disposal 5 loading 25 self-discharge 6 storing 6 technical data 62 BLUETOOTH 50 sliding switch 13 BLUETOOTH, activating 51 BLUETOOTH, deactivating 51 BLUETOOTH, PocketPlugfree software 51 BLUETOOTH, selecting the location 50 Buffer battery, load 55 CE marking 5 Class B Compliance Statement 6... - Page 72 Index General reset 18 General reset switch 15 GPRS module 53 Hardware keys, configuring 44 Headphones port 13 Hotline/Help Desk 59 Infrared interface 49 Initial start-up, basic operation 16 Initial start-up, connecting power adapter 13 Initial start-up, first start 15 Keyboard cleaning 7 Keyboard, external 53...
- Page 73 Software installing new software 55 new installation 55 Software, overview 9 Sound activating optionally 44 switching off 43 Sound recording, record button 13, 22 Start menu, customising 45 Storage, battery 6 Stylus 13 Summer time 55 Suspend key 16 does not react 58 switch off 16 switching on 16 Suspend mode 16...
