Audiovox XMEXT50 Installation Manual

To install your XM-EXT50 please follow the
instructions and illustrations listed below:
Step 1 Step 2 Step 3
Remove rubber boot as shown. Insert antenna's connector Insert the cable's connector
through the rubber boot as into the connector marked
illustrated and into amplifier's ANT or Antenna on the XM
connector. Replace rubber boot. receiver or Plug & Play system.
Step 1 Step 2 Step 3
Please refer to the XM-EXT50 user guide included with your receiver to complete your XM system set up.
Warning
DO NOT attempt to cut, splice or otherwise shorten the cable!
Any remaining length should be carefully coiled.
DO NOT kink the cable. Avoid bending cable with a bend
radius of less then 1 inch.
DO NOT expose the cable to severe environmental
conditions. Care should also be taken to avoid direct
and high moisture areas.
DO NOT link more than two extension kits.
Yes No
Please mount amplifer
upright as shown above.
Systems* Radio Satellite XM all
Specifications
Cable Length 50 feet
Cable Type RG-58
Frequency 2300 to 2400 MHz
Amplifier Gain 10dB +/- 1 dB @ 2300 MHz
Return Loss -10dB
Connectors SMB

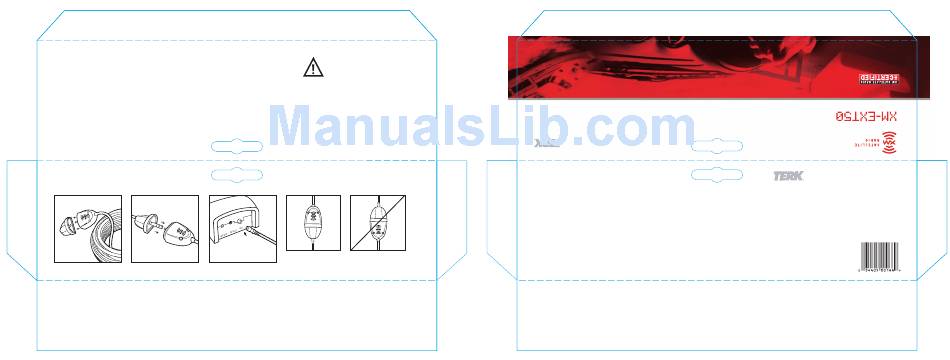

Installation instructions printed on the inside of this card.
invironment
any in Radio Satellite XM of
options installation the Extends
Indoor/Outdoor
KIT EXTENSION 50'
with use For
For additional information:
Call 1.800.942.TERK (8375)
or visit www.terk.com
For additional information about XM Satellite Radio service
visit www.xmradio.com
Made in China
One year limited warranty
The XM name and related logos are trademarks of
XM Satellite Radio inc.
TERK and TERK Technologies are trademarks of
TERK Technologies Corp. Commack, NY
©2004 TERK Technologies Corp.
136P003
•
•
