Avital 4000 Installation Manual

Keyless entry and remote engine starter system
Hide thumbs Also See for 4000:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

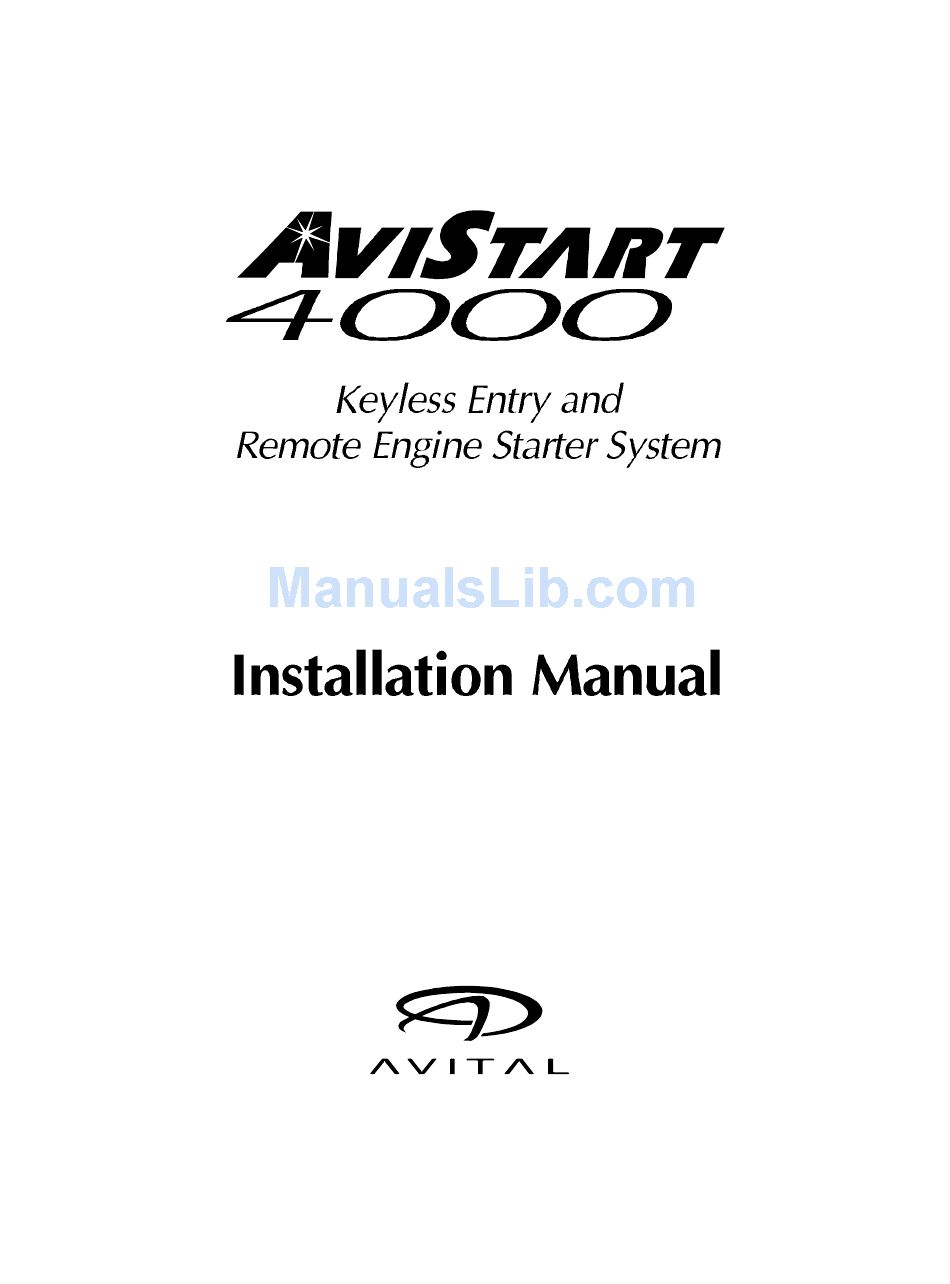

AviStart 4000 Installation - Front Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avital 4000

Summary of Contents for Avital 4000

  • Page 1 AviStart 4000 Installation - Front Cover...

  • Page 3: Table Of Contents

    Programming Table for System Features ....19 Programming Table for Remote Controls ....20 AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 4: Important Information

    7. Turn off dome light or remove dome light fuse to prevent battery drain. This device complies with Part 15 of the FCC rules. Any changes or modifications made to the system without the express approval of Avital Technologies, Inc. could void the user’s authority to operate this equipment.

  • Page 5: Main Wiring Diagram

    Main Wiring Diagram AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 6: 16 Pin Connector

    WHITE/LIGHT GREEN Tachometer Input 6 Pin Connector Pin Number Wire Color Description YELLOW Starter Interrupt Switch Side GRAY Heater/AC Output VIOLET Starter Interrupt Starter Side PINK Ignition Output Battery (+) BLANK Not Used AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 7: Installation Procedures

    4. Sleeve these wires with vinyl tubing or electrical tape and route them through an existing rubber grommet into the engine compartment. 5. If an existing grommet is not available, drill a hole and install a snap grommet. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 8: Led Indicator

    +12 volts when you press the brake pedal and 0 volts when the brake pedal is not pressed. 3. Connect the YELLOW wire to the vehicle brake light switch wire. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 9: Parking Lights

    4. If the vehicle door trigger is positive (+) trigger, connect relay terminal 87 to a fused +12 volt source. 5. If the vehicle door trigger is negative (-) trigger, connect relay terminal 87 to ground (-). AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 10: Trunk Release

    A few vehicle disarm wires will rest at a neutral state while armed. Regardless of type, both types will change to ground when the key cylinder is turned to unlock. 3. Connect the GRAY/WHITE wire to the factory alarm disarm wire. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 11: Ignition Switch Connections

    If it will not crank, you have the correct wire. 3. Connect the YELLOW wire to the ignition switch side of the starter wire. 4. Connect the VIOLET wire to the starter solenoid side of the starter wire. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 12: Remote Engine Start Neutral Safety Switch Bulletin

    Currently, the only vehicles with the combined neutral safety switch that Avital is aware of are General Motors trucks, GM sport utility vehicles, GM column shift passenger cars and Dodge Dakota pickup trucks. There may be additional vehicles with the combined neutral safety switch that require the additional relay.
  • Page 13 The wire color codes are subject to change. Check all wires with a volt/ohmmeter. If you have any questions, please contact the Avital Technical Support Department. AviStart 4000 Installation Manual - 8/98 Rev.B...
  • Page 14 Gen eral Mo tors Sport Util ity Ve hi cles, Trucks and Col umn Shift Pas sen ger Ve hi cles Dodge Da kota Pickup Trucks AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 15: Door Lock/Unlock

    When the alarm is remotely disarmed, the GREEN/WHITE wire provides a negative output. At the same time the BLUE/WHITE wire provides a 300 MA positive output. Posi tive Trig ger Door Locks AviStart 4000 Installation Manual - 8/98 Rev. B...
  • Page 16 AviStart 4000 Installation Manual - 8/98 Rev. B...
  • Page 17 AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 18: Tach Wire (Rpm Monitoring)

    2. Start the vehicle. Use the voltmeter to find a wire that will show 1 to 5 volts AC while the vehicle is idle and increase an additional 1 to 5 volts AC when the engine RPM is raised to 3000-4000 RPM. 3. Connect the WHITE/GREEN wire to the vehicle tach wire.

  • Page 19: Power And Ground Connections

    Features" on page 19. 5. Press and hold the remote START button. 6. The parking lights will flash two times to confirm the RPMs have been memorized. 7. Release the START button. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 20: Programmable Features

    6. Follow the "Secondary Action." You will hear a number of beeps to confirm that you have changed the setting of that feature. 7. Turn the ignition key "OFF." 8. Repeat steps 1-7 for any other feature you wish to program. AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 21: Programming Table For System Features

    Temperature-Controlled Wait 3 seconds. The piezo beeper will beep Starting — once for -7 F (-20 C), twice for -22 F -7 F (-20 C) or -22 F (-30 C). (-30 C) AviStart 4000 Installation Manual - 8/98 Rev. B...

  • Page 22: Programming Table For Remote Controls

    Press the LOCK Button, the piezo beeper will Code Learning Button beep 1 time. Instant Remote Control Wait 3 seconds, the piezo beeper will beep — Code Deletion twice, all codes are erased out of memory. AviStart 4000 Installation Manual - 8/98 Rev. B...
  • Page 23 AviStart 4000 Installation Manual - 8/98 Rev. B...
  • Page 24 AviStart 4000 Installation Manual -8/98 Rev. B...
