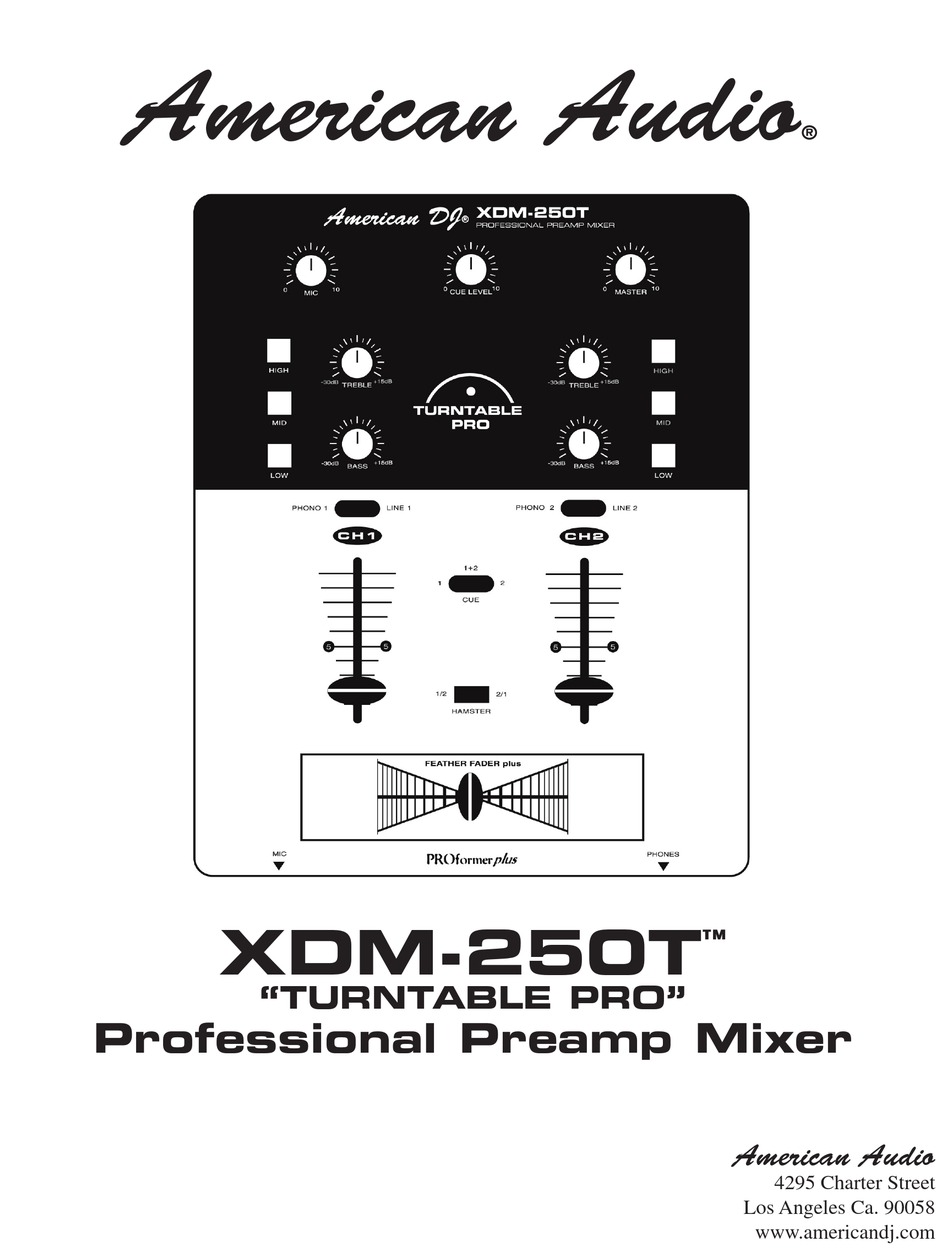

- Page 1 American Audio ® XDM-250T ™ “TURNTABLE PRO” Professional Preamp Mixer American Audio 4295 Charter Street Los Angeles Ca. 90058 www.americandj.com...
-
Page 2: Customer Support
Congratulations and thank you for purchasing the American Audio is a representation of American Audio’s continuing commitment to produce the best and highest qual- ity audio products possible at an affordable price. The XDM-250T™ comes with a two year limited warranty! Please read and understand this manual completely before attempting to operate your new mixer. -
Page 3: Safety Precautions
• Equipped with high quality Crossfader (Replaceable) • High output to headphones • Cue Mixing • Extremely clean signal to noise ratio • Two turntable Ground Prongs American Audio © - www.americandj.com - XDM-250T™ Instruction Manual Page 3 ® Safety Precautions Main Features •... -
Page 4: Controls And Features
100%. When a Cut Button is depressed a LED located directly above the specific button will glow indicating the cut function has been activated. Pressing the Cut Button once again will disengage Cut function. American Audio © - www.americandj.com - XDM-250T™ Instruction Manual Page 4 ®... - Page 5 18. Master Volume Control - This rotary knob is used to control the master output level (volume). To avoid distorted output try to maintain an average output signal level +4 dB. American Audio - www.americandj.com - XDM-250T™ Instruction Manual Page 5 ©...
-
Page 6: Rear Panel
26. Channel 2 Phono Input Jacks - Connect turntables equipped with MM pickup cartridge to PHONO inputs (All DJ turntable use MM pick-up cartridges). The red colored RCA jack represents the right channel input and the white represents the left channel input. American Audio - www.americandj.com - XDM-250T™ Instruction Manual Page 6 ©... -
Page 7: Typical Mixer Set-Up
C A S S E T T E D E C K T U R N TA B L E T U R N TA B L E American Audio - www.americandj.com - XDM-250T™ Instruction Manual Page 7 © ®... - Page 8 XDM-250T™ Typical Mixer Set-Up RCA to 1/4” Patch Cables Speaker Cables American Audio - www.americandj.com - XDM-250T™ Instruction Manual Page 8 © ®...
-
Page 9: Cross Fader Replacement
XDM-250T™ The crossfader is “Hot Swappable” which means it may be replaced at any time, even when power is applied. Only replace with American Audio Feather Fader Plus. Replacing with any other model fader may seriously damage your mixer. Replacing the Crossfader:... -
Page 10: Year Limited Warranty
United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, American Audio® shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof. - Page 11 Channel Equalizer: LOW: TREBLE: Components and parts are subject to change for improvements within the range of the specifications. American Audio © AC 10V, 500mA - 6.3mm Jack 7.55 ” W x 9.3 ” D x 3.22 ” H 5.2 Lbs./2.3 kg...
