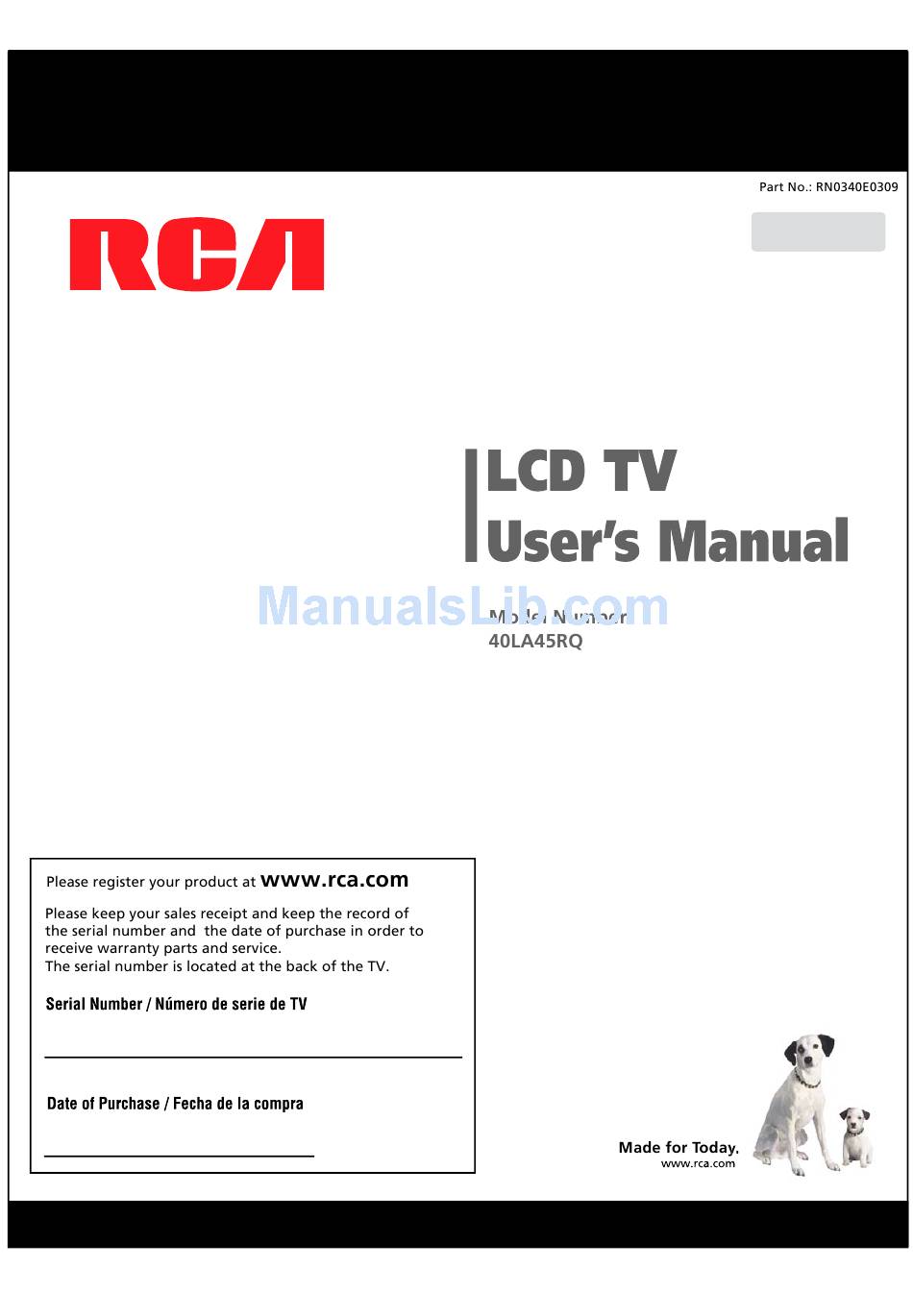

  • Page 1 English...

  • Page 2: Child Safety Guide

    Child Safety Guide...
  • Page 3 Child Safety Guide Use una montura que se ha recomendado por el fabricante de monitor y/o listado por un laboratorio independiente (como UL, CSA, ETL). Siga todas las instrucciones ofrecidas por el fabricante de monitor y montaje de pared.

  • Page 4: Table Of Contents

    Table of Contents Child Safety Guide ............................Caution and Warning ........................... FCC Notice ..............................Safety Precautions ............................ Preparation for Your New TV .................................................... Check Accessories ..........................Setup TV Table Stand ............................Select TV Location ..........................Connection and Using TV Stand Installation ............................
  • Page 5 Table of Contents OSD Menu Operations ..................................................Adjust the OSD Screen ............................Picture Menu ............................Sound Menu ............................Channel Menu ............................Parental Menu ............................. Setup Menu ............................Others Menu Frequently Asked Questions (FAQs) ..................... Troubleshooting ............................V-Chip Rating Explanations ........................

  • Page 6: Caution And Warning

    Caution and Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead The exclamation point within an symbol, within an equilateral triangle equilateral triangle is intended to...

  • Page 7: Safety Precautions

    Safety Precautions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, and the like.

  • Page 8: Safety Precautions

    Safety Precautions 23. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. 24. To reduce the risk of electric shock, the grounding of center pin of plug must be maintained. 25.

  • Page 9: Preparation For Your New Tv

    English CH LIST PICTURE SOUND...

  • Page 10: Tv Stand Installation

    TV Stand Installation TV 40LA45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the installation according to the instructions below. Step One Place the TV faced down on a soft cloth or cushion to prevent the LCD panel from being damaged.

  • Page 11: Tv Signal Connection

    TV Signal Connection The first step in connecting your TV is obtaining the signal. Your TV 40LA45RQ has a back panel, which allows you to receive analog and/or digital television channels via ANT/CABLE jack. Before connecting your TV, determine using an antenna or a cable service to obtain the signal.

  • Page 12: Cable Connections

    Cable Connections Choose Your Connections TV 40LA45RQ supports various connections to other devices (such as DVD, VCR, Set-top box, etc.). Please follow the table to choose the cables which adapt to your device. Jacks Cables Further Information Go to page 12...

  • Page 13: Back Panel Connections

    Back Panel Connections Connecting AV Composite device (Good Video Quality) To connect a composite AV device, such as a DVD player, follow these steps: 1. Connect the Video In jack on the back of TV to the video output jacks of device via video cable (yellow). 2.

  • Page 14: Connecting Ypbpr Component Device (Better Video Quality)

    Back Panel Connections Connecting YPbPr Component device (Better Video Quality) To connect a component device, such as a DVD player, follow these steps: 1. Connect the COMPONENT IN Y/Pb/Pr jack on the back of TV to the video output jacks of device via video cable (green, blue and red).

  • Page 15: Connecting Hdmi Device (Best Video Quality)

    1. Connect the HDMI1/DVI, 2, 3 or 4 jack on the back of TV to the DVI port of device via HDMI-DVI cable. 2. Connect the SOUND/DVI jack on the back of TV to the audio output jack of device with audio cable (dual-channel RCA jacks to 3.5mm stereo jack).

  • Page 16: Connecting A Computer

    2. Connect the SOUND/DVI jack on the back of TV to the audio output jack of computer with audio cable (3.5mm). Note: If you want to use your TV as a monitor, please notice that the maximum resolution for 40LA45RQ is 1920*1080.

  • Page 17: Tv Jacks Explanation

    TV Jacks Explanation HEAD PHONE: Connect a 3.5mm headphone for personal audio. Digital Audio-out: Connect a coaxial cable for digital audio output. HDMI1/DVI, 2, 3, 4: (High-Definition Multimedia Interface) It provides an uncompressed digital connection that carries both video and audio data by way of an integrated mini-plug cable. AUDIO OUTPUT L/R: Connect double-channel coaxial cables for analog audio output.

  • Page 18: Side Keypad And Front Panel

    Side Keypad and Front Panel Side Keypad Buttons If you cannot locate your remote, you can use the side keypad buttons on your TV to operate many TV features. Displays the Source Select List. INPUT: MENU: Displays the TV Main Menu. CH : Scans up through the channel list.

  • Page 19: Remote Control Instructions

    Remote Control Instructions Inserting Batteries in the Remote • Remove the cover of battery cabin on the back of the remote control by lifting the cover. • Insert two AAA batteries, making sure the polarities (+ and -) are aligned correctly. •...

  • Page 20: Learning About Remote Control

    Learning about Remote Control Remote Control Buttons ): Reduces the TV volume to its minimum level. Press again to restore the volume. MUTE ( CH LIST POWER ( ): Turns the TV on or off. CH.LIST: Displays the channel list. FAV.: Adds the current channel to your favorite list, or erases the current channel from your favorite list (if this channel is a favorite channel already).

  • Page 21: Initial Setup

    PICTURE PICTURE SOUND SOUND CHANNEL PARENTAL CHANNEL PARENTAL SETUP SETUP OTHERS OTHERS Analog Channels Found: Digital Channels Found:...

  • Page 22: Basic Operations

    Basic Operations Turning On and Off Connect the AC cord to power the LCD TV. At this time the TV will enter standby mode and power indicator will turn red. Use Power button ( ) on the top panel of TV or on the remote control to turn on the TV. After switching off the TV for 5 seconds, you can turn on TV again.

  • Page 23: Channel Bar

    Basic Operations Channel Bar Press the DISPLAY button on the remote control, the channel bar will appear on the top right corner of the screen. It displays the current channel’s information. The following list describes the items on the channel bar. D50 - 1 KOCE-HD English...

  • Page 24: Osd Menu Operations

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Picture Settings Screen Size Wide PC Settings Color Temperature Warm Advanced Picture Settings PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Picture Mode Standard Brightness Contrast Color Tint Sharpness...
  • Page 25 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Picture Settings Screen Size Wide PC Settings Color Temperature Warm Advanced Picture Settings PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Auto Adjust Execute Horizontal Position Vertical Position Clock Phase Reset Execute PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Dynamic Contrast...

  • Page 26: Sound Menu

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Sound Settings Surround Mode Auto Volume Analog Sound Stereo Digital Sound English Digital Audio Output Equalizer Settings PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Sound Mode Standard Bass Treble Balance...

  • Page 27: Channel Menu

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Mode PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Channel List Favorite List Channel Settings Signal Type Auto Channel Search PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Channel Skip Favorite Label D50-1 KOCE-HD D50-2 KOCE-SD D50-3 KOCE-LB...

  • Page 28: Parental Menu

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Lock Parental Control V-Chip Change Password Keypad Lock Source Lock Clear Channel List PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS US V-Chip Canada V-Chip Block Unrated Show Downloadable Rating Clear Downloadable Data...
  • Page 29 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS PG-13 NC-17 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA...
  • Page 30 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS 8 ans+ 13 ans+ 16 ans+ 18 ans+...
  • Page 31 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Old PIN New PIN Confirm PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Component HDMI 1 HDMI 2 HDMI 3 HDMI 4...

  • Page 32: Setup Menu

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Closed Caption Menu Language English Menu Transparency Video style Video Clock Initial Setup Wizard PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Caption Display Analog Caption Type Digital Caption Type Service1 Digital CC Preset Default Digital CC Style...
  • Page 33 PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS CC Size Default CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color Default CLOSE CAPTION PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Time Zone Eastern Auto Clock Setup Time 1980-01-06 18:49:24 Day of Week Daylight Saving Time...

  • Page 34: Others Menu

    PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS Blue Back No Signal Power Off No Operation Power Off All Reset Execute Execute Audio Only...

  • Page 35: Frequently Asked Questions (Faqs)

    Frequently Asked Questions (FAQs) What’s the most convenient way to view High Definition (HD) video? Connect an antenna to the TV Input jack to view free local digital channels. You may need to purchase an antenna. (See page 10 for more information about antenna setup). Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital channels available to you.

  • Page 36: Troubleshooting

    Troubleshooting Identifying Problems If there are any problems when using the product, please consult the list below. If the list does not solve the problem, call our Customer Service Center immediately. TV Problems The TV can’t be turned on. • Make sure the AC cord is plugged in. •...
  • Page 37 Keep your TV unplugged for about 5 minutes. Then plug in the TV and turn it on. See if the problem is fixed. If the problem remains, then please visit the Customer Support Menu at www.rca.com or updated FAQs or contact...

  • Page 38: V-Chip Rating Explanations

    V-Chip Rating Explanations US V-Chip Rating System TV-MA (Mature Audience Only): Specifically designed to be viewed by adults and may be unsuitable for children under 17. It contains one or more of the following content themes: crude indecent language (L), explicit sexual activity (S), or graphic violence (V). TV-14 (Parents Strongly Cautioned): Contains some material that many parents would find unsuitable for children under 14.

  • Page 39: Canadian French Rating System

    V-Chip Rating Explanations C8+ (Children 8 and older): Programming generally considered acceptable for children 8 years and over to watch on their own. Violence Guidelines: Violence will not be portrayed as the preferred, acceptable, or only way to resolve conflict or encourage children to imitate dangerous acts which they may see on television.

  • Page 40: Wall Mounting Unit Speciļ¬cation

    Wall Mounting Unit Specification Model Unit Dimension (unit:mm) Screw 40LA45RQ VESA 400 x 200 M6 screws, length 14mm 400 mm 200 mm Note: A. The wall mount is not contained in the accessories sold with television. We only provide the installing specifications but not the wall mount itself.

  • Page 41: Usb Media Play

    Do not turn off the TV or disconnect USB storage device while the TV is playing back picture or music. This may result in loss of data or damage to the USB storage device, and RCA is not responsible for any damage to, or loss of, data on the USB...

  • Page 42: Product Speciļ¬cation

    Product Specification Model 40LA45RQ Diagonal Display Size 40 inches Television System American TV standard ATSC/NTSC system Channel Coverage VHF: 2~13 UHF: 14~69 CATV: 1~135 Storage Temperature is -20℃~+60℃ (-4℉~+140℉) Temperature Operating Temperature is 0℃~+50℃ (+32℉~+122℉) Storage Humidity: Less than 85% RH (No condensation)

  • Page 43: Warranty Card

    H o w t o O b ta i n S erv i ce • For assistance (U.S.A) - if you purchased RCA product in U.S. A, please call 1-888-977-6722. Or visit www.rca.com •...
  • Page 44 THIS W A RRANT Y GIVE S YO U SPEC I FI C LEGA L RIGHT S AN D YO U AL S O MA Y HA V E OTH E R RIGHTS TH A T VARY FROM STATE TO STATE. RCA is a trademark of RCA T rademark Management SAS and used under license by ON Corporatio n...
  • Page 45 D u r a n t e u n p e r í...
  • Page 46 E l e m en t o s no c ubie r t o s por la g a r a n tía l imit a da Su g arantí a li m ita d a n o cubre los si g ui e n t es tem a s: Un- i n s t a l a c i ó...
  • Page 47 10920 Via Frontera, Ste 540 San Diego, CA 92127, U.S.A. 2012 ON Corporation RCA is a trademark of RCA Trademark Management SAS used under license to ON Corporation. RCA es una marcade RCA Trademark Management SAS usada bajo licencia de ON Corporation.
