GE JD750SFSS Dimensions And Installation Information

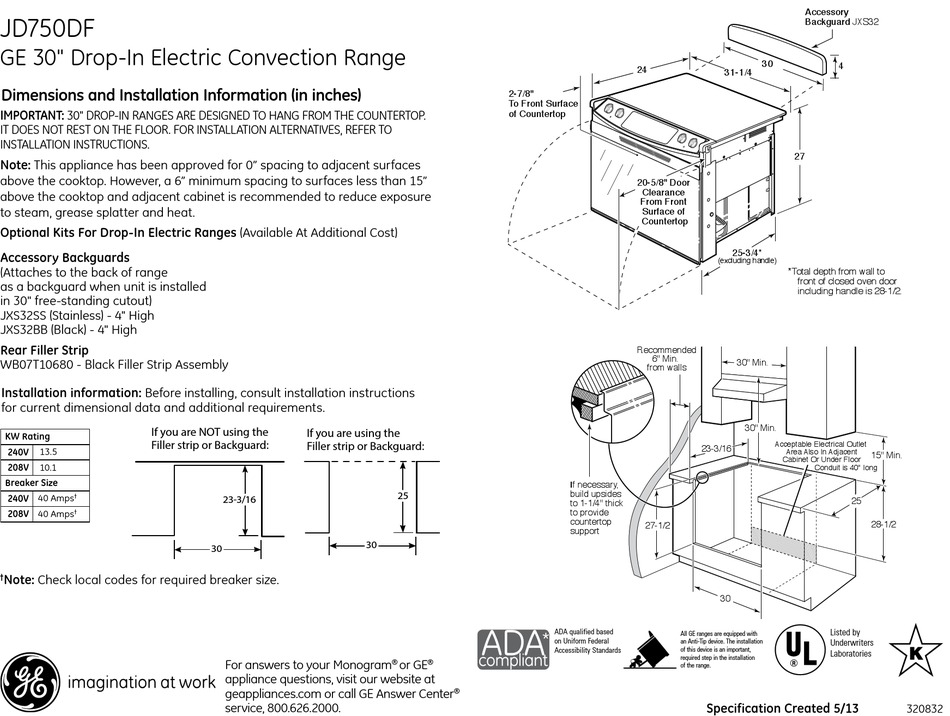

JD750DF
GE 30" Drop-In Electric Convection Range
Dimensions and Installation Information (in inches)
IMPORTANT: 30" DROP-IN RANGES ARE DESIGNED TO HANG FROM THE COUNTERTOP.
IT DOES NOT REST ON THE FLOOR. FOR INSTALLATION ALTERNATIVES, REFER TO
INSTALLATION INSTRUCTIONS.
Note: This appliance has been approved for 0" spacing to adjacent surfaces
above the cooktop. However, a 6" minimum spacing to surfaces less than 15"
above the cooktop and adjacent cabinet is recommended to reduce exposure
to steam, grease splatter and heat.
Optional Kits For Drop-In Electric Ranges (Available At Additional Cost)
Shave Raised Edge To Clear
Accessory Backguards
31-1/8" Wide Control Panel
(Attaches to the back of range
Excluding Model JSS28
as a backguard when unit is installed
in 30" free-standing cutout)
9/16
JXS32SS (Stainless) - 4" High
JXS32BB (Black) - 4" High
30 " Mi n. Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
Acceptable
Electrical
Outlet Area
Installation information: Before installing, consult installation instructions
15" Min.
for current dimensional data and additional requirements.
If you are NOT using the
KW Rating 25
Filler strip or Backguard:
240V 13.5
208V 10.1
Breaker Size
240V 40 Amps
†
7-1/2
208V 40 Amps
†
2-1/2
Note: Check local codes for required breaker size.
†
If you are using the
Filler strip or Backguard:
24
31-1/4
If you are NOT using the
Filler strip or Backguard:
23-3/16
30
If you are using the
Filler strip or Backguard:
23-3/16
30
30
Accessory
Backguard JXS32
For answers to your Monogram
4
25
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
30
2-7/8"
To Front Surface
of Countertop
If necessary,
build upsides
25
to 1-1/4" thick
to provide
countertop
support
ADA qualified based
*
on Uniform Federal
Accessibility Standards
® or GE ®
®
30
24
31-1/4
20-5/8" Door
Clearance
From Front
Surface of
Countertop
25-3/4*
(excluding handle)
*Total depth from wall to
Recommended
6" Min.
30" Min.
from walls
30" Min.
Acceptable Electrical Outlet
23-3/16
Area Also In Adjacent
Cabinet Or Under Floor
27-1/2
30
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
24
2-7/8"
Specification Created 5/13
To Front Surface
of Countertop
Accessory
Backguard JXS32
4
27
front of closed oven door
including handle is 28-1/2.
15" Min.
Conduit is 40" long
25
28-1/2
Accessory
Listed by
Backguard JXS32
Underwriters
Laboratories
4
31-1/4
320832
