GE JBS45DFBB Dimensions And Installation Information

JBS45DF
GE 30" Free-Standing Electric Range
®

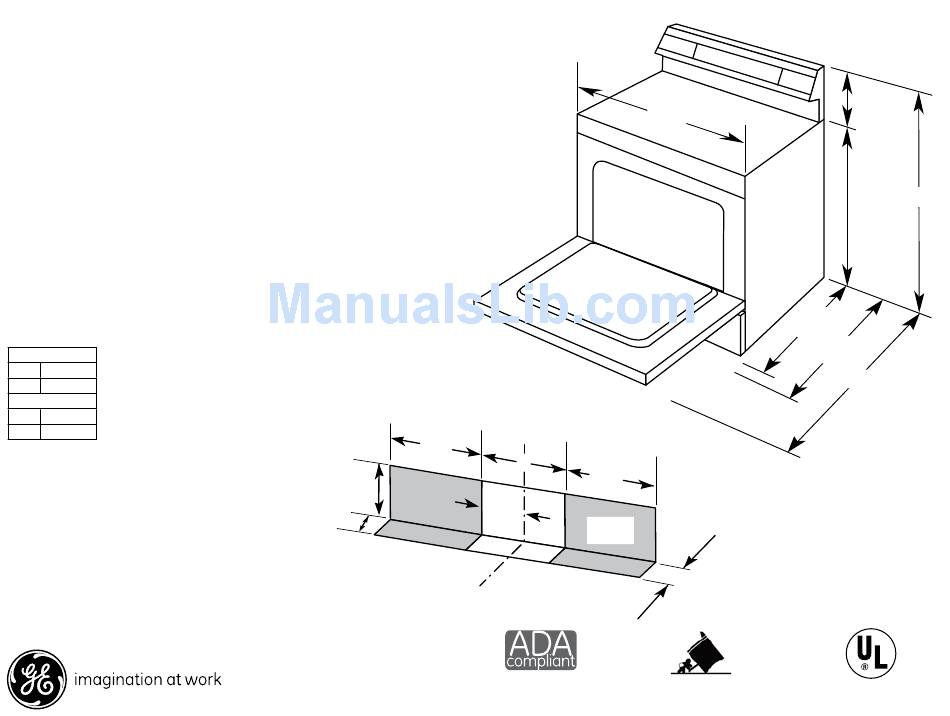

Dimensions and Installation Information (in inches)

Receptacle Locations

Locally approved flexible service cord or conduit must be used
because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly
against wall.
Note: This appliance has been approved for 0" spacing to
adjacent surfaces above the cooktop. However, a 6" minimum
spacing to surfaces less than 15" above the cooktop and
adjacent cabinet is recommended to reduce exposure to
steam, grease splatter and heat.
Installation Information: Before installing, consult installation
instructions for current dimensional data and additional
requirements.

KW Rating

240V 10.2
208V
7.7

Breaker Size

240V 40 Amps
†
208V 40 Amps
†
Note: Check local codes for required breaker size.
†
29-7/8
7-1/2
5
2-1/4
CENTER LINE
11
For answers to your Monogram or GE
®
appliance questions, visit our website at
36
geappliances.com or call GE Answer Center 47
to
service, 800.626.2000.
36-1/2
7
7-1/2
3-1/2
REAR
WALL
* * ADA qualified based
on Uniform Federal
Accessibility Standards
®
®
29-7/8
26-1/4
w/o handle
28-3/4
w/handle
2-1/4
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 6/13
5
2-1/4
C
11
36
47
to
36-1/2
46-1/4
Listed by
Underwriters
Laboratories
321549
