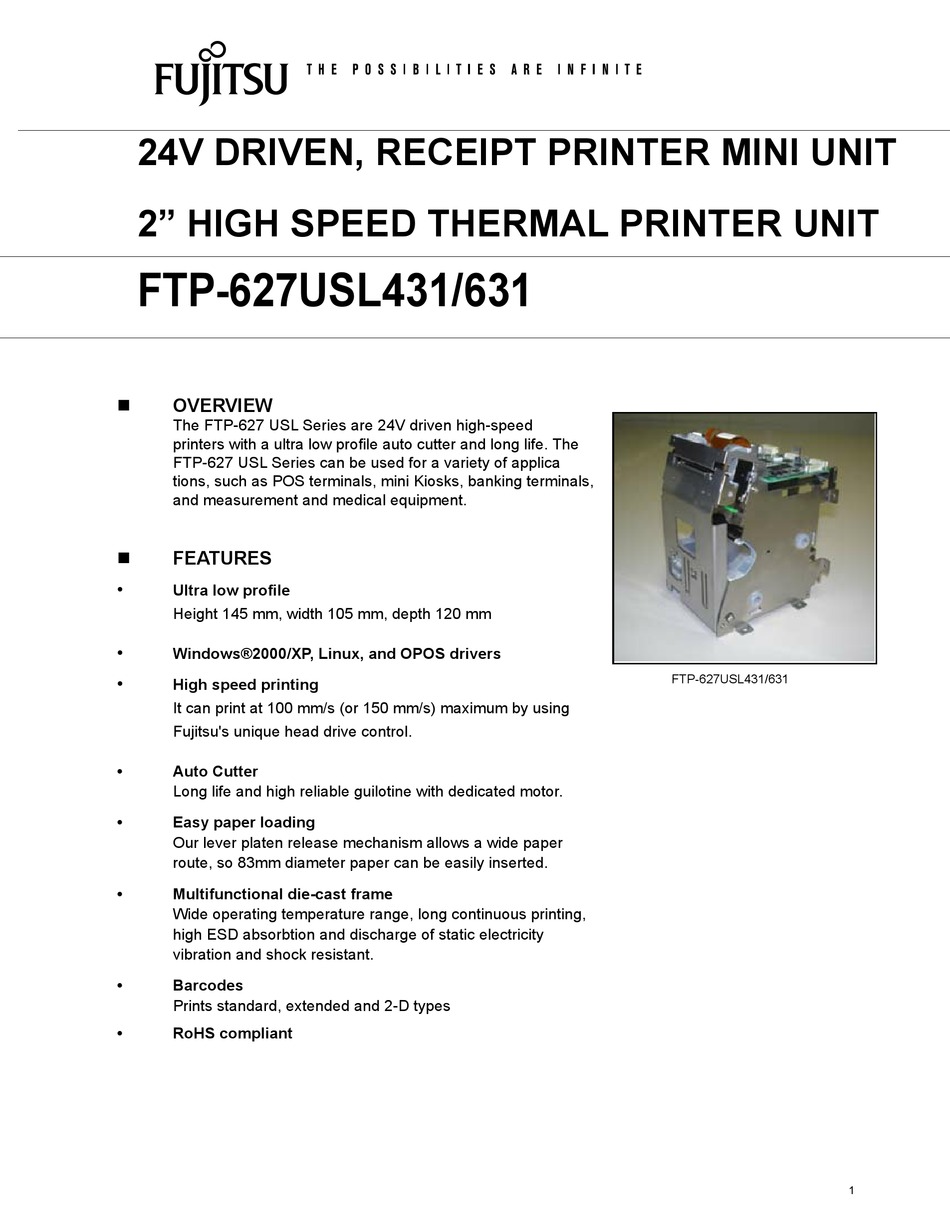

24v driveN, reCeiPT PriNTer MiNi UNiT
2" high SPeed TherMaL PriNTer UNiT
FTP-627USL431/631
Overview
The FTP-627 USL Series are 24V driven high-speed
printers with a ultra low profile auto cutter and long life. The
FTP-627 USL Series can be used for a variety of applica
tions, such as POS terminals, mini Kiosks, banking terminals,
and measurement and medical equipment.
FeaTUreS
•
Ultra low profile
Height 145 mm, width 105 mm, depth 120 mm
•
Windows®2000/XP, Linux, and OPOS drivers
•
High speed printing
It can print at 100 mm/s (or 150 mm/s) maximum by using
Fujitsu's unique head drive control.
•
Auto Cutter
Long life and high reliable guilotine with dedicated motor.
•
Easy paper loading
Our lever platen release mechanism allows a wide paper
route, so 83mm diameter paper can be easily inserted.
•
Multifunctional die-cast frame
Wide operating temperature range, long continuous printing,
high ESD absorbtion and discharge of static electricity
vibration and shock resistant.
•
Barcodes
Prints standard, extended and 2-D types
•
RoHS compliant
FTP-627USL431/631
FTP-627USL431/631
Advertisement
Related Manuals for Fujitsu FTP-627USL431
Summary of Contents for Fujitsu FTP-627USL431
- Page 1 24v driveN, reCeiPT PriNTer MiNi UNiT 2” high SPeed TherMaL PriNTer UNiT FTP-627USL431/631 Overview The FTP-627 USL Series are 24V driven high-speed printers with a ultra low profile auto cutter and long life. The FTP-627 USL Series can be used for a variety of applica tions, such as POS terminals, mini Kiosks, banking terminals, and measurement and medical equipment. FeaTUreS • Ultra low profile Height 145 mm, width 105 mm, depth 120 mm • Windows®2000/XP, Linux, and OPOS drivers • High speed printing It can print at 100 mm/s (or 150 mm/s) maximum by using Fujitsu's unique head drive control. •...
-
Page 2: Part Numbers
Part number Printing method Dot structure Dot pitch (Horizontal) Dot pitch (Vertical) Effective printing area Number of columns Paper width Paper diameter Paper thickness USL4xx Printing Speed USL6xx Character types Character, dimensions (W×H), number of columns Standard Extended Barcodes Printing mode FTP-627USL431/631 Part Number FTP-627USL431/631 (USB Interface) FTP-627USL435/635 (Serial Interface) FTP-627USL440/640 (USB /Serial) FTP-627Y203 FTP-628Y302 FTP-629Y301 FTP-629Y401 FTP-629Y601 Specifications FTP-627USL431/435 FTP-627USL631/635 Thermal-line dot method 432 dots/line 0.125 mm (8 dots/mm)—Dot density 0.125 mm (8 dots/mm)—Line feed pitch 54 mm ANK 36 columns/line (maximum 12 x 24 dot font) 58 mm 83 mm 60 to 100 µ m (some paper in this range may not be used because of... - Page 3 Mechanism MTBF Circuit board Operating temperature* Operating Operating humidity environment Storage temperature* Storage humidity Head temperature detection Detection Paper out /mark function detection Platen release Recommended thermal sensitive paper *+5˚C to +40˚C printing density assurance rance. FTP-627USL431/631 Specification FTP-627USL431/435 FTP-627USL631/635 Conforms to USB / Serial 24 VDC average current, 0.5A (0.9A peak) (print ratio: 12.5%, print speed: 100mm/sec.) 24 VDC ±5%, 0.8 A maximum 24 VDC ±5%, 1.1 A maximum 5 VDC ±5%, 0.2 A maximum 101 x 114 x 139mm (WxDxH) Approximately 600g Pulse resistance: 100 million pulses/dot (under out standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio: 12.5% or less) 100km (print ratio: 12.5% or less) 500,000 cuts (20 cuts/minute) 1,000,000 cuts 5,000 (open/close) 3,000 hours 500, 000 hours 0˚C to 50˚C...
- Page 4 Connectors on Control Board Name CN +24V power supply connector Connection for +24V power supply CN2 RS-232C connector CN USB I/F connector CN5 Cutter connector CN6 Operation panel connector CN7 Near end sensor connector CN9 Logic power connector CN10 Head/motor connector Note: *1: Option *2: Depends on P/N y t i Functions Connection for serial interface Connection for USB interface Connection for paper cutter Connection for operation panel Connection for near end switch Connection for +5V power Supply Connection for thermal head & paper feed motor 2-inch, 24 pin FTP-627USL431/631 y t i Remarks Note...
- Page 5 FTP-627USL431/631 diMeNSiONS 1. FTP-627USL431/435 FTP-627 Unit Paper ø8 Unit: mm Note: 1. The cable size and FPC are not included in this drawing. 2. Do not mount anything in the shaded area except the printer. 3. Connect to the body with 2 screws at 2 hooks.
- Page 6 FTP-627USL431/631 diMeNSiONS 1. FTP-627USL440 FTP-627 Unit Paper ø8 Unit: mm Note: 1. The cable size and FPC are not included in this drawing. 2. Do not mount anything in the shaded area except the printer. 3. Connect to the body with 2 screws at 2 hooks.
- Page 7 ESC % + n ESC & +y+c1+c2+x+d1to dn ESC *+m+n1+n2+d1+dN ESC - +n ESC 2 ESC +n ESC ? + n ESC @ ESC A+n ESC C+n ESC D+d1+dN +NUL ESC E+n ESC J+n ESC K+n ESC L ESC Q+n+!+j ESC R+n ESC S ESC T+n ESC V+n FTP-627USL431/631 Contents Moves print position to the next tab. Line feed. Feeds forms (new page). Data printing in page printing mode. Sets reverse printing. Resets reverse printing. Character spacing setting. Sets print mode. Absolute position spacing. External registration character specification/cancellation. External registration character definition. Sets bit image mode. Undeline setting. Sets 1/6 inch line feed length. Sets the line feed length. External registration character deletion. Printer initialization. Sets the space between the line.
- Page 8 ECS s+n ECS t+n ESC {+n ESC DEL+n FS !+n FS & FS-+n FS *+ m+n1+n2+d1 to dn FS . FS 2+c1+c2+d1 to dn FS 9+n FS C+n FS E+n FS S+n+n1+n2 FS W+n FS r+n* FS-r+n GS!+n FTP-627USL431/631 Contents Page printing mode printing area setting. Setting the turning time of the motor excitation. Program download. Relative position setting. Positional alignment. Sets internal processing. Panel switch enable/disable setting. Printing and n-line feeding. n lines reverse feed. Full cut Partial cut Sets printing speed. Character code table selection. Sets/resets upside down printing. Flash memory delete Kanji printing mode collective specification. Kanji printing mode specification. Kanji underline specification/cancellation.
- Page 9 GS E+n GS H+n GS L+n1+n2 GS M+n GS W + n1 + n2 GS Y +n1 + n2 G a+n GS e+n+m GS f + n GS h+n y) GS k+m +d1to dk + NUL x) GS k+m+n+ d1 to dn GS k+m+k1+k2+k3+k4+{[p1][d(1,1)] ~ [d(1,i)} ~ {[pi][d(i,1)]~[d(i,j)} [00]16 GS k+m+k1+k2+k3+k4+k5+d1~dn GS k+m+k1+k2+k3+k4+k5+k6+d1~dn GS v GS w+n GS (+c+m1, n2, m+fn+6 +d1~dn These commands are valid with FTP-627DSL600 series. FTP-627USL431/631 Contents Vertical absolute position specification in page printing mode. Registered bit image definition. Registered bit image printing. Registered bit image definition. Registered bit image printing. Line feeds to the next mark. Sets the line feed length after mark detection. Angle setting of bar code. Sets print quality. HRI character printing position selection. Left margin position setting. Printer ID demand. Printing area width setting. Vertical relative position specification in page printing mode (vertical direction of characters). Automatic notification setting status. Sets bar code width. HRI character font selection.
