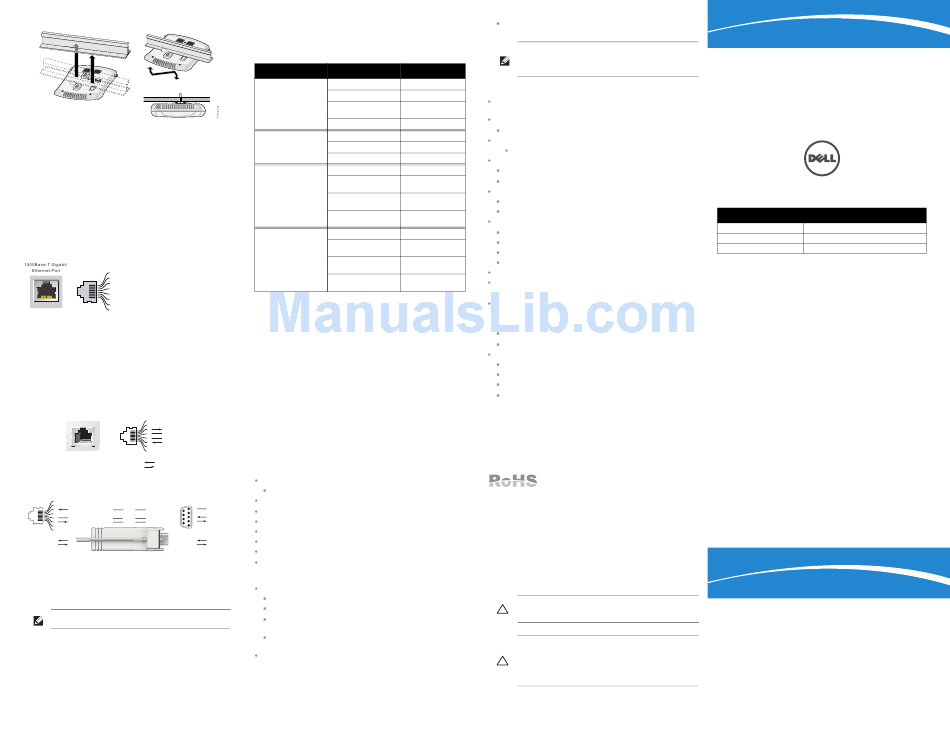

Access Point - Dell PowerConnect W-AP92 Installation Manual

Figure 5
Orienting the Ceiling Tile Rail Mounting Slots
4. Pushing toward the ceiling tile, rotate the AP clockwise until the device clicks into
place on the ceiling tile rail.
Connecting Required Cables
Install cables in accordance with all applicable local and national regulations and
practices.
Ethernet Ports
The RJ45 Ethernet port (ENET) supports 10/100/1000Base-T auto-sensing MDI/
MDX connections. Use these ports to connect the AP to a twisted pair Ethernet LAN
segment or directly to an Dell Controller. Use a 4- or 8-conductor, Category 5 UTP
cable up to 100 m (325 feet) long.
The 10/100/1000 Mbps Ethernet port is on the back of the AP. The port has an RJ-45
female connector with the pin-outs shown in .
Figure 6
Gigabit Ethernet Port Pin-Out
RJ-45 Female Signal Name Function
Pin-Out
BI_DA+
1 Bi-directional pair +A
2 BI_DA- Bi-directional pair -A
BI_DB+ Bi-directional pair +B
3
BI_DC+
4 Bi-directional pair +C
5 BI_DC- Bi-directional pair -C
6 BI_DB- Bi-directional pair -B
BI_DD+
7 Bi-directional pair +D
8 BI_DD- Bi-directional pair -D
Serial Console Port
The serial console port (Console) allows you to connect the AP to a serial terminal or
a laptop for direct local management. This port is an RJ-45 female connector with the
pinouts described in Figure 7. Connect this port directly to a terminal or terminal
server using an Ethernet cable.
Use a modular adapter to convert the RJ-45 (female) connector on the AP to a DB-9
(male) connector, and connect the adapter to a laptop using an RS-232 cable. See
Figure 8 for connector details of the adapter.
Figure 7
Serial Port Pin-Out
Serial RJ-45 Female
Console Port Pin-Out
1
2
3
TxD
4 GND
5
GND
6 RxD
7
8
Direction
Input
Output
Figure 8
RJ-45 (Female) to DB-9 (Male) Modular Adapter Conversion
RJ-45 Female Internal DB-9 Male
Pin-Out Connections Pin-Out
1
RJ-45 DB-9
2
5
3 TxD 3 2
TxD 9
4
4 4
8
3
5 5
GND GND 5 7
2
6 6 3
RxD RxD 6
7 1
8
Direction Direction
Input Input
Output Output
Power Connection
The W-AP90 Series has a single 12V DC power jack socket to support powering
through an AC-to-DC power adapter.
Note: If both POE and DC power are available, the AP uses POE even when there is
not enough POE voltage available to power the AP.
Verifying Post-Installation Connectivity
.The integrated LEDs on the AP can be used to verify that the AP is receiving power
and initializing successfully (see Table 1). Refer to the ArubaOS Quick Start Guide
for further details on verifying post-installation network connectivity
LED Color/State
PWR Off
Green flashing
Red steady
Green steady
ENET Off
(10/100/1000 Mbps)
Green on
Amber on
11A/N Off
Amber
Green
Green flashing
11B/G/N Off
Amber
Green
Green flashing
Configuring the W-AP90 Series
AP Provisioning/Reprovisioning
Provisioning parameters are unique to each AP. These local AP parameters are
initially configured on the controller which are then pushed out to the AP and stored
on the AP itself. Dell recommends that provisioning settings be configured via the
ArubaOS Web UI only. Refer to the ArubaOS User Guide for complete details.
AP Configuration
Configuration parameters are network or controller specific and are configured and
stored on the controller. Network configuration settings are pushed out to the AP(s)
but remain stored on the controller.
Configuration settings can be configured via the ArubaOS Web UI, ArubaOS CLI, or
Dell MMS. Refer to their respective guides for further details: the ArubaOS User
Guide or Dell Mobility Management System User Guide.
Product Specifications
Mechanical
Dimensions (HxWxD):
4.7 inches x 5.1 inches x 1.4 inches (12.0 cm x 13.0 cm x 3.5 cm)
Weight: 375g/0.82 lbs.
Ground Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
RxD
Storage Temperature: –10ºC to 70ºC (14ºF to 158ºF)
TxD
Relative Humidity: 5% to 95% non-condensing
Altitude: 3,000 m @ 50ºC (122ºF)
Mounting: Wall or ceiling
Visual Status Indicators (LEDs): See Table 1
Electrical
Ethernet:
1 x 10/100/1000Base-T auto-sensing Ethernet RJ-45 Interfaces
MDI/MDX
IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-T). IEEE 802.3ab (1000Base-
T)
Power over Ethernet (IEEE 802.3af compliant), 48V DC/350mA (see
for pin configuration)
Power:
12 VDC power interface, supports powering through an AC-to-DC power
adapter
Note: If a power adapter other than the one provided by Dell Networks is used in
the US or Canada, it should be cULus (NRTL) Listed, with an output rated 12 VDC,
minimum 1.25A, marked "LPS" or "Class 2," and suitable for plugging into a stan-
Meaning dard power receptacle in the US and Canada.
No power to AP
Wireless LAN
System initializing
Network Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11a, and
System failed to initialize,
IEEE 802.11n (draft)
contact TAC
Antenna Type (W-AP92):
Power on, device ready
2x dual-band antenna connectors (RP-SMA)
No link
Antenna Type (W-AP93):
1000 Mbps link
2x 802.11a/b/g/n, internal
10/100 Mbps link
Antenna Gain (Integrated Antennas):
5 GHz radio is disabled
2.4 – 2.5 GHz/2.5 dBi (max)
5 GHz radio enabled in 5.180 – 5.825 GHz/5.8 dBi (max)
WLAN mode
Radio Technology
5 GHz radio enabled in 11n
Orthogonal Frequency Division Multiplexing (OFDM)
mode
Direct Sequence Spread Spectrum (DSSS)
5 GHz Air Monitor or RF
Protect mode Radio Modulation Type:
802.11b - CCK, BPSK, QPSK
2.4 GHz radio disabled
802.11g - CCK, BPSK, QPSK,16-QAM, 64-QAM
2.4 GHz radio enabled in
WLAN mode
802.11a - BPSK, QPSK,16-QAM, 64-QAM
2.4 GHz radio enabled in 11n 802.11n draft 2.0
mode
Media Access Control: CSMA/CA with ACK
2.4 GHz Air Monitor or RF
Supported Frequency Bands 2.4GHz:
Protect mode
2.400 ~ 2.4835GHz (Global), channels country specific
Supported Frequency Bands 5GHz:
5.150 ~ 5.250GHz (low band), country-specific
5.250 ~ 5.350GHz (mid band), country-specific
5.470 ~ 5.725GHz (Europe), country-specific
5.725 ~ 5.825GHz GHz (high band), country-specific
Data Rates:
802.11b - 1, 2, 5.5, 11 Mbps per channel
802.11g - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel
802.11a - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel
802.11n - Data rate MCS0 – MCS15 (from 6.5 Mbps to 300 Mbps)
Proper Disposal of Dell Equipment
For the most current information on Global Environmental Compliance and Dell
products please refer to the Dell PowerConnect W-Series Safety, Environmental, and
Regulatory Information document or see our website at www.dell.com.
European Union RoHS
Dell products also comply with the EU Restriction of
Hazardous Substances Directive 2002/95/EC (RoHS). EU
RoHS restricts the use of specific hazardous materials in the
manufacture of electrical and electronic equipment. Specifically, restricted materials
under the RoHS Directive are Lead (including Solder used in printed circuit
assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Dell
products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in
solder used in printed circuit assemblies). Products and packaging will be marked
with the "RoHS" label shown at the left indicating conformance to this Directive.
Safety and Regulatory Compliance
Dell provides a multi-language document containing country specific restrictions and
additional safety and regulatory information for all Dell hardware products. The Dell
PowerConnect W-Series Safety, Environmental, and Regulatory Information document
is included with this product.
Caution: Dell access points must be installed by a professional installer. The
professional installer is responsible for ensuring that grounding is available and it
meets applicable local and national electrical codes.
Figure 6
Caution: RF Radiation Exposure Statement: This equipment complies with FCC RF
radiation exposure limits. This equipment should be installed and operated with a
minimum distance of 7.87 inches (20cm) between the radiator and your body for
2.4 GHz and 5 GHz operations. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. When operated in
the 5.15 to 5.25 GHz frequency range, this device is restricted to indoor use.
Dell PowerConnect W-AP90 Series

Access Point

Installation Guide
Contacting Support
Web Site Support
Main Site www.dell.com
Support Site https://support.dell.com
Dell Documentation https://support.dell.com/manuals
Copyright
© 2010 Aruba Networks, Inc. AirWave®, Aruba Networks®, Aruba Mobility Management
System®, and other registered marks are trademarks of Aruba Networks, Inc. Dell™,
the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
All rights reserved. Specifications in this manual are subject to change without notice.
Originated in the USA. Any other trademarks appearing in this manual are the property of
their respective companies.
Open Source Code
Certain Aruba products include Open Source software code developed by third parties,
including software code subject to the GNU General Public License (GPL), GNU Lesser
General Public License (LGPL), or other Open Source Licenses. The Open Source code
used can be found at this site:
http://www.arubanetworks.com/open_source
