Dell PowerConnect W-AP120 Series AP
Installation Guide
The Dell W-AP120 series of wireless access points support the imminent IEEE 802.11n (currently draft 2.0)
standard for high-performance WLAN. These access points use MIMO (Multiple-in, Multiple-out) technology
and other high-throughput mode techniques to deliver high-performance, pre-802.11n 2.4 GHz and 5 GHz
functionality while simultaneously supporting existing 802.11a/b/g wireless services. The W-AP120 series access
points are available in versions with single or dual radios and with integrated antennas or RP-SMA interfaces that
support detachable antennas. The W-AP120 series access points work only in conjunction with an Dell controller.
The Dell W-AP120 series access points provide the following capabilities:
Wireless transceiver
Protocol-independent networking functionality
IEEE 802.11a/b/g or 802.11n operation as a wireless access point
IEEE 802.11a/b/g or 802.11n operation as a wireless air monitor
Compatibility with IEEE 802.3af PoE as well as high power over Ethernet pre-standards
(PoE + / 802.3at)
Central management configuration and upgrades through an Dell controller
Upgrade of W-AP120 series a/b/g models to 802.11n (draft) compliance through a controller license

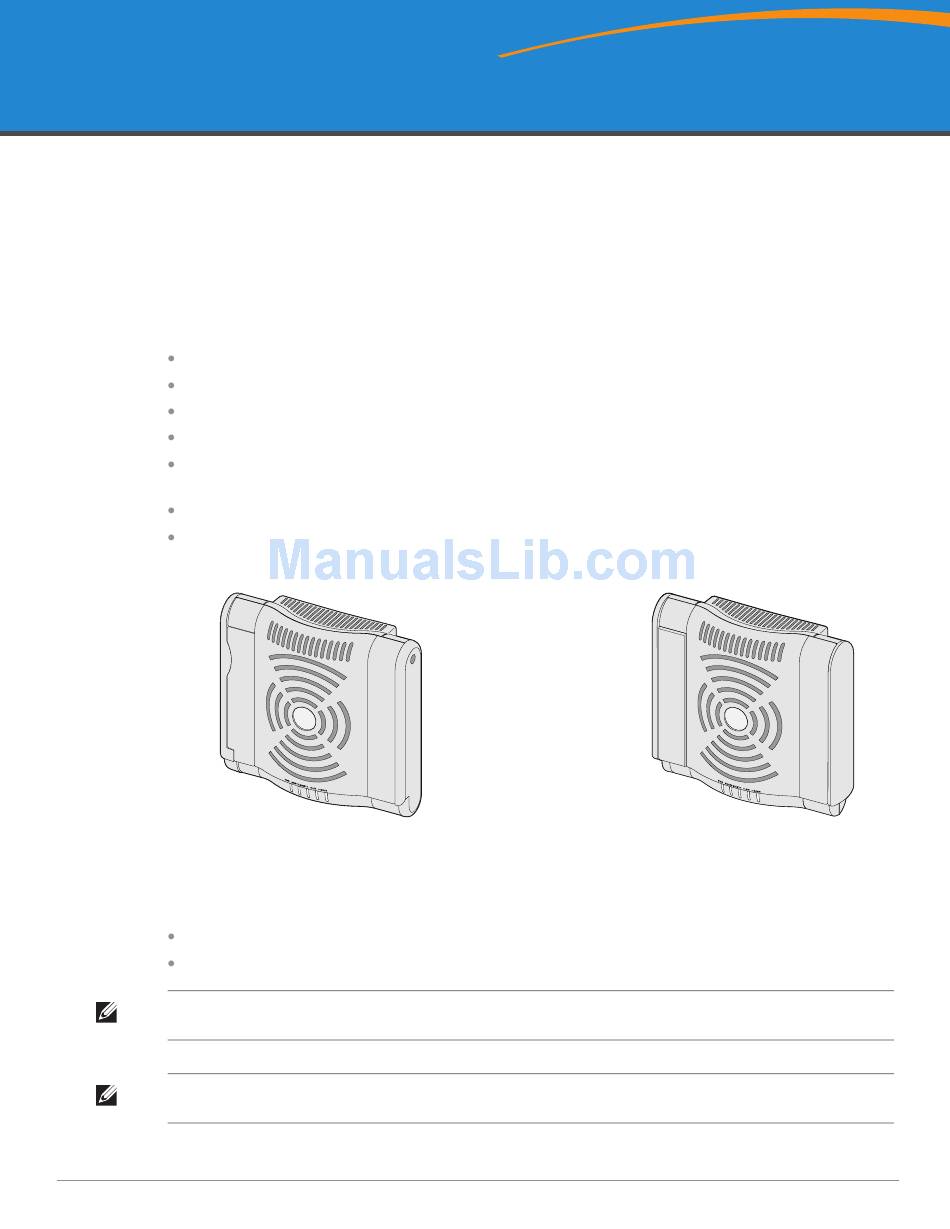

Figure 1
W-AP120 Series Access Points
(3 x RP-SMA interfaces for detachable antennas)
Package Contents
AP-120 series access point
Installation guide (this document)
Note: Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original
packing materials. Use these materials to repack and return the unit to the supplier if needed.
Note: Additional mounting kits for use with the W-AP120 series access points are sold separately. Contact your Dell sales
representative for details.
0510745-01 | July 2010
W-AP120/W-AP124
W-AP121/W-AP125
(3 x integrated dual-band antennas)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dell PowerConnect W-AP124
Summary of Contents for Dell PowerConnect W-AP124
-
Page 1: Package Contents
Note: Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed. Note: Additional mounting kits for use with the W-AP120 series access points are sold separately. Contact your Dell sales representative for details. -
Page 2: Before You Begin
Before You Begin WLAN Planning Determine how many Dell APs are needed for your wireless network deployment and where they will be installed. You can easily accomplish this planning using Dell’s automated RF Plan site-survey software (available separately). This process is considered WLAN or RF planning and should have been completed during the master Dell controller installation and configuration. -
Page 3: Verifying Pre-Installation Connectivity
5. Configure each AP. Note: Dell, in compliance with governmental requirements, has designed the AP-120 series access points so that only authorized network administrators can change the settings. For more information about AP configuration, refer to the ArubaOS Quick Start Guide and ArubaOS User Guide. -
Page 4: Installing The Ap
Installing the AP Caution: Installation and service of Dell Networks products should be performed by Professional Installers. Additional antenna and transmit power information for Professional Installers can be found at https://support.dell.com. Using the Integrated Wall-Mounting Slots The keyhole-shaped slots on the back of the AP can be used to attach the device upright to an indoor wall or shelf. -
Page 5: Using The Integrated Ceiling Tile Rail Slots
4. Pushing toward the ceiling tile, rotate the AP clockwise until the device clicks into place on the ceiling tile rail. 5. On the W-AP121 or W-AP125, orient the antennas. For best results, rotate the antennas so that they are vertical (perpendicular to the body of the AP) (see Figure Dell PowerConnect W-AP120 Series AP | Installation Guide... -
Page 6: Connecting Required Cables
The RJ45 Ethernet ports (ENET0 and ENET1) support 100/1000Base-T auto-sensing MDI/MDX connections. Use these ports to connect the AP to a twisted pair Ethernet LAN segment or directly to an Dell controller. Use a 4- or 8-conductor, Category 5 UTP cable up to 100 m (325 feet) long. -
Page 7: Power Connection
The W-AP120 series AP has a single 5V DC power jack socket to support powering through an AC-to-DC mains electric power adapter. Note: If both POE and DC power are available, the AP uses POE, even when there is not enough POE voltage available to power the Dell PowerConnect W-AP120 Series AP | Installation Guide... -
Page 8: Connecting A Security Cable
Provisioning parameters are unique to each AP. These local AP parameters are initially configured on the controller which are then pushed out to the AP and stored on the AP itself. Dell recommends that provisioning settings be configured via the ArubaOS Web UI only. Refer to the ArubaOS User Guide for complete details. -
Page 9: Product Specifications
5 VDC power interface, supports powering through an AC-to-DC mains electric power adapter Note: If a power adapter other than the one provided by Dell is used in the US or Canada, it should be cULus (NRTL) Listed, with an output rated 5 VDC, minimum 4A, marked “LPS”... -
Page 10: Wireless Lan
802.11g - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel 802.11a - 6, 9, 12, 18, 24, 36, 48 and 54 Mbps per channel 802.11n - Data rate MCS0 – MCS15 (from 6.5 Mbps to 300 Mbps) Dell PowerConnect W-AP120 Series AP | Installation Guide... -
Page 11: Proper Disposal Of Dell Equipment
Battery Replacement Caution: Batteries included with Dell products must be replaced by qualified Dell service personnel only. Contact Dell for battery replacement. Do not attempt to replace the battery. There is a risk of explosion if you install the wrong type of battery. Dispose of batteries according to the instructions. - Page 12 Wireless That Works®, Mobile Edge Architecture®, People Move. Networks Must Follow®, RFprotect®, The All Wireless Workplace Is Now Open For Business, Green Island, and The Mobile Edge Company® and other registered marks are trademarks of Aruba Networks, Inc. Dell™, the DELL™ logo, and PowerConnect™ are trademarks of Dell Inc.
