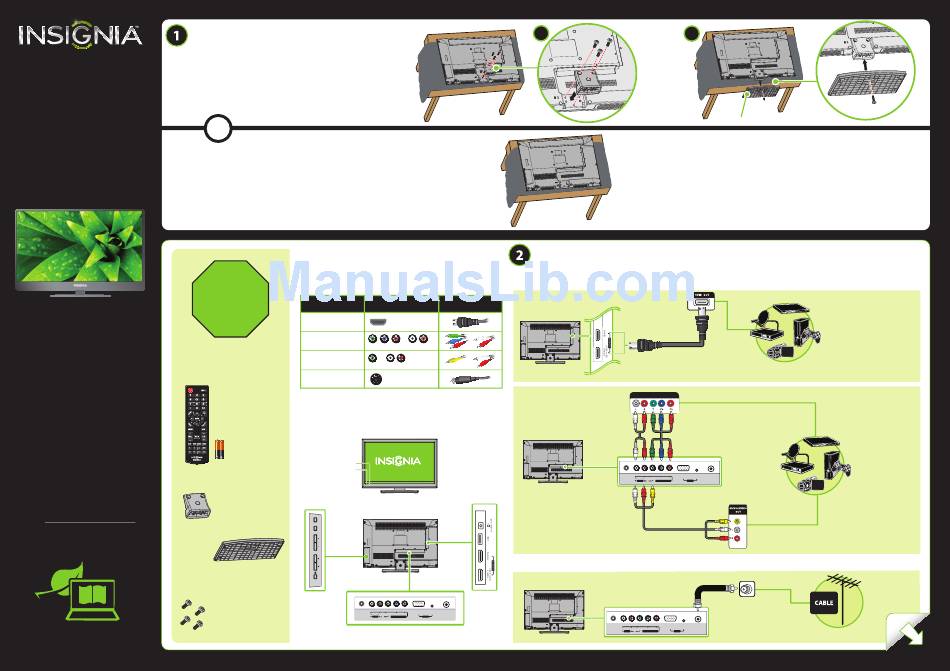

Insignia NS-22E400NA14 Quick Setup Manual

QUICK SETUP
GUIDE
22" LED TV
NS-22E400NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
Stand column
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface
to protect the screen from damages and scratches.
B Align the stand column with the TV, then secure the stand column to the
TV using three of the provided screws.
C Align the TV stand with the stand column, then secure the TV stand to
the stand column with one of the provided screws.
Note: The appearance of your TV may differ from the illustrations in this guide.
- OR -

How do I prepare my TV for wall mounting?

• Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages
and scratches. See the instructions that came with your wall mount for more information
about how to correctly mount your TV.
Which cables do you have?
Your TV has several different jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cable in until
all other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI 1/DVI jack to connect a DVI device to your TV. Attach an
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack. See your online User Guide for more information about different types of
Remote control
HDMI (ARC and DVI).
and two AAA batteries
Features
Front view
Power indicator
Remote control sensor
Back view
MENU
INPUT
VOL
CH
TV stand
M4 screws (14mm length)
DIGITAL
OUTPUT
(COAXIAL)
(4 pcs.)
Note: Images do not necessarily represent the exact design of your television.
B
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game console, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable
(GOOD)

How do I connect my TV to an antenna or cable wall jack?

VGA PC/DVI AUDIO IN ANT/
L AUDIO R Y/VIDEO P B P R CABLE IN
AV IN COMPONENT IN PC IN
Before using your new product, please read these instructions to prevent any damage.
C
TV stand
COMPONENT OUT
Component cable option
DIGITAL VGA PC/DVI AUDIO IN ANT/
L AUDIO R Y/VIDEO P P CABLE IN
OUTPUT B R
AV IN COMPONENT IN PC IN
(COAXIAL)
AV cable option
DIGITAL VGA PC/DVI AUDIO IN ANT/
L AUDIO R Y/VIDEO P P
OUTPUT B R CABLE IN
(COAXIAL) AV IN COMPONENT IN PC IN
Multi-purpose jacks: You can plug any
device that uses HDMI into either HDMI
jack. However, an ARC or DVI device
must be connected to the
HDMI1 (DVI+ARC) that came with your
ARC or DVI device for more information.
Note: The HDMI1 (DVI+ARC) jack is a
shared jack. This means that you can
connect only one ARC or DVI device at a
time.
Note: The component video and AV
jacks are shared. This means you can
connect only one component video or
AV device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video cable
connector to the green Y/VIDEO jack
on the back of your TV.
OVER
