ASROCK Z87 Extreme9/ac User Manual

ASROCK Z87 Extreme9/ac User Manual

User manual
Hide thumbs Also See for Z87 Extreme9/ac:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z87 Extreme9/ac and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Z87 Extreme9/ac

Summary of Contents for ASROCK Z87 Extreme9/ac

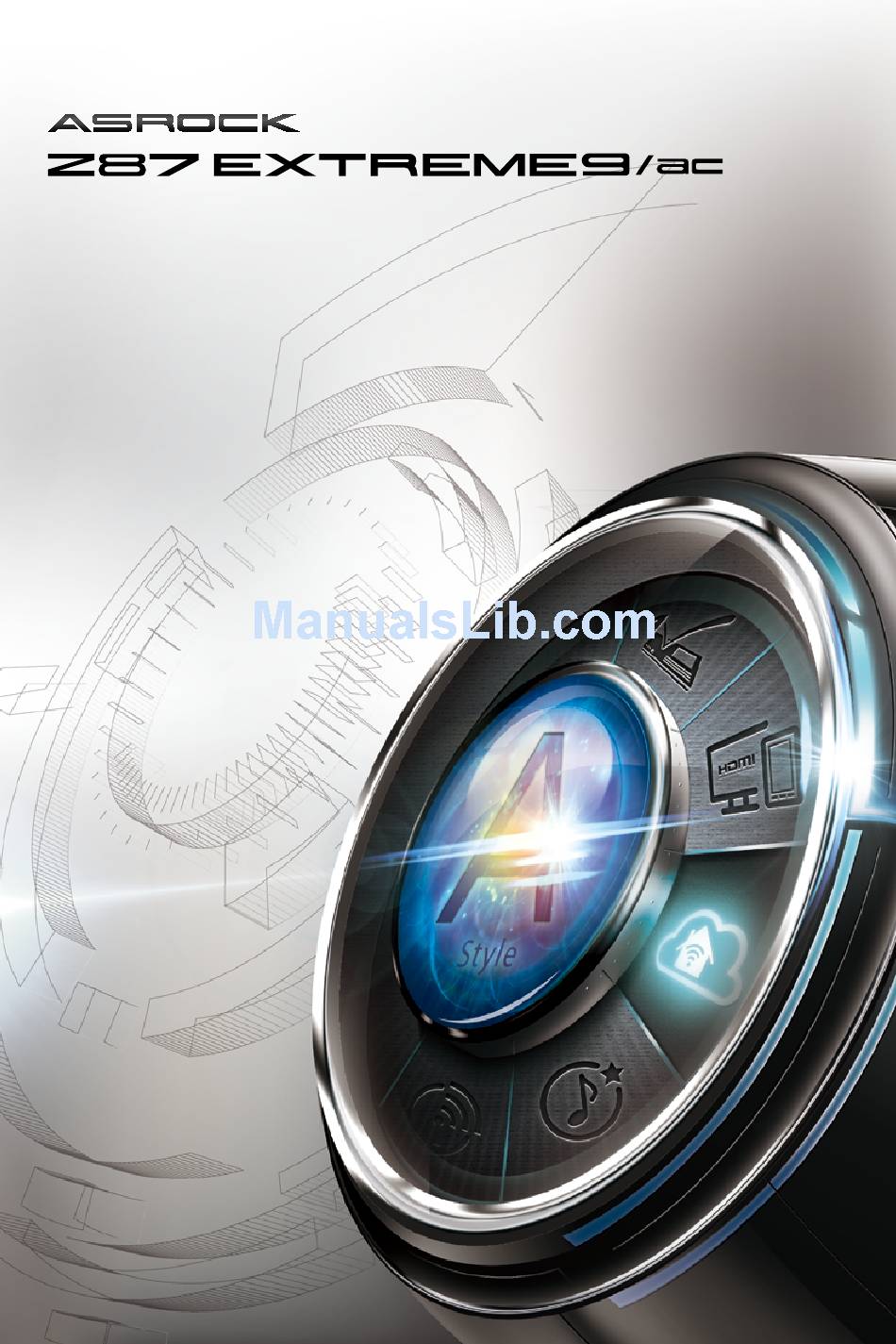

  • Page 1 User Manual...

  • Page 2: Copyright Notice

    (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 The terms HDMI™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535; 7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together is a registered trademark &...

  • Page 4: Table Of Contents

    Package Contents Specifications Unique Features Motherboard Layout I/O Panel WiFi + BT Module and ASRock Wi-SD Box Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI and PCI Express Slots)
  • Page 5 2.10 CrossFireX , 3-Way CrossFireX , 4-Way CrossFireX Quad CrossFireX Operation Guide 2.10.1 Installing Two CrossFireX -Ready Graphics Cards 2.10.2 Installing Three CrossFireX -Ready Graphics Cards 2.10.3 Installing Four CrossFireX -Ready Graphics Cards 2.10.4 Driver Installation and Setup 2.11 Thunderbolt 2.12 Dual LAN and Teaming Operation Guide Chapter 3 Software and Utilities Operation...
  • Page 6 4.4.1 CPU Configuration 4.4.2 Chipset Configuration 4.4.3 Storage Configuration 4.4.4 Intel® Rapid Start Technology 4.4.5 Intel® Smart Connect Technology 4.4.6 Intel® Thunderbolt 4.4.7 Super IO Configuration 4.4.8 ACPI Configuration 4.4.9 USB Configuration Tools Hardware Health Event Monitoring Screen Boot Screen Security Screen Exit Screen...

  • Page 7: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 8: Specifications

    • Dual-Stack MOSFET (DSM) ® • Supports Intel Turbo Boost 2.0 Technology ® • Supports Intel K-Series unlocked CPUSupports • ASRock BCLK Full-range Overclocking ® Chipset • Intel Memory • Dual Channel DDR3 Memory Technology • 4 x DDR3 DIMM slots • Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/...
  • Page 9 Z87 Extreme9/ac Expansion • 5 x PCI Express 3.0 x16 slots (PCIE1/PCIE2/PCIE3/PCIE4/ Slot PCIE6: single at x16 (PCIE2); dual at x16 (PCIE1) / x16 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE3) / x16 (PCIE4); quad at x8 (PCIE1) / x8 (PCIE3) / x8 (PCIE4) / x8 (PCIE6)) * PCIE1, PCIE3, PCIE4 and PCIE6 slots will be disabled if PCIE2 slot is occupied.
  • Page 10 Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) • Premium Blu-ray audio support • Supports Purity Sound™ - 115dB SNR DAC with differential amplifier - TI® NE5532 Premium Headset Amplifier (supports up to 600 Ohms headsets) - Direct Drive Technology - EMI shielding cover - PCB isolate shielding...
  • Page 11 Z87 Extreme9/ac Storage • 6 x SATA3 6.0 Gb/s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug • 4 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, sup-...
  • Page 12 Due to limitation, the actual memory size may be less than 4GB for the reservation for sys- tem usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

  • Page 13: Unique Features

    LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more. ASRock Instant Flash ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This conve- nient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility.
  • Page 14 And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
  • Page 15 Windows® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.
  • Page 16 ASRock Distortion-Free Slot ASRock's new pin design for the memory slots may appear to be the same as former designs, but actually effectively reduces distortion and promotes performance, because we strive for perfection even in the most trivial details.

  • Page 17: Motherboard Layout

    Z87 Extreme9/ac 1.4 Motherboard Layout CHA_FAN3 CPU_FAN1 CPU_FAN2 PWR_FAN1 ATX12V1 ATX12V2 RJ-45 RJ-45 LAN2 LAN1 USB 3.0 T: USB0 B: USB1 USB 3.0 T: USB2 B: USB3 USB 3.0 T: USB4 B: USB5 CHA_FAN2 PCIE1 RoHS PCIE2 Purity Sound PCIE3...
  • Page 18 No. Description Chassis Fan Connector (CHA_FAN3) ATX 12V Power Connector (ATX12V1) ATX 12V Power Connector (ATX12V2) CPU Fan Connector (CPU_FAN1) CPU Fan Connector (CPU_FAN2) Power Fan Connector (PWR_FAN1) 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1) 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2) ATX Power Connector (ATXPWR1) USB 3.0 Header (USB3_6_7) (ASMedia Hub) USB 3.0 Header (USB3_8_9) (ASMedia Hub)

  • Page 19: I/O Panel

    Z87 Extreme9/ac 1.5 I/O Panel No. Description No. Description USB 2.0 Ports (USB01) Microphone (Pink) LAN RJ-45 Port (Intel® I211AT)* Optical SPDIF Out Port Display Port Input (HDMI_DP_1) Clear CMOS Button eSATA Connector*** Thunderbolt Port (TBT1) USB 3.0 Ports (USB3_23)
  • Page 20 * There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED LAN Port SPEED LED SPEED LED LAN Port ACT/LINK LED Activity / Link LED Speed LED Status Description Status Description...

  • Page 21: Wifi + Bt Module And Asrock Wi-Sd Box

    Z87 Extreme9/ac 1.6 WiFi + BT Module and ASRock Wi-SD Box WiFi + BT Module This motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.0 module that offers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth v4.0. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter to support WiFi + BT.
  • Page 22 ASRock Wi-SD Box Thanks to the excellent placement of antennas, ASRock Wi-SD Box comes with two invisible antennas (placed in a vertical/horizontal position), hidden inside the front panel that provides the most stable and unrestricted-direction wireless network coverage, optimized for maximum broadband network. Additionally, it provides four Front USB 3.0 ports for easier USB 3.0 device access, 1 SD Card slot and 1 rack...
  • Page 23 Plug the Front USB 3.0 cable into the USB 3.0 header on the Wi-SD Box. Step 3 If you have 2.5” HDD/SSDs, you may insert up to two and secure them in ASRock Wi-SD Box with screws. Step4 Install ASRock Wi-SD Box into the drive bay of...
  • Page 24 Step 5 Screw ASRock Wi-SD Box to the drive bay with screws. Step 6 Attach the cords to the WiFi + BT module on your motherboard. Step 7 Connect the floppy drive 4 pin power connector to the Wi-SD Box.

  • Page 25: Chapter 2 Installation

    Z87 Extreme9/ac Chapter 2 Installation This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 26: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 27 Z87 Extreme9/ac...
  • Page 28 Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

  • Page 29: Installing The Cpu Fan And Heatsink

    Z87 Extreme9/ac 2.2 Installing the CPU Fan and Heatsink...

  • Page 30: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs. 2.
  • Page 31 Z87 Extreme9/ac...

  • Page 32: Expansion Slots (Pci And Pci Express Slots)

    2.4 Expansion Slots (PCI and PCI Express Slots) There are 6 PCI Express slots and 1 mini-PCI Express slot on the motherboard. Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 33: Jumpers Setup

    Z87 Extreme9/ac 2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 34: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power PLED+ PLED-...
  • Page 35 Z87 Extreme9/ac Power LED Header Please connect the chassis (3-pin PLED1) power LED to this header PLED- PLED+ PLED+ (see p.11, No. 23) to indicate the system’s power status. Serial ATA3 Connectors These ten SATA3 (SATA3_0_1: connectors support SATA see p.11, No. 14)
  • Page 36 USB 3.0 Headers Besides six USB 3.0 ports Vbus Vbus Vbus IntA_PB_SSRX- (19-pin USB3_6_7) on the I/O panel, there IntA_PA_SSRX- IntA_PB_SSRX+ IntA_PA_SSRX+ (see p.11, No. 10) are two headers on this IntA_PB_SSTX- IntA_PA_SSTX- IntA_PB_SSTX+ (19-pin USB3_8_9) motherboard. Each USB IntA_PA_SSTX+ IntA_PB_D- (see p.11, No.
  • Page 37 Z87 Extreme9/ac Chassis and Power Fan Please connect fan cables FAN_SPEED_CONTROL Connectors to the fan connectors and CHA_FAN_SPEED +12V (4-pin CHA_FAN1) match the black wire to (see p.11, No. 18) the ground pin. (3-pin CHA_FAN2) (see p.11, No. 33) (3-pin CHA_FAN3) (see p.11, No.
  • Page 38 SLI/XFIRE Power Please connect this Connector connector with a hard (4-pin SLI/XFIRE_ disk power connector PWR1) when two graphics cards (see p.11, No. 30) are installed on this motherboard. Infrared Module Header This header supports an optional IRTX +5VSB DUMMY (5-pin IR1) wireless transmitting and (see p.11, No.

  • Page 39: Smart Switches

    Z87 Extreme9/ac 2.7 Smart Switches The motherboard has three smart switches: Power Switch, Reset Switch and Clear CMOS Button, allowing users to quickly turn on/off the system, reset the system or clear the CMOS values. Power Switch Power Switch allows users...

  • Page 40: Dr. Debug

    2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description Please check if the CPU is installed correctly and then clear CMOS.
  • Page 41 Z87 Extreme9/ac Problem related to USB devices. Please try removing all USB devices. Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the problem still exists, please install only one memory module or try using other memory modules.

  • Page 42: Sli Tm , 3-Way Sli Tm , 4-Way Sli Tm And Quad Sli Tm Operation

    2.9 SLI , 3-Way SLI , 4-Way SLI and Quad SLI Operation Guide ® This motherboard supports NVIDIA , 3-way SLI , 4-way SLI and Quad (Scalable Link Interface) technology that allows you to install up to four ® identical PCI Express x16 graphics cards. Currently, NVIDIA and Quad ®...
  • Page 43 Z87 Extreme9/ac Step 3 Align and insert the ASRock SLI_ Bridge_3S Card to the goldfingers on each graphics card. Make sure the ASRock SLI_ Bridge_3S Card is firmly in place. SLI_Bridge_3S Card ASRock SLI_Bridge_3S Card Step 4 Connect a VGA cable or a DVI cable to the...

  • Page 44: Installing Three Sli Tm -Ready Graphics Cards

    PCI Express graphics card are connected. Repeat this step on the three graphics cards. Step 3 Align and insert the ASRock 3-Way SLI Bridge Card to the goldfingers on each graphics card. Make sure the ASRock 3-Way SLI Bridge Card is firmly in place.
  • Page 45 Z87 Extreme9/ac Step 4 Step 4 Connect a VGA cable or a DVI cable to the Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of monitor connector or the DVI connector of...

  • Page 46: Installing Four Sli Tm -Ready Graphics Cards

    PCI Express graphics card are connected. Repeat this step on the three graphics cards. Step 3 Align and insert an ASRock SLI Bridge Card to the goldfingers of the first and second graphics card. Install the second ASRock SLI Bridge Card to the goldfingers of the third and fourth graphics card.
  • Page 47 Z87 Extreme9/ac Step 4 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of the graphics card that is inserted to PCIE1 slot.

  • Page 48: Driver Installation And Setup

    2.9.4 Driver Installation and Setup Install the graphics card drivers to your system. After that, you can enable the ® Multi-Graphics Processing Unit (GPU) in the NVIDIA nView system tray utility. Please follow the below procedures to enable the multi-GPU. Step 1 Double-click the NVIDIA Control Panel ®...

  • Page 49: Tm Tm Tm

    Z87 Extreme9/ac 2.10 CrossFireX , 3-Way CrossFireX , 4-Way CrossFireX Quad CrossFireX Operation Guide This motherboard supports CrossFireX , 3-way CrossFireX , 4-way CrossFireX and Quad CrossFireX that allows you to install up to four identical PCI Express x16 graphics cards. Currently CrossFireX...

  • Page 50: Installing Three Crossfirex

    Step 3 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connec- tor of the graphics card that is inserted to PCIE2 slot. 2.10.2 Installing Three CrossFireX -Ready Graphics Cards Step 1 Insert one graphics card into PCIE1 slot, another graphics card to PCIE3 slot, and the other graphics card to PCIE4 slot.

  • Page 51: Installing Four Crossfirex Tm -Ready Graphics Cards

    Z87 Extreme9/ac 2.10.3 Installing Four CrossFireX -Ready Graphics Cards Step 1 Insert one graphics card into PCIE1 slot, another graphics card into PCIE3 slot, the third graphics card into PCIE4 slot and the last graphics card into PCIE6 slot. Make sure that the cards are properly seated on the slots.

  • Page 52: Driver Installation And Setup

    2.10.4 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. The Catalyst Uninstaller is an optional download. We recommend using this utility to un- install any previously installed Catalyst drivers prior to installation.

  • Page 53: Thunderbolt

    Z87 Extreme9/ac 2.11 Thunderbolt This motherboard has two thunderbolt connectors that support video output from internal VGA. Due to 32-bit OS limitations, we strongly recommend using a 64-bit OS to bring ThunderBolt into full play. For thunderbolt display installation please follow the steps below: 1.

  • Page 54: Dual Lan And Teaming Operation Guide

    2.12 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images.

  • Page 55: Chapter 3 Software And Utilities Operation

    Z87 Extreme9/ac Chapter 3 Software and Utilities Operation 3.1 Installing Drivers The Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN”...

  • Page 56: A-Tuning

    3.2 A-Tuning A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more. 3.2.1 Installing A-Tuning When you install the all-in-one driver to your system from ASRock’s support CD, A-Tuning will be auto-installed as well.
  • Page 57 Z87 Extreme9/ac Tools Various tools and utilities. XFast RAM Boost the system’s performance and extend the HDD’s or SDD’s lifespan! Create a hidden partition, then assign which files should be stored in the RAM drive. Good Night LED Switch off the Power/HDD/LAN LEDs when the system is on, and automatically switch off the Power and Keyboard LEDs when the system enters into Standby/ Hibernation mode.
  • Page 58 OC Tweaker Configurations for overclocking the system. System Info View information about the system. Tech Service Contact Tech Service.

  • Page 59: Intel® Rapid Start Technology

    Z87 Extreme9/ac 3.3 Intel® Rapid Start Technology Intel® Rapid Start Technology enables your system to wake up faster from deep sleep, saving time and power consumption. Feel secure to know that your system will resume to working condition even if an unexpected power loss happens while the PC is in sleep mode.

  • Page 60: Setup Guide

    3.3.2 Setup Guide Configuring Rapid Start Step 1 Run ASRock Rapid Start utility from Start -> All Programs -> ASRock Utility. Step 2 If you have more than one hard drives in your system, you must select one, then choose the Partition Size desired for your hidden partition and click on Create. The system will automatically create a hidden partition according to your settings.
  • Page 61 Z87 Extreme9/ac Step 3 When prompted to restart after the setup, click Yes to reboot. Step 4 Double-click the Intel® Rapid Start Technology Manager icon in the Windows system tray.
  • Page 62 Step 5 Make sure Rapid Start is on. Drag the slider to configure the time. For example, if the timer value is set to ten minutes, the system will enable Rapid Start mode after entering sleep state for ten minutes. If the timer is set to 0 minutes, Windows will immediately enable Rapid Start mode as it enters sleep state.
  • Page 63 Z87 Extreme9/ac state for a period of time. The power of the computer in Rapid Start mode can be cut off, it will not cause data loss of the programs or files you were executing before entering sleep state. When you wish to continue to use the computer just hit the power button, the system will rapidly return to Windows, the programs and files which you were using before entering sleep state will be accessible immediately.

  • Page 64: Intel® Smart Connect Technology

    3.4 Intel® Smart Connect Technology Intel® Smart Connect Technology is a feature that periodically wakes your computer from Windows® sleep state to refresh email or social networking applications. It saves your waiting time and keeps the content always up-to-date. 3.4.1 System Requirements •...
  • Page 65 3.4.2 Setup Guide Installing ASRock Smart Connect Utility Step 1 Install ASRock Smart Connect Utility, which is located in the folder at the following path of the Support CD: \ ASRock Utility > Smart Connect. Step 2 Once installed, run ASRock Smart Connect from your desktop or go to Windows...
  • Page 66 Step 3 Click the Add button. Take Foxmail as an example, add Foxmail to the Application list. Step 4 Select Foxmail from the Application List, then click the arrow pointing right to add this application to the Smart Connect List. Step 5 Click Apply to enable Smart Connect.
  • Page 67 Z87 Extreme9/ac Step 6 Double-click the Intel® Smart Connect Technology Manager icon in the Windows system tray. Step 7 Drag the slider to configure how often the system will connect to the network to download updates. Shorter durations will provide more frequent updates, but may cause more power consumption.
  • Page 68 The system will wake up from sleep state periodically, and then start to update Foxmail. The screen will not display anything so the computer can maintain minimum power usage. Afterwards, the system will automatically return to sleep state again. Upon waking up the system, you will find the new mail that were sent to you during sleep state are already updated and ready to be read in Foxmail.

  • Page 69: Intel® Remote Wake Technology

    Z87 Extreme9/ac 3.5 Intel® Remote Wake Technology Intel® Remote Wake Technology allows you to use programs or services over the Internet to wake up your home computer from energy efficient sleep mode. Before configuring this feature, verify the following. •...
  • Page 70 Step 3 A new mesh window will pop up. Enter a mesh name and password. Step 4 Select all the checkboxes and click Create Mesh. Downloading and Installing Mesh Agent Step 1 Click Install on the My Account page. Step 2 Select the mesh and download both files.
  • Page 71 Z87 Extreme9/ac Step 4 Click Install / Update. Step 5 Wait a minute for the New Machine to appear in "My Device".
  • Page 72 Step 6 Check whether "Intel Remote Wake" appeared or not. Waking up Your PC using PC Step 1 On the "My Devices" page, click on Power Actions. Step 2 Click on Wake or Sleep.
  • Page 73 Z87 Extreme9/ac Waking up Your PC Using Mobile Device Before waking up your home computer using a mobile device, please log out of MeshCentral on other previously used computers or devices. Step 1 Login to meshcentral.com/m. Step 2 Select a Machine.

  • Page 74: Configuring And Using Splashtop

    Download and install the Streamer on your home computer, which is located in the folder at the following path of the Support CD: \ ASRock Utility > Splashtop Streamer. Then enter your Splashtop Account. If you have not created a Splashtop acount, create one.

  • Page 75: Using Remote Control

    Z87 Extreme9/ac Using Remote Control Step 1 In "Splashtop 2”, tap an online machine from the list to connect to your home computer. Step 2 Start remotely accessing your home computer. The functionality and price of the Splashtop APP and subscription fee is subject to...
  • Page 76 Accessing Data Playing Video...

  • Page 77: Start8

    3.6.1 Installing Start8 Install Start8, which is located in the folder at the following path of the Support CD: \ ASRock Utility > Start8. 3.6.2 Configuring Start8 Style Select between the Windows 7 style and Windows 8 style Start Menu. Then select...
  • Page 78 Configure Configure provides configuration options, including icon sizes, which shortcuts you want Start Menu to display, quick access to recently used apps, the functionality of the power button, and more. Control...
  • Page 79 Z87 Extreme9/ac Control lets you configure what a click on the start button or a press on the Windows key does. Desktop Desktop allows you to disable the hot corners when you are working on the desktop. It also lets you choose whether or not the system boots directly into desktop mode and bypass the Metro user interface.

  • Page 80: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. Not only will it make BIOS setup less difficult but also a lot more amusing. This section explains how to use the UEFI SETUP UTILITY to configure your system.

  • Page 81: Navigation Keys

    Z87 Extreme9/ac 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 82: Main Screen

    When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Active Page on Entry Select the default page when entering the UEFI setup utility. UEFI Guide UEFI Guide is a quick tutorial for ASRock's UEFI setup Utility. You may abort the tutorial by pressing "esc".

  • Page 83: Oc Tweaker Screen

    Z87 Extreme9/ac 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 84: Spread Spectrum

    CPU Configuration CPU Ratio The CPU speed is determined by the CPU Ratio multiplied with the BCLK. Increasing the CPU Ratio will increase the internal CPU clock speed without affecting the clock speed of other components. CPU Cache Ratio The CPU Internal Bus Speed Ratio. The maximum should be the same as the CPU Ratio.

  • Page 85: Dram Timing Configuration

    Z87 Extreme9/ac Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance.

  • Page 86: Dram Configuration

    DRAM Configuration DRAM Tweaker Fine tune the DRAM settings by leaving marks in checkboxes. Click OK to confirm and apply your new settings. CAS# Latency (tCL) The time between sending a column address to the memory and the beginning of the data in response.
  • Page 87 Z87 Extreme9/ac Command Rate (CR) The delay between when a memory chip is selected and when the first active command can be issued. Write Recovery Time (tWR) The amount of delay that must elapse after the completion of a valid write operation, before an active bank can be precharged.
  • Page 88 tRDRDDR Configure between module read to read delay from different ranks. tRDRDDD Use this to change DRAM tRWSR Auto/Manual settings. The default is [Auto]. tWRRD Configure between module write to read delay. tWRRDDR Configure between module write to read delay from different ranks. tWRRDDD Use this to change DRAM tRRSR Auto/Manual settings.
  • Page 89 Z87 Extreme9/ac IO-L (CHB) Configure IO latency for channel B. ODT WR (CHA) Configure the memory on die termination resistors' WR for channel A. ODT WR (CHB) Configure the memory on die termination resistors' WR for channel B. ODT NOM (CHA) Use this to change ODT (CHA) Auto/Manual settings.

  • Page 90: Voltage Configuration

    CPU Cache Voltage Offset Configure the voltage for the CPU Cache. Setting the voltage higher may increase system stability when overclocking. System Agent Voltage Offset Configure the voltage for the System Agent. Setting the voltage higher may increase system stability when overclocking. CPU Analog IO Voltage Offset CPU I/O Analog Voltage.
  • Page 91 Z87 Extreme9/ac DRAM Voltage Use this to configure DRAM Voltage. The default value is [Auto]. PCH 1.05V Voltage Chipset 1.05V Voltage. Use default settings for best performance. PCH 1.5V Voltage I/O 1.5V Voltage. Use default settings for best performance.

  • Page 92: Advanced Screen

    4.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Storage Configuration, Intel® Rapid Start Technology, Intel® Smart Connect Technology, Intel® Thunderbolt, Super IO Configuration, ACPI Configuration and USB Configuration. Setting wrong values in this section may cause the system to malfunction.

  • Page 93: Cpu Configuration

    Z87 Extreme9/ac 4.4.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package.

  • Page 94: Intel Virtualization Technology

    Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheating. No-Execute Memory Protection Processors with No-Execution Memory Protection Technology may prevent certain classes of malicious buffer overflow attacks.

  • Page 95: Chipset Configuration

    Z87 Extreme9/ac 4.4.2 Chipset Configuration Primary Graphics Adapter Select a primary VGA. VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance.

  • Page 96: Render Standby

    Render Standby Power down the render unit when the GPU is idle for lower power consumption. Onboard HD Audio Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and automatically disable it when a sound card is installed. Front Panel Enable/disable front panel HD audio.

  • Page 97: Storage Configuration

    Z87 Extreme9/ac 4.4.3 Storage Configuration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode Selection IDE: For better compatibility. AHCI: Supports new features that improve performance. RAID: Combine multiple disk drives into a logical unit. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance but IDE mode does not have these advantages.
  • Page 98 Dynamic Storage Accelerator Keep this option enabled for higher HDD and SDD I/O performance, lower latency and increased system responsiveness. Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability.

  • Page 99: Intel® Rapid Start Technology

    Z87 Extreme9/ac 4.4.4 Intel® Rapid Start Technology ® Intel Rapid Start Technology Intel® Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.

  • Page 100: Intel® Smart Connect Technology

    4.4.5 Intel® Smart Connect Technology ® Intel Smart Connect Technology ® Intel Smart Connect Technology automatically updates your email and social networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.

  • Page 101: Intel® Thunderbolt

    Z87 Extreme9/ac 4.4.6 Intel® Thunderbolt Thunderbolt Support Enable/Disable the onboard Thunderbolt ports. Security Level Select Legacy to skip the Windows certification checking process for Thunderbolt devices. Select Unique ID for checking the Windows certification, and show warning messages if the devices aren't certified. Or select DP++ to support DP 1.2.
  • Page 102 TBT Device IO resource Support Enable IO Resource Support if your older Thunderbolt devices have trouble working properly. Thunderbolt PCIe Cache-line Size Configure the cache-line size of the Thunderbolt PCIe subtree.

  • Page 103: Super Io Configuration

    Z87 Extreme9/ac 4.4.7 Super IO Configuration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. Infrared Port Enable or disable the Infrared port.

  • Page 104: Acpi Configuration

    4.4.8 ACPI Configuration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. Check Ready Bit Enable to enter the operating system after S3 only when the hard disk is ready, this is recommended for better system stability.
  • Page 105 Z87 Extreme9/ac Ring-In Power On Allow the system to be waked up by onboard COM port modem Ring-In signals. RTC Alarm Power On Allow the system to be waked up by the real time clock alarm. Set it to By OS to let it be handled by your operating system.

  • Page 106: Usb Configuration

    4.4.9 USB Configuration USB Controller Enable or disable all the USB ports. Intel USB 3.0 Mode Enable or disable all the USB 3.0 ports. Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support.

  • Page 107: Tools

    In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required. UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network configuration before using UEFI Tech Service. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device.

  • Page 108: Instant Flash

    ROM and execute Secure Backup UEFI to duplicate the current working ROM image to the secondary flash ROM. Internet Flash ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you. Please setup network configuration before using Internet Flash.
  • Page 109 Z87 Extreme9/ac Dehumidifier Function If Dehumidifier Function is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state. Dehumidifier Period Configure the period of time until the computer powers on and enables Dehumidifier after entering S4/S5 state.

  • Page 110: Hardware Health Event Monitoring Screen

    4.6 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU Fan 1 & 2 Setting Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU temperatures and assign a respective fan speed for each temperature.

  • Page 111: Boot Screen

    Z87 Extreme9/ac 4.7 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device.
  • Page 112 Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or configure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed. Boot Failure Guard If the computer fails to boot for a number of times the system automatically restores the default settings.
  • Page 113 Z87 Extreme9/ac Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Do not launch? Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only.

  • Page 114: Security Screen

    4.8 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 115: Exit Screen

    Z87 Extreme9/ac 4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save configuration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit...

  • Page 116: Contact Information

    Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
