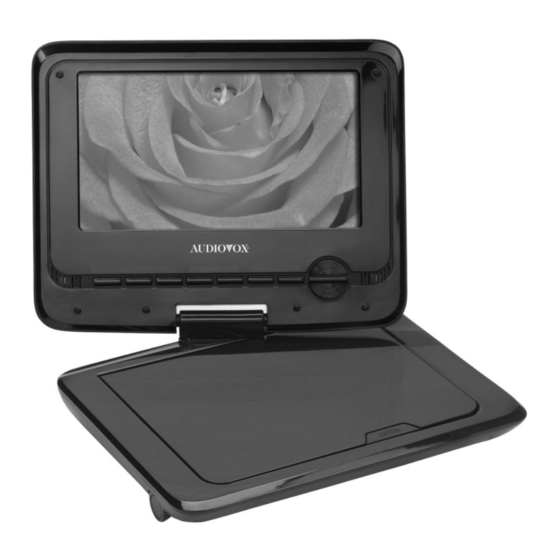

Page 1 DS7321/DS7321PK Portable DVD Player Owner’s Manual...
Page 2: Warnings And Cautions
WARNINGS AND CAUTIONS Notice This Product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Page 3 WARNINGS AND CAUTIONS Placement To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight, or excessive dust. If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit.
Page 4 WARNINGS AND CAUTIONS Headphones Excessive sound pressure from headphones can cause hearing loss. ! Connect earphones or headphones to the headphone jack with the volume set low and increase it if required. When earphones or headphones are connected, no sound will be emitted from the connected speaker system.
Page 5: Table Of Contents
CONTENTS Warnings and Cautions..............2 Contents..................5 Introduction..................6 Vehicle Installation................7 Charging the Battery ..............8 Controls and Indicators..............9 Remote Control Operation.............11 Connecting to a TV...............15 System Setup................16 Playback..................24 Specifications................28 Troubleshooting................29 Owner’s Notes................30 - 5 -...
Page 6: Introduction
INTRODUCTION Thank you for selecting the DS7321/DS7321PK Portable DVD Player. The main features include a 7" Swivel Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD Player. The unit incorporates the latest state-of-the-art electronics and is designed for use in hotels, offices, homes or vehicles.
Page 7: Vehicle Installation
VEHICLE INSTALLATION INSTALLING THE DVD PLAYER ON A SEAT BACK IN A CAR (DS7321PK only) 1. Unfold the carry bag, and place the DVD Player on the bag beneath the elastic straps. Ensure that the unit's corners are secured by the elastic straps. Ensure that the center strap is across the face of the DVD Player.
Page 8: Charging The Battery
8. Do not subject the battery to strong impacts. 9. Keep the battery away from humidity and excessive heat. 10. The battery is not user serviceable. Please contact Audiovox in the event the battery will not charge. - 8 -...
Page 9: Controls And Indicators
CONTROLS AND INDICATORS 1. DISPLAY SCREEN 2. SPEAKER OUTPUT 3. PREVIOUS ( ) BUTTON Press to skip to the previous chapter/track. 4. NEXT ( ) BUTTON Press to skip to the next chapter/track. 5. FAST REWIND ( ) BUTTON Press repeatedly for fast reverse playback.
Page 10 CONTROLS AND INDICATORS 1. 3.5mm HEADPHONE JACK Side View Note: When headphones are connected, no sound will be emitted from the speakers. 2. AV OUT JACK 3. ON/OFF SWITCH Slide the switch to ON position to turn on the unit Slide the switch to OFF position to switch off the unit.
Page 11: Remote Control Operation
REMOTE CONTROL OPERATION BATTERY INSTALLATION/REPLACEMENT Remove the battery compartment cover according to the diagram on the right. 1: Press the ridged area to the left. 2: At the same time, pull the battery tray out. 3: Remove the old CR2025 battery. Replace it with a new CR2025 lithium battery on the tray with the positive side facing upward.
Page 12 REMOTE CONTROL OPERATION 8. SUBTITLE Press repeatedly to switch/show the subtitle(s) or turn off the subtitle function. Note: This function only works with discs encoded with subtitles. 9. PLAY ( Press to start a playback or resume normal playback from fast forward, fast reverse, slow-motion, frame-by-frame playback, etc.
Page 13 REMOTE CONTROL OPERATION 14. A-B REPEAT Press to repeat a specific section of a disc. Press this button to mark down the starting point (A) and press it again to mark down the ending point (B). The unit will play back this section over and over again.
Page 14 REMOTE CONTROL OPERATION 19. NEXT ( )/DOWN Press to skip to the next chapter/track. Press to navigate in a down direction when menu is displayed on the screen. 20. STOP ( Press once to pause a playback, then press Play ( ) to continue playback.
Page 15: Connecting To A Tv
CONNECTING TO A TV This player has an AV OUT jack. You can connect it to a TV for viewing. Use an AV cable (not supplied) to connect the AV OUT jack to the video input terminal, L/R channel audio input terminals of a TV.
Page 16: System Setup
SYSTEM SETUP The System Setup menu allows you to personalize the DVD Player settings to your preference. Once the initial settings are set, they are retained in the DVD player until modified. MENU OPERATION 1. Press the SETUP button on the remote control to show the Setup Menu. 2.
Page 17 SYSTEM SETUP ANGLE MARK This function is available when a disc is encoded with multiple camera angles. Options: Enables the Angle Mark function. When a disc with multiple camera angles is playing, an angle mark will display on the screen. You can then view the video of different camera angles by pressing the ANGLE button on the remote control.
Page 18: Audio Setup Page
SYSTEM SETUP AUDIO SETUP PAGE There is one item in the AUDIO SETUP PAGE - ANALOG AUDIO. ANALOG AUDIO DOWNMIX This function only applies to Dolby AC-3 encoded 5.1-channel discs. Options: LT/RT: The 5.1-channel audio is mixed into the left channel and right channel STEREO: The 5.1-channel audio is mixed into a stereo signal.
Page 19 SYSTEM SETUP DOLBY DIGITAL SETUP PAGE There are two items in the DOLBY DIGITAL SETUP PAGE. They are DUAL MONO and DYMAMIC. DUAL MONO Note: This function only applies to the Dolby AC -3 encoded 2-channel discs. Options: STEREO: The player outputs the left-channel audio and right-channel audio via the left and right speaker respectively.
Page 20: Video Setup Page
SYSTEM SETUP VIDEO SETUP PAGE There are two items in the VIDEO SETUP PAGE. They are COLOR SETTING and PANEL QUALITY. COLOR SETTING The COLOR SETTING menu is used to set up the picture quality when connected to an external TV set Options: SHARPNESS: Adjusts the edge enhancement of the picture.
Page 21: Preference Page
SYSTEM SETUP PREFERENCE PAGE This item is available if there is no disc in the disc tray, the disc tray is open or the disc in the disc tray is stopped. There are eight items in the PREFERENCE PAGE. They are TV TYPE, PBC, AUDIO, SUBTITLE, DISC MENU, PARENTAL, PASSWORD, and DEFAULT.
Page 22 SYSTEM SETUP AUDIO MENU This item allows a user to select a preferred audio language. This function only applies to discs encoded with different audio languages. Options: English, French, Spanish, Chinese, Japanese, Korean, Russian, and Thai. You can also change the audio language by pressing AUDIO on the remote control. Note: If the selected language is not available for the currently playing disc, the disc's default setting is applied.
Page 23 SYSTEM SETUP PASSWORD This item allows a user to access the Password Setup Page. Password Setup Page Options: PASSWORD MODE: You can activate or disable the password function by setting it to ON or OFF. You must key in the correct password and press ENTER to confirm before you can change the option The default password is 3308.
Page 24: Playback
PLAYBACK DVD BASICS To get the optimum use out of the DVD Player, make sure you read this section completely. DVD REGION CODE The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”.
Page 25: Types Of Discs Your Dvd Player Will Play
PLAYBACK TYPES OF DISCS YOUR DVD PLAYER WILL PLAY Your system will play the following types of discs: • DVD* disc - DVD discs which contain video. • VCD disc - VCD discs which contain video. • Audio disc - Audio CDs contain musical or sound content only. •...
Page 26: Mp3 Disc Playback
PLAYBACK MP3 DISC PLAYBACK MP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. The DVD player plays the songs in the order they were burned on to the disc. When playback is started the elapsed time of the track that is playing will be displayed.
Page 27 PLAYBACK KODAK PICTURE CD OR JPEG IMAGE CD PLAYBACK 1. Place a Kodak Picture CD or JPEG image CD in the disc tray. The unit will load the disc automatically. 2. Press STOP ( ) to enter the thumbnail mode to preview the pictures. 3.
Page 28: Specifications
SPECIFICATIONS Compatible DISC DVD/VCD/CD/MP3 Signal system PAL/NTSC 7 inch Panel Size 20 Hz to 20 kHz Frequency response Video output 1 Vp-p 75 Ohm unbalanced 1.2 V (±0.2 V) RMS/10 kOhm Audio output ≥85dB Dynamic range Semiconductor laser, Wavelength: 650 nm/795 nm Laser Power source DC 9-12V...
Page 29: Troubleshooting
TROUBLESHOOTING If your DVD player does not seem to be functioning properly, check the items below before contacting Audiovox Technical Support. Symptom Remedy Cause(s) ● No Power Connect the adapter to the DC input ● The adapter is not connected to the...
Page 30: Owner's Notes
