ATI Technologies V7700 - FireGL 512MB PCI Express Specification

QuickSpecs
Overview
Model Model Model Model

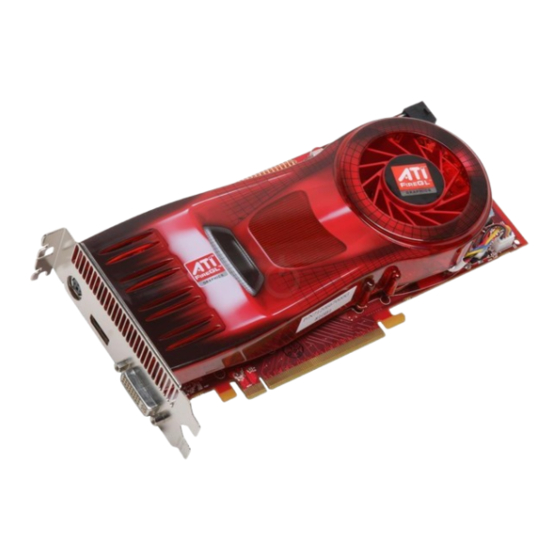

ATI FireGL V7700 512MB PCIe Graphics Card
Introduction Introduction Introduction Introduction
The ATI FireGL™ V7700 graphics accelerator is one of HP's high end workstation graphics solutions featuring a DisplayPort output.
With a full 10-bit display pipeline, the ATI FireGL V7700 is ideally suited for applications that benefit from accurate color
reproduction and superior visual quality.
Based on a new generation GPU with 320 unified shader units, the ATI FireGL V7700 ultra parallel processing architecture
maximizes throughput by automatically directing graphics horsepower where it's needed. Intelligent
management of computational resources enables enhanced utilization of the GPU to enable real-time rendering of complex models
and scenes while increasing frame rate performance when animating.
The ATI FireGL V7700 features a DisplayPort output and a Dual Link DVI output, together generating a multi-monitor desktop of
over 5000 pixels wide.
Performance & Features Performance & Features Performance & Features Performance & Features
Unified Shader Architecture, enabling real-time realistic rendering of more complex datasets
Support for DirectX 10.1 and OpenGL 2.1 advanced
HDR rendering support with 16-bit per RGB component, enabling a wider spectrum of color creating natural lighting and
shading effects
One Dual Link DVI output, capable of driving ultra high resolution widescreen monitors
Multi-display productivity with independent display resolutions and refresh rates
Compatibility Compatibility Compatibility Compatibility
The ATI FireGL V7700 is supported on the following HP Personal Workstations: xw4600, xw6600 and xw8600.
Service and Support Service and Support Service and Support Service and Support
The ATI FireGL V7700 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed.
Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts and labor are
available on-site within the next business day. Telephone support is available for parts diagnosis and installation. Certain restrictions
and exclusions apply.
DA - 13089 North America — Version 4 — March 30, 2009
ATI FireGL V7700 512MB PCIe Graphics Card ATI FireGL V7700 512MB PCIe Graphics Card ATI FireGL V7700 512MB PCIe Graphics Card ATI FireGL V7700 512MB PCIe Graphics Card
KT979AA
Page 1
