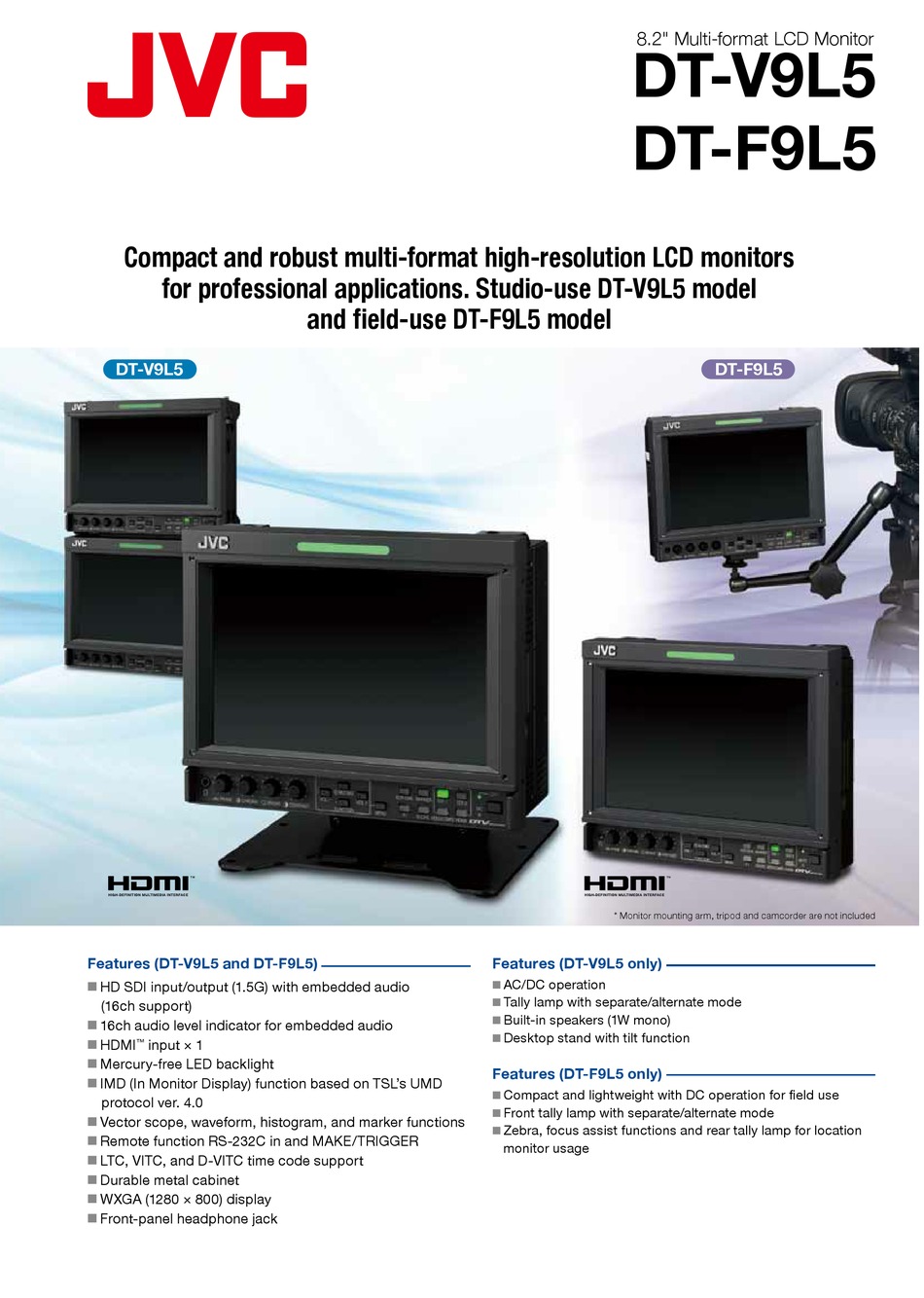

JVC DT-F9L5U Specifications

Compact and robust multi-format high-resolution LCD monitors
for professional applications. Studio-use DT-V9L5 model
DT-V9 L5
Features (DT-V9L5 and DT-F9L5)
HD SDI input/output (1.5G) with embedded audio
n
(16ch support)
16ch audio level indicator for embedded audio
n
HDMI input × 1
™
n
Mercury-free LED backlight
n
IMD (In Monitor Display) function based on TSL's UMD
n
protocol ver. 4.0
Vector scope, waveform, histogram, and marker functions
n
Remote function RS-232C in and MAKE/TRIGGER
n
LTC, VITC, and D-VITC time code support
n
Durable metal cabinet
n
WXGA (1280 × 800) display
n
Front-panel headphone jack
n
and field-use DT-F9L5 model
8.2" Multi-format LCD Monitor
DT-V9 L5
DT-F9 L5
* Monitor mounting arm, tripod and camcorder are not included
Features (DT-V9L5 only)
AC/DC operation
n
Tally lamp with separate/alternate mode
n
Built-in speakers (1W mono)
n
Desktop stand with tilt function
n
Features (DT-F9L5 only)
Compact and lightweight with DC operation for field use
n
Front tally lamp with separate/alternate mode
n
Zebra, focus assist functions and rear tally lamp for location
n
monitor usage
DT-F9 L5
