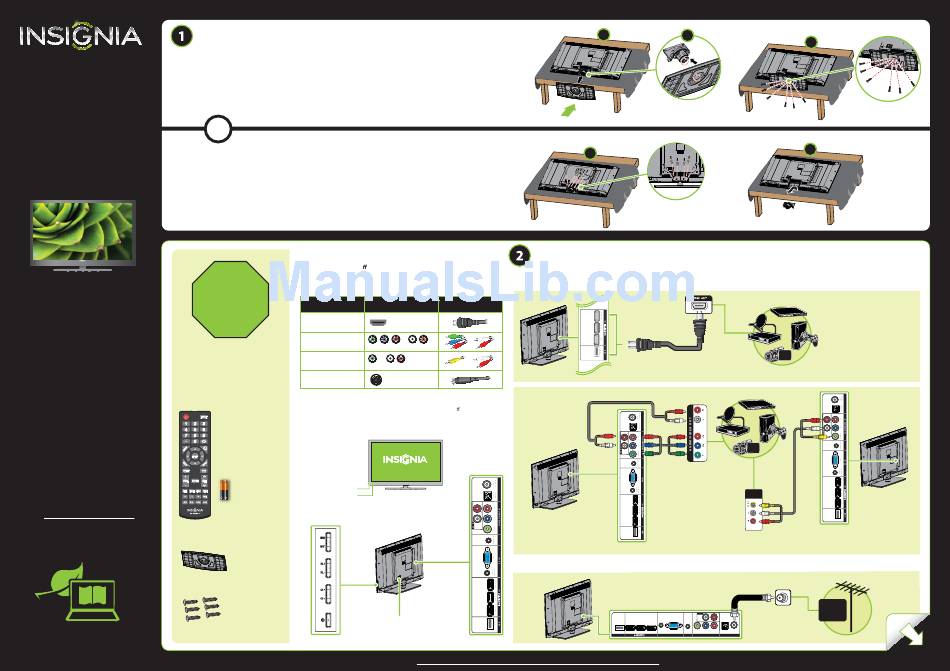

Insignia NS-46L400NA14 Quick Setup Manual

TM
QUICK
SETUP GUIDE
46" LCD TV
NS-46L400NA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
B Find the front of the stand. Attach the stand to the TV by hooking the slot in the stand
onto the tab on the stand column , then push the stand into place.
C Secure the stand with the six provide screws.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Lay the TV down on a soft surface, then remove the six screws that secure the stand column to your TV.
B Remove the stand column.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power cord in until all
other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI 1/DVI jack to connect a DVI device to your TV. Attach an
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack. See your online User Guide for more information about di erent types of
HDMI (ARC and DVI).
Features
Front view
Remote control
and two AAA batteries
Power indicator
Remote control sensor
Back view
TV stand
M4 screws
(16 mm length) (6)
Note: Images do not necessarily represent the exact design of your television.
Front
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game station, or camcorder?
Using an HDMI cable
JACK TYPE CABLE CONNECTOR
(BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable
(GOOD)
Note:The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
How do I connect my TV to an antenna or cable wall jack?
Power connector
Before using your new product, please read these instructions to prevent any damage.
A
B
A
M4 (12 mm)
Component
cable option
AUDIO/VIDEO
OUT
AV cable option
AV IN
L R
AUDIO
PC/DVI
VGA AUDIO OUT VIDEO/Y P P DIGITAL ANT
USB HDMI3 HDMI2/ARC HDMI1/DVI AUDIO IN B R
OUTPUT CABLE IN
USB IN PC IN COMPONENT IN
C
M4 (16 mm)
B
Multi-purpose jacks:You can plug
any device that uses HDMI into any
HDMI jack. However,certain devices
must be connected to the HDMI ARC
or DVI jacks. See the instructions that
came with your ARC or DVI
device for more information.
Note: Connect the yellow video
cable connector to the green Video/Y jack
on the back of your TV.
CABLE
OVER
