Removing the Motherboard

1. Close the LCD panel and turn over the machine. Lift the DC-in cable connector
perpendicularly to disconnect them from motherboard.

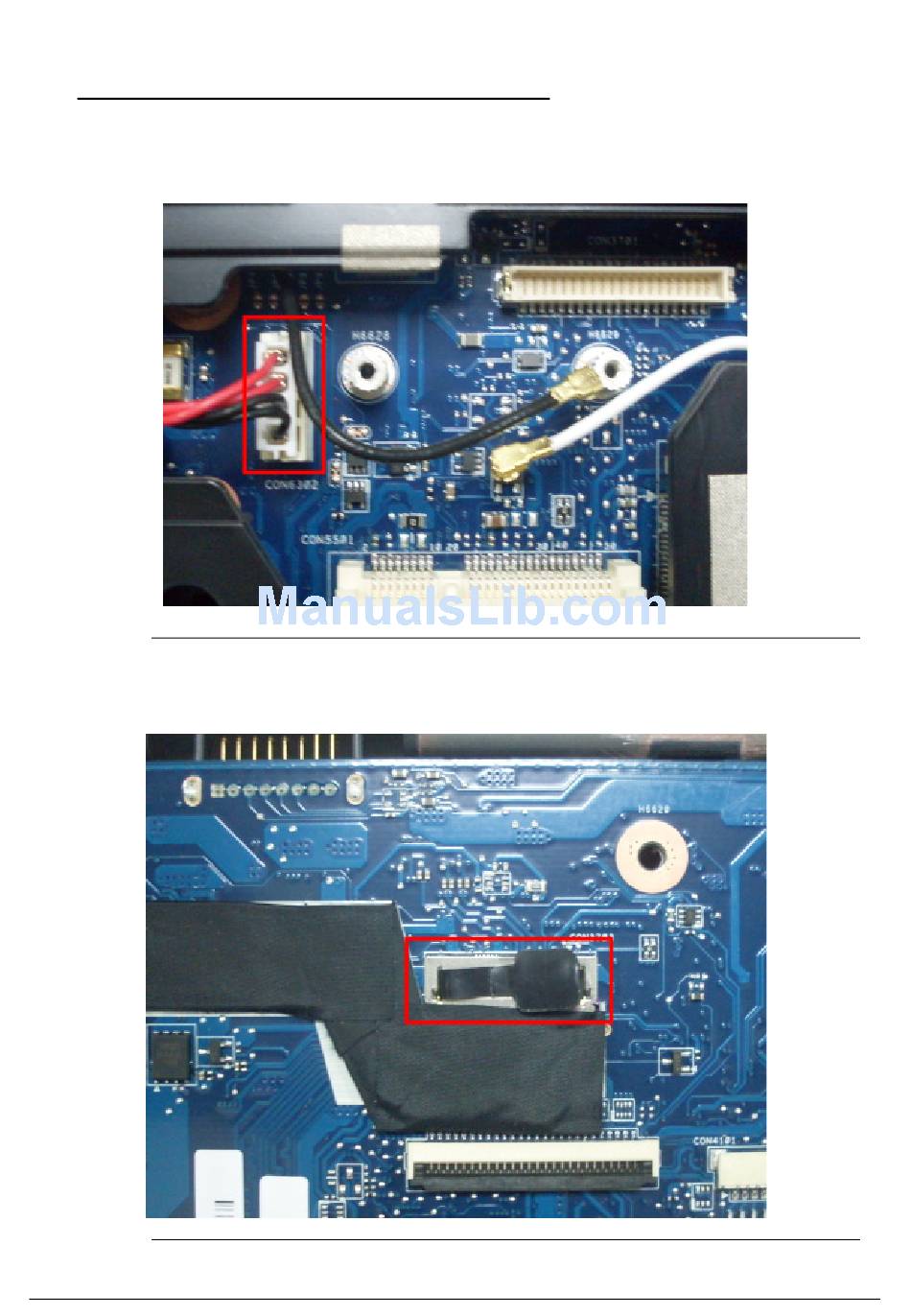

Figure 3-73. DC-in cable connector
2. Turn over the machine and open the LCD panel. Lift the LVDS cable connector
perpendicularly to disconnect it from motherboard.
Figure 3-74. LVDS Cable Connector
