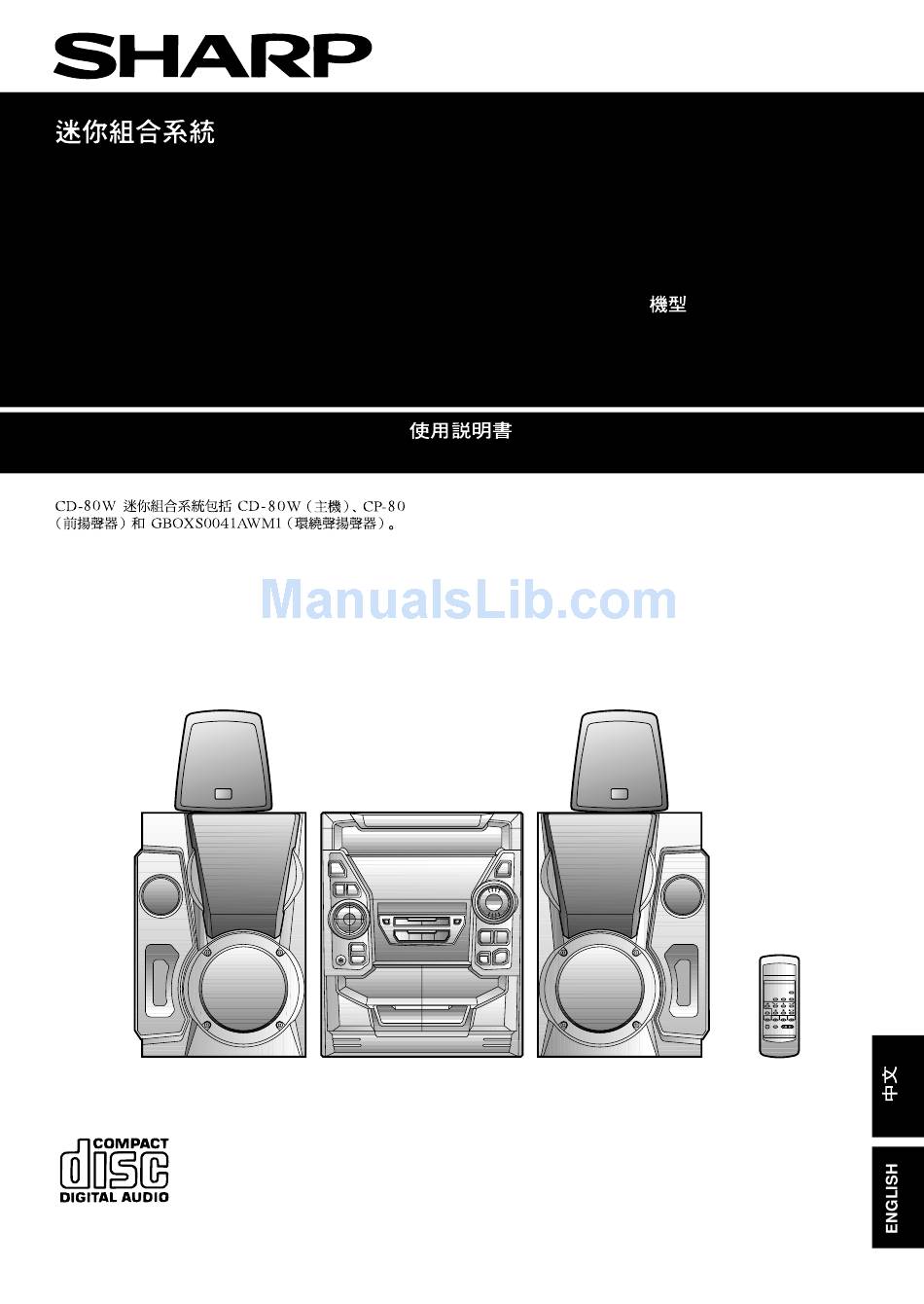

- Page 1 OPERATION MANUAL CD-80W mini component system consisting of C D -8 0 W (m a i n u n it ) , C P- 8 0 ( f ro n t s p e a k e r ) a n d...
-
Page 2: Table Of Contents
ENGLISH INTRODUCTION Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. CONTENTS Page Page ACCESSORIES ........1 CASSETTE OPERATION . -
Page 3: Special Notes
SPECIAL NOTES When the ON/STAND-BY button is set at STAND-BY po- Warning: sition, mains voltage is still present inside the unit. To prevent fire or shock hazard, do not expose this appliance When the ON/STAND-BY button is set at STAND-BY po- to dripping or splashing. -
Page 4: Precautions
AC power plug from the wall socket as the unit contains high voltages. Do not remove the outer cover, as this may result in elec- tric shock. Refer internal service to your local SHARP ser- vice facility. Use the unit on a firm, level surface free from vibration, and do not place anything on the top of the unit. -
Page 5: Names Of Controls And Indicators
NAMES OF CONTROLS AND INDICATORS Front panel (CD) Disc Tray Extra Bass Indicator FM Stereo Mode Indicator FM Stereo Indicator (CD) Repeat Indicator (CD) Pause Indicator (CD) Play Indicator (CD) Disc Number Indicators (TAPE 2) Record Indicator (CD/TUNER) Memory Indicator (TAPE) Reverse Mode Indicator (TAPE 2) Reserve Play Indicator 12 13 1415... - Page 6 (Continued) Rear panel AC Voltage Selector AC Power Input Socket FM 75 Ohms Aerial Terminal FM Aerial Earth Terminal AM Loop Aerial Input Socket Span Selector Switch Video/Auxiliary (Audio Signal) Input Sockets Front Speaker Terminals Surround Speaker Terminals Front speaker Tweeter Bass Reflex Duct Woofers...
-
Page 7: Preparation For Use
PREPARATION FOR USE Unplug the AC power lead from the AC socket before con- necting or disconnecting any component. Speaker connection Front speaker Front speaker (Right) (Left) Front speakers Connect each speaker wire to the FRONT SPEAKER terminals as shown. Use speakers with an impedance of 8 ohms or more, as lower impedance speakers can damage the unit. - Page 8 (Continued) Installation of the surround speakers: Example: When installed on the wall If possible, mount the surround speakers on the wall. lnstall them 60 - 90 cm (23" - 35") above the height of your ears when you Wall are seated, if possible. 60 - 90 cm (23"...
-
Page 9: Aerial Connection
(Continued) Aerial connection Supplied FM aerial Connect the FM aerial wire to the FM 75 OHMS terminal and position the FM aerial wire in the direction where the strongest signal can be received. Supplied AM loop aerial Connect the AM loop aerial wire to the AM LOOP socket. Position the AM loop aerial for optimum reception. - Page 10 (Continued) AM/FM interval (span) The International Telecommunication Union (ITU) has established that member countries should maintain either a 10 kHz or a 9 kHz interval between broadcasting frequencies of any AM station. The illustration shows the 9 kHz interval zones (regions 1 and 3), and the 10 kHz interval zone (region 2).
-
Page 11: Demo Mode
(Continued) Demo mode (Main unit operation) When the AC power lead is first connected, the unit will enter the demonstration mode. To cancel the demonstration mode: When the unit is in the stand-by mode (demonstration mode), press the X-BASS/DEMO button. The demonstration mode will be cancelled and the display will disappear. -
Page 12: Setting The Clock
SETTING THE CLOCK In this example, the clock is set for the 24-hour (0:00) system. (Main unit operation) Press the ON/STAND-BY button to enter the stand-by mode. MEMORY/SET Press the CLOCK button. STAND-BY Within 5 seconds, press the MEMORY/SET button. Press the TUNING/TIME ( ) button to select the time CLOCK... -
Page 13: Sound Control
SOUND CONTROL Volume (Main unit) (Remote control) Press the VOLUME button to increase the volume and the VOLUME button to decrease the volume..0 1 2 29 30 MAXIMUM Extra bass (X-BASS) (Remote control) (Main unit) When the power is first turned on, the unit will enter the extra bass mode which emphasises the bass frequencies, and "X- BASS"... -
Page 14: Compact Disc Operation
COMPACT DISC OPERATION CD playback 12 cm (5") Press the ON/STAND-BY button to turn the power on. Press the CD button. 8 cm (3") Press the OPEN/CLOSE button to open the disc tray. Place the CD(s) on the disc tray, label side up. CDs can be placed on any open position on the disc tray. -
Page 15: Random Play
(Continued) Disc number selection When stopped, press the DISC SKIP button. Press the ) button. The next disc playback will begin, after which each following disc will be played sequentially. Note: DISC SKIP When the DISC SKIP button is pressed during playback, play- back will begin automatically from the next disc. -
Page 16: Repeat Play
(Continued) APMS (Automatic Programmable Music Selector) Selected disc number You can playback the tracks on the CDs in the disc 1 - 3 positions in any order desired. By specifying the disc numbers from 1 to 3, and the track numbers from 1 to 99, you can choose up to 32 selections for playback in the order you like. -
Page 17: Radio Operation
RADIO OPERATION Tuning (Main unit operation) Press the ON/STAND-BY button to turn the power on. Press the TUNER (BAND) button. Press the TUNER (BAND) button to select the desired fre- quency band. (FM ST, FM or AM) 2,3,5,6 Press the TUNING/TIME ( ) button to tune into the desired station. - Page 18 (Continued) Preset tuning (Main unit operation) You can store up to 40 stations in memory (40 stations consisting of any combination of FM and AM stations you like) and recall PRESET( them at the push of a button. To enter stations into memory: Perform steps 1 - 6 in the "Tuning"...
-
Page 19: Cassette Operation
CASSETTE OPERATION TAPE 1 playback Press the ON/STAND-BY button to turn the power on. Open the cassette door by pushing the area marked "PUSH EJECT". Load a cassette into the TAPE 1 cassette compartment. Press the TAPE (1 2) button to select TAPE 1. Press the ) button to start playback. -
Page 20: Recording
RECORDING When recording important selections, be sure to Metal and CrO tapes should not be used for recording or make a preliminary test to ensure that the desired dubbing. material is being properly recorded. The volume and sound quality can be adjusted with no effect on the recorded signals (Variable Sound Monitor). -
Page 21: Recording
(Continued) Recording from the built-in radio Tune in to the desired station. (See pages 16-17.) Load a cassette into the TAPE 2 cassette compartment. Load the tape with side A (1) facing you. Wind past the leader of the tape, on which recording can not be performed. -
Page 22: How To Use The Built-In Timer
HOW TO USE THE BUILT-IN TIMER Before setting the timer, make sure that the clock Timer playback setting is correct. (Page 11) (Main unit operation) Press the ON/STAND-BY button to turn the power on. TIMER/ Press the CD, TUNER (BAND), TAPE (1 2) or VIDEO/AUX SLEEP Timer set indicator... -
Page 23: Using External Units
(Continued) Sleep operation (Main unit operation) TIMER/ MEMORY/ The radio, compact disc and cassette deck can all be turned off SLEEP automatically. Play back the desired sound source. Press the TIMER/SLEEP button repeatedly until "SLEEP" is displayed. To change the sleep time: Whilst the sleep time is displayed, press the TUNING/TIME ( ) button to adjust the time. -
Page 24: Resetting The Microcomputer
(Continued) Headphones Before plugging in or unplugging the headphones, make sure the volume level is reduced. Be sure your headphones have a 3.5 mm (1/8") diameter plug and are between 16 ohms and 50 ohms impedance. The rec- ommended impedance is 32 ohms. When headphones are connected, the speakers are discon- nected automatically. -
Page 25: Maintenance
SPECIFICATIONS As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. - Page 26 / MEMO...
- Page 27 / MEMO...
-
Page 28: Sharp Corporation
