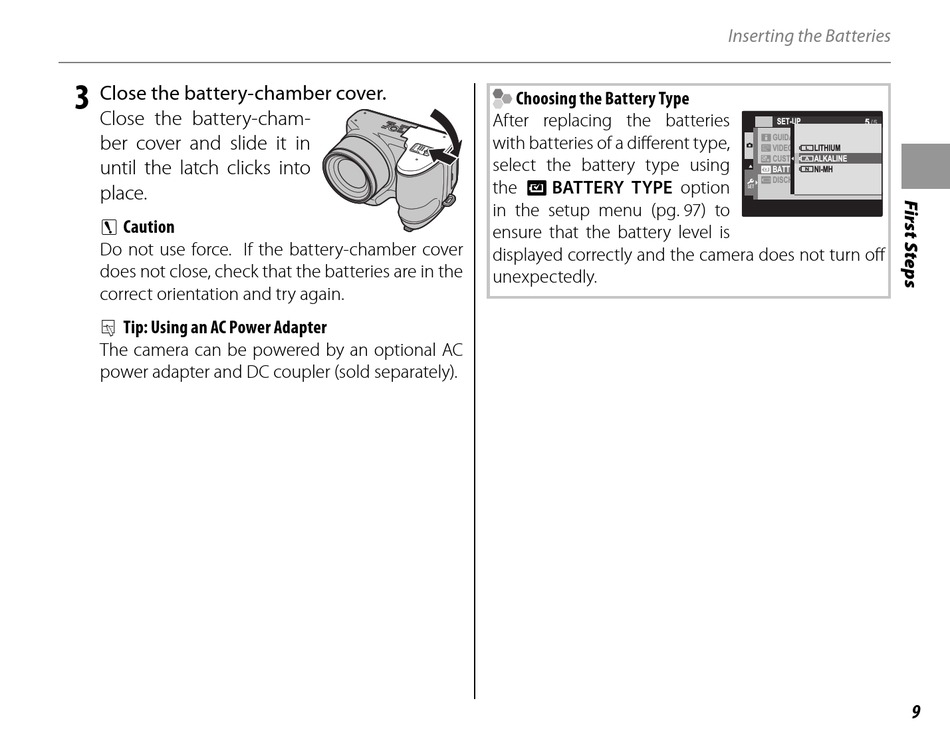

FujiFilm FinePix S2940 Owner's Manual page 25

3
Close the battery-chamber cover.
Close the battery-cham-
ber cover and slide it in
until the latch clicks into
place.
3 Caution
Do not use force. If the battery-chamber cover
does not close, check that the batteries are in the
correct orientation and try again.
2 Tip: Using an AC Power Adapter
The camera can be powered by an optional AC
power adapter and DC coupler (sold separately).
Choosing the Battery Type
After replacing the batteries
with batteries of a diff erent type,
select the battery type using
the T BATTERY TYPE option
in the setup menu (pg. 97) to
ensure that the battery level is
displayed correctly and the camera does not turn off
unexpectedly.
Inserting the Batteries
SET-UP 5
/5
GUIDANCE DISPLAY
LITHIUM
VIDEO SYSTEM
CUSTOM RESET ALKALINE
BATTERY TYPE NI-MH
DISCHARGE
9
