Frigidaire LTF6000ES0 Factory Parts Catalog

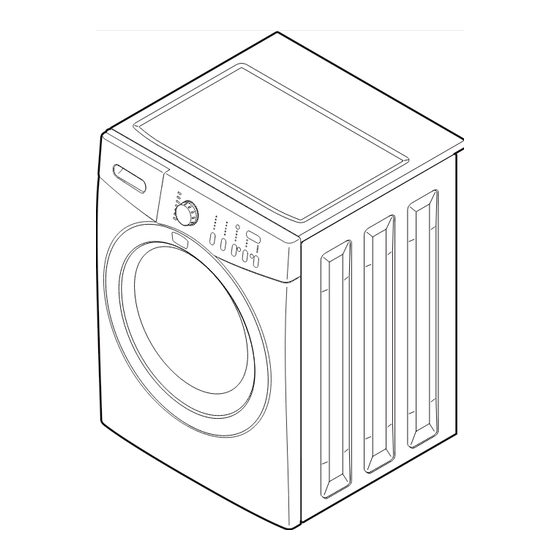

Front-load washing machine
Hide thumbs

Advertisement

Quick Links

P12L0054.eps P12C0358.eps P12V0083.eps P12T0085.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
LTF6000ES0
Series
Frigidaire
Market
North America
Color
white
Volts
115
Wiring Diagram
134604100
Owner's Guide
134610900
Energy Guide
134610500
Installation Instructions 134610800
Operating Instructions 134610700
134604100.eps
Publication No.
5995460598
06/02/09
(EN/SERVICE/KC)
361
Copyright
FRONT-LOAD
WASHING MACHINE
Model No.
LTF6000E
©
2006 Electrolux Home Products, Inc.
All rights reserved.

Advertisement

loading

  Summary of Contents for Frigidaire LTF6000ES0

  • Page 1 P12L0054.eps P12C0358.eps P12V0083.eps P12T0085.eps Electrolux Major Appliances North & Latin America P.O. BOX 212378 AUGUSTA, GA 30917 Product No. LTF6000ES0 Series Frigidaire Market North America Color white Volts Wiring Diagram 134604100 Owner's Guide 134610900 Energy Guide 134610500 Installation Instructions 134610800...
  • Page 2: Control Panel

    Publication No: 5995460598 LTF6000ES0 CONTROL PANEL 02/06...
  • Page 3 134556700 134555800 134370100 134553200 134557300 57 # 134503300 # Functional Parts * Non-Illustrated Parts LTF6000ES0 CONTROL PANEL DESCRIPTION Control Board, pc, with housing Bracket, top front Knob, program Light Pipe, program Interface Board, pc, auxiliary Pin, program knob Push Button, round, #2...
  • Page 4 Publication No: 5995460598 LTF6000ES0 CABINET/TOP 02/06...
  • Page 5 134591500 # Functional Parts * Non-Illustrated Parts LTF6000ES0 CABINET/TOP DESCRIPTION Hose, water inlet, 4 ft., hose & washer Screw, pan head, 8-18B x 0.31 Control Board, motor Wiring Harness, motor control Bracket, angle, motor control Screw, 8-18AB x 0.455 Door Lock/Switch Assy Wiring Harness, door switch Screw, pan head, 10-16AB x 0.500, locking...
  • Page 6 Publication No: 5995460598 LTF6000ES0 MOTOR/TUB 02/06...
  • Page 7 134527100 131202300 134458300 134369800 134261300 134610500 # Functional Parts * Non-Illustrated Parts LTF6000ES0 MOTOR/TUB DESCRIPTION Bolt, carriage, 1/4-20 x 2.60 Counterweight, front, one piece Spring, bellows clamp, retainer Bellows Kit, boot, no light hole Nut, hex, 1/4-20 UNC-2B, (2) Washer, Bellville, spring steel...
  • Page 8: Wiring Diagram

    Publication No: 5995460598 LTF6000ES0 WIRING DIAGRAM 02/06...
