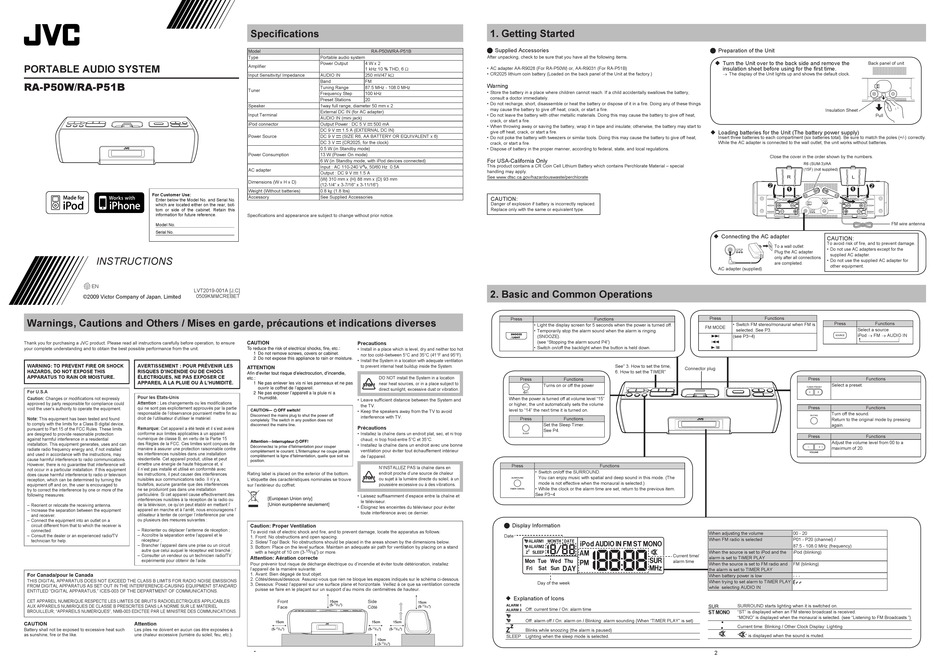

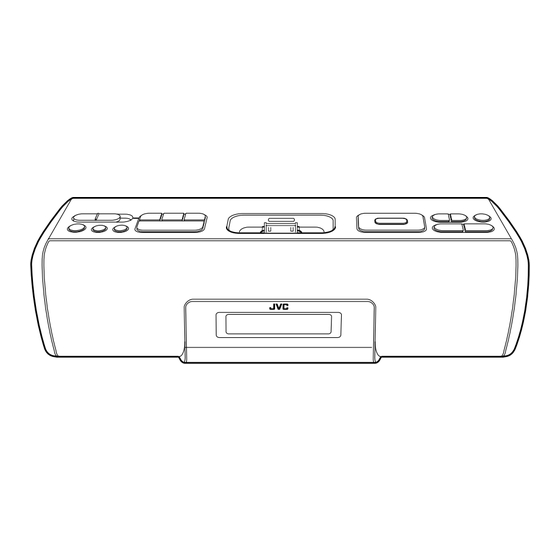

JVC RA-P50W Instructions

PORTABLE AUDIO SYSTEM
RA-P50W/RA-P51B
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
INSTRUCTIONS
EN
LVT2019-001A [J,C]
0509KMMCREBET
©2009 Victor Company of Japan, Limited
Warnings, Cautions and Others / Mises en garde, précautions et indications diverses
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure
your complete understanding and to obtain the best possible performance from the unit.
WARNING: TO PREVENT FIRE OR SHOCK AVERTISSEMENT : POUR PRÉVENIR LES
HAZARDS, DO NOT EXPOSE THIS RISQUES D'INCENDIE OU DE CHOCS
APPARATUS TO RAIN OR MOISTURE. ÉLECTRIQUES, NE PAS EXPOSER CE
APPAREIL À LA PLUIE OU À L'HUMIDITÉ.
For U.S.A
Pour les Etats-Unis
Caution: Changes or modifications not expressly
Attention : Les changements ou les modifications
approved by party responsible for compliance could
void the user's authority to operate the equipment. qui ne sont pas explicitement approuvés par la partie
responsable de l'observance pourraient mettre fin au
Note: This equipment has been tested and found droit de l'utilisateur d'utiliser le matériel.
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits Remarque: Cet appareil a été testé et il s'est avéré
conforme aux limites applicables à un appareil
are designed to provide reasonable protection
numérique de classe B, en vertu de la Partie 15
against harmful interference in a residential
des Règles de la FCC. Ces limites sont conçues de
installation. This equipment generates, uses and can
manière à assurer une protection raisonnable contre
radiate radio frequency energy and, if not installed
les interférences nuisibles dans une installation
and used in accordance with the instructions, may
résidentielle. Cet appareil produit, utilise et peut
cause harmful interference to radio communications.
émettre une énergie de haute fréquence et, s'
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment il n'est pas installé et utilisé en conformité avec
does cause harmful interference to radio or television les instructions, il peut causer des interférences
reception, which can be determined by turning the nuisibles aux communications radio. Il n'y a,
equipment off and on, the user is encouraged to toutefois, aucune garantie que des interférences
try to correct the interference by one or more of the ne se produiront pas dans une installation
following measures: particulière. Si cet appareil cause effectivement des
interférences nuisibles à la réception de la radio ou
de la télévision, ce qu'on peut établir en mettant l'
– Reorient or relocate the receiving antenna.
appareil en marche et à l'arrêt, nous encourageons l'
– Increase the separation between the equipment
utilisateur à tenter de corriger l'interférence par une
and receiver.
ou plusieurs des mesures suivantes :
– Connect the equipment into an outlet on a
circuit different from that to which the receiver is
– Réorienter ou déplacer l'antenne de réception ;
connected.
– Consult the dealer or an experienced radio/TV – Accroître la séparation entre l'appareil et le
technician for help. récepteur ;
– Brancher l'appareil dans une prise ou un circuit
autre que celui auquel le récepteur est branché ;
– Consulter un vendeur ou un technicien radio/TV
expérimenté pour obtenir de l'aide.
For Canada/pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS
FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD
ENTITLED "DIGITAL APPARATUS," ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES
AUX APPAREILS NUMIRIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL
BROUILLEUR; "APPAREILS NUMERIQUES", NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
CAUTION Attention
Battery shall not be exposed to excessive heat such Les piles ne doivent en aucun cas être exposées à
as sunshine, fire or the like. une chaleur excessive (lumière du soleil, feu, etc.).
Specifications
Model RA-P50W/RA-P51B
Type Portable audio system
Power Output 4 W x 2
Amplifier
1 kHz 10 % THD, 6 W
Input Sensitivity/ Impedance AUDIO IN 250 mV/47 kW
Band FM
Tuning Range 87.5 MHz - 108.0 MHz
Tuner
Frequency Step 100 kHz
Preset Stations 20
Speaker 1way full range, diameter 50 mm x 2
External DC IN (for AC adapter)
Input Terminal
AUDIO IN (mini jack)
iPod connector Output Power : DC 5 V 500 mA
DC 9 V 1.5 A (EXTERNAL DC IN)
Power Source DC 9 V (SIZE R6, AA BATTERY OR EQUIVALENT x 6)
DC 3 V (CR2025, for the clock)
0.5 W (in Standby mode)
Power Consumption 13 W (Power On mode)
6 W (in Standby mode, with iPod devices connected)
Input : AC 110-240 V , 50/60 Hz 0.5A
AC adapter
Output : DC 9 V 1.5 A
(W) 310 mm x (H) 88 mm x (D) 93 mm
Dimensions (W x H x D)
(12-1/4" x 3-7/16" x 3-11/16")
Weight (Without batteries) 0.8 kg (1.8 lbs)
Accessory See Supplied Accessories
Specifications and appearance are subject to change without prior notice.
Precautions
• Install in a place which is level, dry and neither too hot
nor too cold–between 5°C and 35°C (41°F and 95°F).
• Install the System in a location with adequate ventilation
to prevent internal heat buildup inside the System.
DO NOT install the System in a location
near heat sources, or in a place subject to
direct sunlight, excessive dust or vibration.
• Leave sufficient distance between the System and
the TV.
• Keep the speakers away from the TV to avoid
interference with TV.
Précautions
• Installez la chaîne dans un endroit plat, sec, et ni trop
chaud, ni trop froid-entre 5°C et 35°C.
• Installez la chaîne dans un endroit avec une bonne
ventilation pour éviter tout échauffement intérieur
de l'appareil.
N'INSTALLEZ PAS la chaîne dans en
Rating label is placed on the exterior of the bottom. endroit proche d'une source de chaleur
ou sujet à la lumière directe du soleil, à un
L'étiquette des caractéristiques nominales se trouve
sur l'extérieur du coffret. poussière excessive ou à des vibrations.
• Laissez suffisamment d'espace entre la chaîne et
le téléviseur.
• Éloignez les enceintes du téléviseur pour éviter
toute interférence avec ce dernier.
Caution: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand
with a height of 10 cm (3- 15 / 16 " ) or more.
Attention: Aération correcte
Pour prévenir tout risque de décharge électrique ou d'incendie et éviter toute détérioration, installez
l'appareil de la manière suivante:
1. Avant: Bien dégagé de tout objet.
2. Côtés/dessus/dessous: Assurez-vous que rien ne bloque les espaces indiqués sur le schéma ci-dessous.
3. Dessous: Posez l'appareil sur une surface plane et horizontale. Veillez à ce que sa ventilation correcte
puisse se faire en le plaçant sur un support d'au moins dix centimètres de hauteur.
Front Side
15cm
15cm
(5- 15 / ")
Face 16 Côté
(5- 15 /
16
15cm 15cm 15cm
(5- 15 / ") (5- 15 / ") (5- 15 / ")
16 16 16
10cm
(3- 15 / ")
16
1
1. Getting Started
n Supplied Accessories
After unpacking, check to be sure that you have all the following items.
• AC adapter AA-R9028 (For RA-P50W) or, AA-R9031 (For RA-P51B)
• CR2025 lithium coin battery (Loaded on the back panel of the Unit at the factory.)
Warning
• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery,
consult a doctor immediately.
• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire. Doing any of these things
may cause the battery to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat,
crack, or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to
give off heat, crack, or start a fire.
• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat,
crack, or start a fire.
• Dispose of battery in the proper manner, according to federal, state, and local regulations.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special
handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
2. Basic and Common Operations
Press Functions
• Light the display screen for 5 seconds when the power is turned off.
• Temporarily stop the alarm sound when the alarm is ringing
(SNOOZE).
(see "Stopping the alarm sound P4")
• Switch on/off the backlight when the button is held down.
Press Functions
Turns on or off the power
When the power is turned off at volume level "15"
or higher, the unit automatically sets the volume
level to "14" the next time it is turned on.
Press Functions
Set the Sleep Timer.
See P4.
Press Functions
• Switch on/off the SURROUND.
You can enjoy music with spatial and deep sound in this mode. (The
mode is not effective when the monaural is selected.)
• While the clock or the alarm time are set, return to the previous item.
See P3~4
n Display Information
Date
Day of the week
u Explanation of Icons
")
Off: current time / On: alarm time
Off: alarm off / On: alarm on / Blinking: alarm sounding (When "TIMER PLAY" is set)
Blinks while snoozing (the alarm is paused)
SLEEP Lighting when the sleep mode is selected.
n Preparation of the Unit
u Turn the Unit over to the back side and remove the
insulation sheet before using for the first time.
→ The display of the Unit lights up and shows the default clock.
u Loading batteries for the Unit (The battery power supply)
Insert three batteries to each compartment (six batteries total). Be sure to match the poles (+/-) correctly.
While the AC adapter is connected to the wall outlet, the unit works without batteries.
Close the cover in the order shown by the numbers.
1
u Connecting the AC adapter
To a wall outlet
Plug the AC adapter
only after all connections
are completed.
AC adapter (supplied)
Press Functions
• Switch FM stereo/monaural when FM is
FM MODE
selected. See P3.
¢
(see P3~4)
4
3/8
See" 3. How to set the time,
Connector plug
6. How to set the TIMER"
When adjusting the volume 00 - 20
When FM radio is selected P01 - P20 (channel) /
87.5 - 108.0 MHz (frequency)
When the source is set to iPod and the iPod (blinking)
Current time/
alarm is set to TIMER PLAY
alarm time
When the source is set to FM radio and FM (blinking)
the alarm is set to TIMER PLAY
When battery power is low - - -
When trying to set alarm to TIMER PLAY
while selecting AUDIO IN
SURROUND starts lighting when it is switched on.
"ST" is displayed when an FM stereo broadcast is received.
"MONO" is displayed when the monaural is selected. (see "Listening to FM Broadcasts ")
Current time: Blinking / Other Clock Display: Lighting
" " is displayed when the sound is muted.
2
Back panel of unit
Insulation Sheet
Pull
R6 (SUM-3)/AA
(15F) (not supplied)
1
FM wire antenna
CAUTION:
To avoid risk of fire, and to prevent damage.
• Do not use AC adapters except for the
supplied AC adapter.
• Do not use the supplied AC adapter for
other equipment.
Press Functions
Select a source
iPod → FM → AUDIO IN
Press Functions
Select a preset.
Press Functions
Turn off the sound.
Return to the original mode by pressing
again.
Press Functions
Adjust the volume level from 00 to a
maximum of 20.
