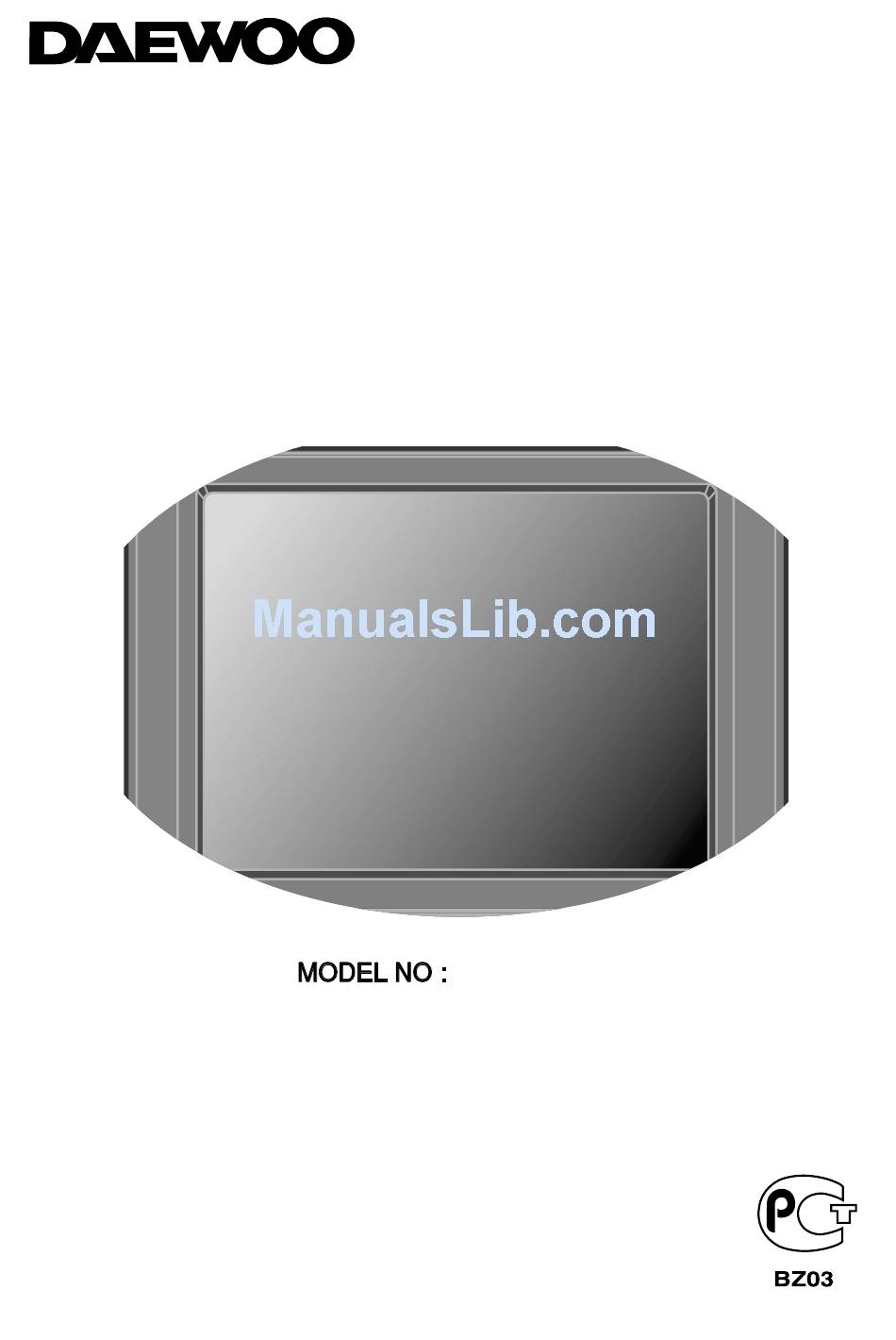

- Page 1 COLOUR TELEVISION Instruction Manual Instruction Manual KR29M2 KR25G5-MT KR29M2-MTO KR29U8-MT...
-
Page 2: Identity Of Features On Local And Remote Control
REMOTE MAIN POWER DOWN/UP DOWN/UP MENU INDICATOR SENSOR BUTTON BUTTONS BUTTONS BUTTON ON/OFF MENU - KR29M2, KR29M2-MTO ON/OFF VIDEO AUDIO MENU VIDEO 2 IN - KR25G5-MT - KR29U8-MT REMOTE CONTROLER TV mode TELETEXT MODE ON/OFF POWER PR (CURSOR) UP MENU... -
Page 3: Table Of Contents
CONTENTS * Identity of features on Local and Remote Control * Important safeguards * Installation After moving the set Inserting Batteries into the Remote Control Unit Aerial connection Mains connection First installation of TV * Switching the set on and off Switching On Switching Off Language selection... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Water / Moisture: Never install the set in the following places: in the bathroom, in a wet basement. Do not place any containers with liquid (e.g. flower vases) on the set. Heat: Never place the set near heat source(e.g. radiator) Ventilation: Do not cover the ventilation openings on the cabinet. -
Page 5: Installation
INSTALLATION AFTER MOVING THE SET If the used set is moved or placed in a different direction, the ON/OFF button must be switched off for at least 15minutes in order to take out a colour stain on the screen. INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT Press down the battery compartment grip and slide the cover. -
Page 6: Switching The Set On And Off
SWITCHING THE SET ON AND OFF SWITCHING ON Switching the set on with the ON/OFF button on front of the TV. The set will be turn on. If not, press either - PR UP or DOWN button on the front of set - or POWER button or the PR UP/DOWN button or one of the NUMBER button 0..9 on the remote controller. -
Page 7: Tuning The Tv Channels
TUNING THE TV CHANNELS AUTOMATIC TUNING SYSTEM Press the menu button to select the “INSTALL” Press the right button and then select a sound system. Press the right button to start AUTO SETUP. Please wait until the EDIT menu appears EDIT DELETE PROGRAMME POSITION DATA Press the menu button to select the EDIT menu and move the... -
Page 8: Fine Tuning
FINE TUNING If you can’t get a good picture or sound because of a poor broadcasting signal, it is possible to adjust the fine tuning. Move the cursor to FINE TUNE and press left/right buttons to activate fine tuning. It operates only when the left/right buttons is being pressed. The changes are memorized automatically. -
Page 9: Daily Use
DAILY USE SELECTIING A PROGRAMME The set has a total of 100 pragramme numbers, 00..99. The NUMBER buttons 0..9 are used for direct programme selection. In order to select two-digit programme, press the second numbered button within two seconds. PR UP/DOWN bottons are used for changing the stored channel step by step. -
Page 10: Picturecontrol
PICTURE CONTROL NORMAL PICTURE SELECTION When you press the NORMAL button repeatedly you can call up three picture settings; for Normal (hard picture), Normal (soft picture), Favourite(adjustable picture). PICTURE CONTROL Press the MENU button to call up the Menu. Press the RIGHT button to call up the Picture menu. You can select each function with the UP/DOWN buttons. -
Page 11: Picture-In-Picture(Option)
PICTURE-IN-PICTURE (OPTION) To Watch a external source as a sub-picture Press the PinP button to display a sub-picture. Press the sub button repeatedly to select the input for the sub picture. A TV picture will appear repeatedly..) (AV1 To Swap the main and sub-picture Press the SWAP button when a picture-in-picture is displayed. -
Page 12: Recall
RECALL The RECALL button is used to display the current status: program number, station name, clock and system. This display appear for about 5 seconds unless any button is pressed. CHANNEL LOCK You can prevent the watching of the desired programme channel. Press the CH.LOCK button on the remote control. -
Page 13: Connecting The External Equipment
CONNECTING THE EXTERNAL EQUIPMENT HEADPHONE JACK Insert the headphone plug (3.5mm ) into the headphone socket. The sound from the speaker will be cut off. FRONT(SIDE) / BACK AV JACK Connect the AV(AUDIO/VIDEO) socket with an appreciate cable to the corresponding socket of the external equipment. Press the AV button( ) on the remote control or on the front of the set. - Page 14 INDEX PAGE You can switch directly to the programme preview (with TOP text) or the overview page of the station you are currently viewing by pressing the INDEX( )button CALLING UP SUBPAGE DIRECTLY Pressing the SUBPAGE ( ) button, “Page No. / Subpage No.” appears at the botton of the screen.
- Page 15 SPECIFICATION KR29M2, KR29M2-MTO KR29U8-MT KR25G5-MT TV Standard PAL/SECAM-B/G, D/K, I, NTSC 3.58/4.43(AV) Main Voltage 110 - 250V~, 50/ 60Hz Power Consumption 130W 125W Sound Output 7W + 7W (80% MOD. at 1KHz) Power (BASS, TRABLE : MAX) Dimensions (WxHxD) 764 x 594 x 490mm...
-
Page 16: Troubleshooting
TROUBLESHOOTING Sometimes some performance problems can be easily solved by checking seemingly apparent but often overlooked possibilities. Before asking for service, to check these items could save your time and money. SYMPTOM CHECK No picture or sound. • Check the TV set is plugged in. •... - Page 17 DS2T07 D D A A E E W W O O O O E E L L E E C C T T R R O O N N I I C C S S C C O O . . , , L L T T D D . . ÃÀÐÀÍÒÈÉÍÛÉ...
- Page 18 Çàâîä-èçãîòîâèòåëü ïðîäóêöèè ìàðêè “DAEWOO” ãàðàíòèðóåò íàäåæíîå êà÷åñòâî ñâîåé ïðîäóêöèè ïðè óñëîâèè ñîáëþäåíèÿ òðåáîâàíèé, óêàçàííûõ â äàííîì îðèãèíàëüíîì òàëîíå “DAEWOO” è òåõíè÷åñêèõ èíñòðóêöèÿõ ïî ýêñïëóàòàöèè, ïðèëàãàåìûõ ê êàæäîìó èçäåëèþ. Ïðîèçâîäèòåëü ïðåäîñòàâëÿåò ãàðàíòèþ ñðîêîì - 1 ãîä íà âñå áûòîâûå òîâàðû ìàðêè “DAEWOO”, ïðèîáðåòåííûå...
- Page 19 DS2T07 Óïîëíîìî÷åííûé àãåíò Ãàðàíòèéíûé òàëîí ¹ Ô.È.Î. ïîêóïàòåëÿ Àäðåñ Òåëåôîí Ïîäïèñü ìàñòåðà Òåëåôîí DS2T07 Óïîëíîìî÷åííûé àãåíò Ãàðàíòèéíûé òàëîí ¹ Ô.È.Î. ïîêóïàòåëÿ Òåëåôîí Àäðåñ Ïîäïèñü ìàñòåðà Òåëåôîí DS2T07 Ãàðàíòèéíûé òàëîí ¹ Óïîëíîìî÷åííûé àãåíò Ô.È.Î. ïîêóïàòåëÿ Àäðåñ Òåëåôîí Òåëåôîí Ïîäïèñü ìàñòåðà...
- Page 20 "C" ÎÒÐÛÂÍÎÉ ÒÀËÎÍ "C" Íîìåð çàêàç-íàðÿäà Ìîäåëü Íîìåð çàêàç-íàðÿäà Ñåðèéíûé íîìåð Äàòà ïîñòóïëåíèÿ Äàòà ðåìîíòà Äàòà ðåìîíòà Ïðîÿâëåíèå äåôåêòà Ñîäåðæàíèå ðåìîíòà "B" ÎÒÐÛÂÍÎÉ ÒÀËÎÍ "B" Íîìåð çàêàç-íàðÿäà Ìîäåëü Íîìåð çàêàç-íàðÿäà Ñåðèéíûé íîìåð Äàòà ïîñòóïëåíèÿ Äàòà ðåìîíòà Äàòà ðåìîíòà Ñîäåðæàíèå ðåìîíòà Ïðîÿâëåíèå...
- Page 23 P/N : 48586905E204-R4...
