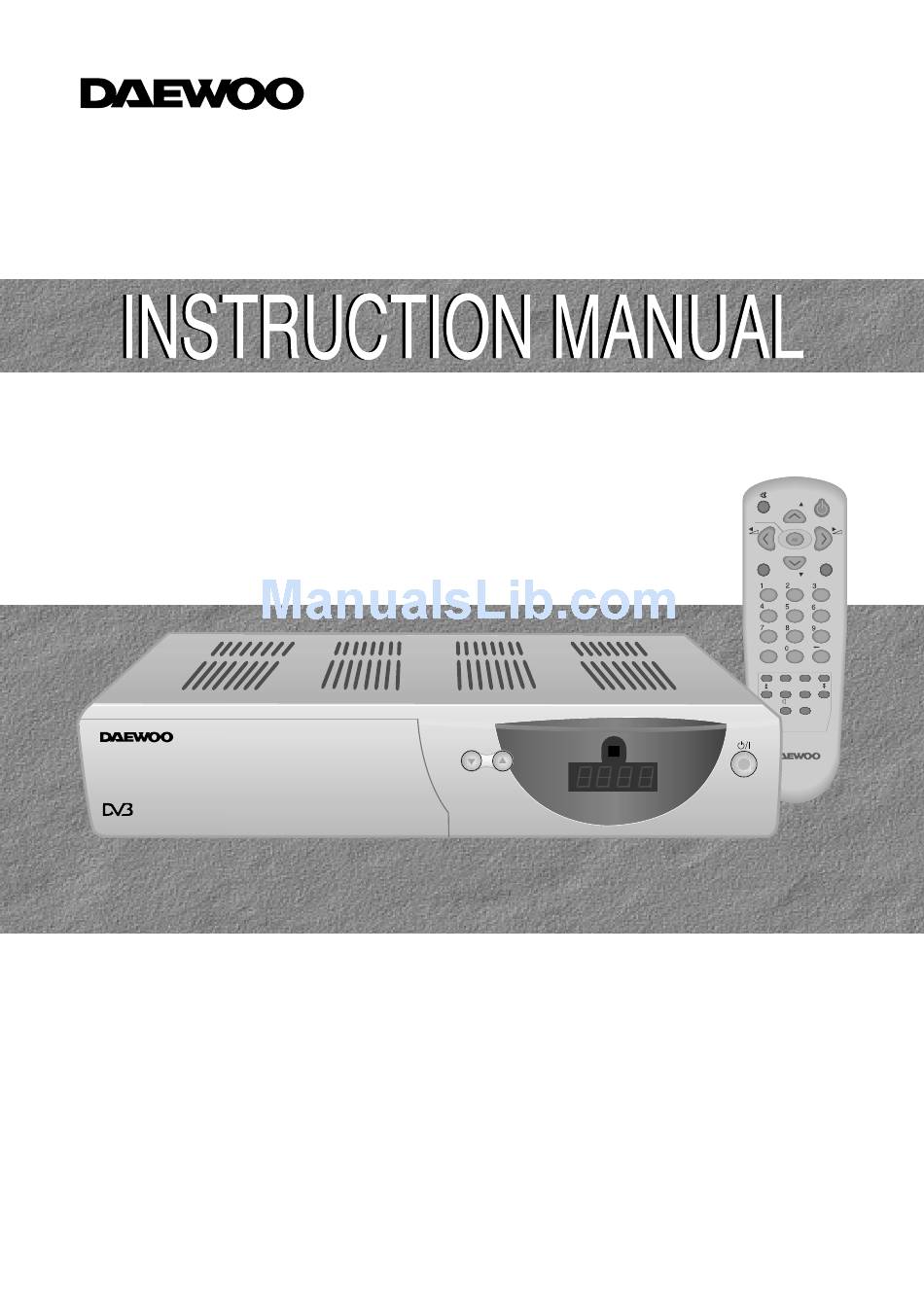

- Page 1 OK/LIST MENU EXIT TV/RADIO INFO PAUSE ALT-AUDIO TV/AV Digital V V ideo Broadcasting DSD-9230E...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION CHANNEL MANAGER Main Features of DSD-9230E Main Menu For your Safety Channel Manager Unpacking TV Channel Manager General Operation of DSD-9230E Favorite Channel Remote Control Move Channel Front Panel Lock Channel Rear Panel Rename Channel INSTALLATION of DSD-9230E Delete Channel Connecting to Antenna &... -
Page 3: General Information
GENERAL INFORAMTION DSD-9230E Digital Satellite Receiver is easy to use and a Free-to-Air receiver that allows you to watch digital programs broadcasted via satellite. This instruction manual will guide you through the initial installation of your receiver. It also describes how to take full advantage of a wide range of features that are easily accessible. -
Page 4: For Your Safety
GENERAL INFORAMTION For Your Safety . Allow clear space of more than 10cm from the top, back and both sides of DSD-9230E for sufficient ventilation. . Do not cover the DSD-9230E nor place it on a unit that emits heat. -
Page 5: Remote Control
GENERAL INFORAMTION Remote Control Function Switches between the operational mode and stand-by mode of the receiver (Green lamp lights up during the operation, Red lamp lights up in stand-by mode) TV/ RADIO Switches between TV and Radio mode. Mutes the sound. OK/LIST Switches back to previous channel. -
Page 6: Front Panel
GENERAL INFORAMTION Front Panel Digital V V ideo Broadcasting FUNCTION Switches between the operational mode and stand-by mode. When watching, changes the channel, or in the menu, moves to the previous and next item. Rear Panel 13/18V Max. 500mA CAUTION 0/12V AUDIO Max. -
Page 7: Installation Of Dsd-9230E
INSTALLATION OF DSD-9230E This section explains the installation of DSD-9230E. Refer to the manuals supplied with the equipment for the installation of outdoor equipment such as the dish antenna. When adding a new equipment, be sure to refer to the related parts of the manual for the installation. -
Page 8: Connecting To Tv Using Rca Support
INSTALLATION OF DSD-9230E Connecting to TV using RCA support VIDEO AUDIO SATELLITE DISH Connecting to TV using S-VHS support S-VHS AUDIO SATELLITE DISH... -
Page 9: Connecting To Tv Using Rf Support
INSTALLATION OF DSD-9230E Connecting to TV using RF support SATELLITE DISH CABLE TERRESTRIAL ANTENNA IN FROM ANT VIDEO OUT TO ANT VIDEO Connecting to another SVR SCART SATELLITE DISH TV/VCR Another... -
Page 10: Initial Installaton
Once you have correctly connected the DSD- 9230E, "INSTALL WIZARD" will guide you through the installation process. When you turn on the DSD-9230E, this picture will be displayed and this picture indicates that you have started the installation procedure. This "INSTALL WIZARD" menu is designed for quick and easy installation. -
Page 11: Time Setting
If you have only one antenna, select all of the switches as None. Select Satellite Select a satellite from the pre-programmed list. You have to select a proper satellite considering the installed antenna direction and switch selection. Note : DSD-9230E can store up to 64 satellites. -
Page 12: Select Lnb
INITIAL INSTALLATION Select LNB Select the type of your LNB. If you have Universal LNB, select YES. Otherwise select Enter the LNB frequency Enter the proper LNB frequency referring to your LNB using numeric key on the remote control. Or use the on screen keypad displayed by pressing OK key. -
Page 13: Setup Confirmation
NEXT and press OK key. Then it will take you to the Select Switch menu. Channel Searching DSD-9230E will automatically search the channels for all TV and RADIO programs available on the satellite you have selected. The programs are displayed in the Searched List box as they are found. -
Page 14: General Viewing Function
GENERAL VIEWING FUNCTION The following describes the basic functions of your DSD-9230E while watching satellite TV or listening to satellite radio. If you select a channel to which you do not have access, you will get a message on the screen. This message may vary, depending on type of program and Service Provider. -
Page 15: Frame Pause
GENERAL VIEWING FUNCTION Frame Pause Press PAUSE key on the remote control to pause the screen. To bring it back to the normal mode, press PAUSE key once again. Previous channel recall Press key on the remote control to move to the previous channel you were watching. -
Page 16: Channel Information
Volume & Audio Control 1) Volume Control To increase or decrease volume, use on the remote control. Note : DSD-9230E has 18 volume levels and this is controlled by the adjusted volume level of your TV. 2) Mute To mute the sound, press key on the remote control. -
Page 17: Channel Manager
CHANNEL MANAGER DSD-9230E provides powerful channel managing functions to allow various operations. Main Menu Press MENU key on the remote control to display Main Menu on the screen. To quit, press EXIT key. There are five items in the Main Menu ;... -
Page 18: Tv Channel Manager
CHANNEL MANAGER TV Channel Manager In this menu you can see the channel list searched by DSD-9230E on the left side. And on the right side, the current channel information is displayed. Press MENU key on the remote control, then command menu is displayed. -
Page 19: Move Channel
CHANNEL MANAGER Move Channel feature The Move allows you to change the channel number. Select MOVE from the TV Channel Manager. Select the channel you want to move by pressing OK key. Then using PR key, move the channel to the desired location. -
Page 20: Delete Channel
CHANNEL MANAGER Delete Channel The Delete feature allows you to delete a channel. Select Delete from the TV channel Manager. Select the channel you want to delete and press OK key. Then the selected channel will be highlighted with a ‘X’ mark. If you want to cancel the selection, press OK key again. -
Page 21: Fast Edit Mode
Fast Edit Mode Fast Edit Mode allows you to edit channel fast without switching to a selected channel. If you disable the Fast Edit Mode, DSD-9230E will show programs in the TV channel manager each time a channels is selected. -
Page 22: Epg (Electronic Program Guide)
EPG (Electronic Program Guide) DSD-9230E provides EPG function for you to get access to the TV Guide(or Radio Guide if you are listening to radio channels) which provides information on the current and next programs on different channels. To access EPG, press EPG key on your remote control or select Program Guide from the Main Menu, and EPG box will appear. -
Page 23: Timer
TIMER The “TIMER” feature allows you to program the timer in various ways. Note : DSD-9230E displays time information given by the satellite. So there may be slight difference between actual the standard time and DSD- 9230E’s time. Easy Timer To activate the Timer, set the “Enable”... -
Page 24: User Installation
USER INSTALLATION DSD-9230E features Install Wizard system which allows you to set up the receiver with minimum effort. This User Installation is for advanced users or installers to set up in detail or up- grade the DSD-9230E with advanced functions. -
Page 25: Antenna Direction Help
If your antenna is positioned incorrectly, you can not receive signal from the satellite, even if you have entered correct values in Antenna Setup menu. DSD-9230E provides Antenna Direction Help in order for you to have more exact information on the pointing direction of your antenna. -
Page 26: Channel Search
Channel Search Channel search menu allows you to search for channels in a new TP or Satellite. DSD-9230E allows you to search for channels in TP and Satellite in one menu screen. This is also our strong point for user’s convenience. - Page 27 USER INSTALLATION Channel Search Once you have entered new values, check whether you correctly entered the values and positioned the antenna by referring to signal level bars. If the level bar is highlighted to orange color, then you can run a TP search or satellite search.
- Page 28 - FTA only - New TP only - Sort by Scramble If you select Sort by Scramble, DSD-9230E sorts the scrambled channels automatically. DSD-9230E also allows you to search the channels by TP or by satellite. If you select New TP only, DSD-9230E searches the channel in the TP, which was skipped during the Install Wizard procedure.
-
Page 29: System Setting
RGB control, select RGB. Otherwise select CVBS. 7) TV Type : Select the type according to your TV type. 8) Volume Save : If you select ON, DSD-9230E will automatically save the last volume level for each channel. 9) Start On Channel : If you activate this... -
Page 30: Parental Lock
Note : To activate Parental Lock function, you must swicth DSD-9230E to stand-by mode at least once. Turn on DSD-9230E and select a channel which is locked. To view the channel enter your password. -
Page 31: Factory Default
: Default password is 0000 Warning : Do not forget your password. Factory Default If you want to re-set DSD-9230E back to the factory default condition, select Factory Default and press OK key. Warning messages will appear. To confirm, select OK and press OK key. -
Page 32: Receiver Information
RECEIVER INFORMATION In the Receiver Information, you can see the information of the product, its version and contact point of the supplier. FRONT PANEL DISPLAY : UPLOAD IN PROCESS : DOWNLOAD IN PROCESS : ERROR IN DATA TRANSMISSION : TV MODE : VCR MODE : SYSTEM WAITING : FLASH ROM ERROR... -
Page 33: Trouble Shooting
Main cable is not connected. panel does not light up. plugged into the power socket. No sound or picture, and the The DSD-9230E is in Press the stand-by button. front panel shows red light. stand-by mode. The satellite dish is not Adjust the dish. - Page 34 SCART leads and TV is not in SCART leads, switch the TV to the appropriate AV input. DSD-9230E for the first time. AV mode. Check the UHF channel fixed The system is connected in your system and tune the by RF leads.
- Page 35 P/N:48586200E101-R0...
