DW-444PA
00.4.26 11:8 AM

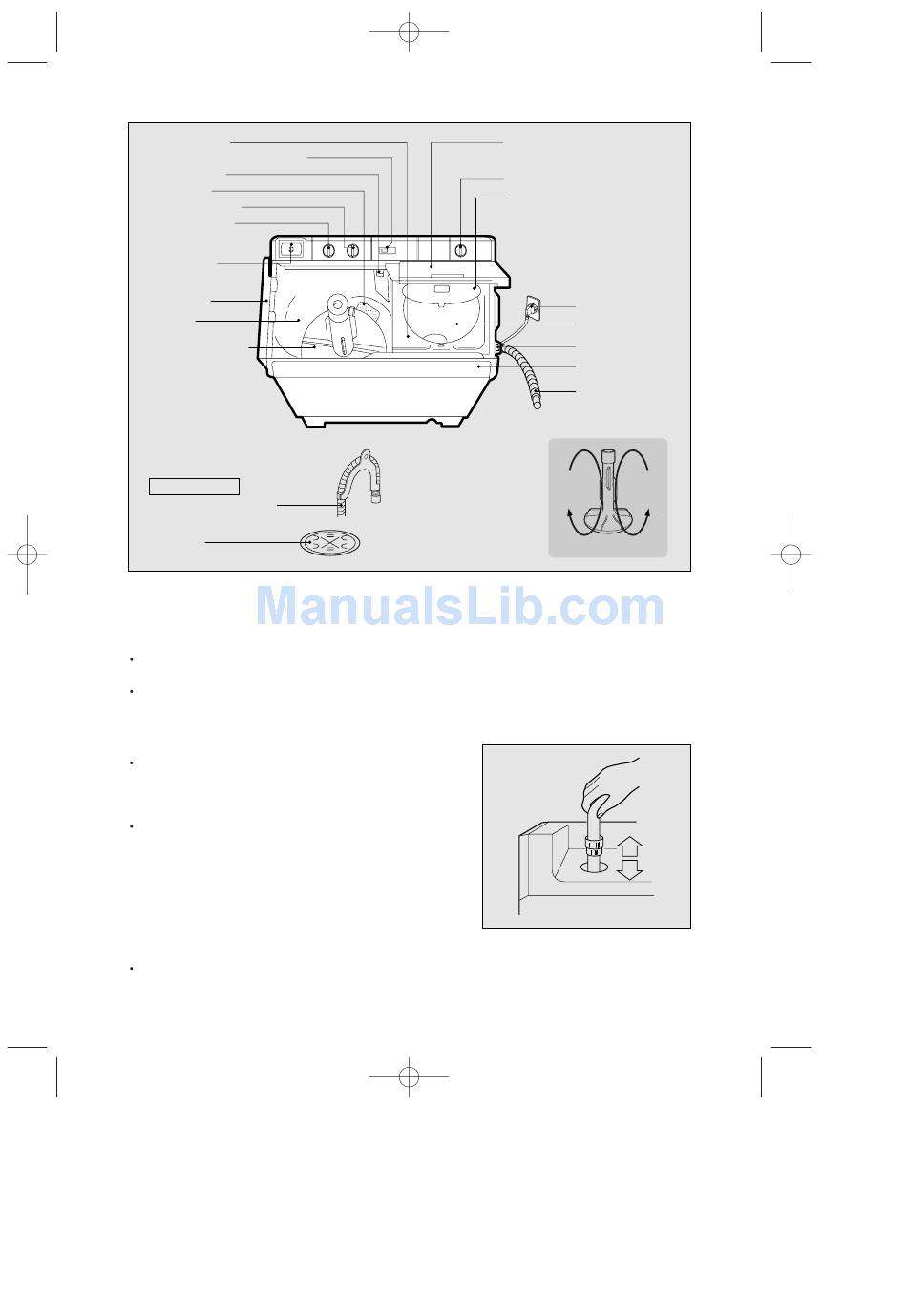

PARTS IDENTIFICATION
Rub-Wash Section
Drain Selector (Pump Control Switch)
Overflow Strainer
Drain Strainer
Wash Action Selector
Wash Timer Switch
(15 min. timer)
Water Inlet Port
Wash-Tub Lid
Wash Tub
Agitator (with Lint-filter)
Accessories
Drain Hose Assembly (PUMP)
Safety Cover
INSTALLATION
Electrical Connection
In case of 3-core cord: The power plug must be connected to an earthed 3-pin power point
within reach of the power cord.
In case of 2 conductor power cord: Connect the grounding wire to a water faucet etc. Make sure
that the power cord is unplugged during ground work.
Connection of Hoses
Attach the drain hose to the drain outlet at the left side of
the under base and secure with the clamp provided.
Hang the "U" Shaped outlet of the drain hose on the
edge of a sink.
Attach the water inlet hose to the water inlet located at
the left-hand side of the control panel. Press fit the other
end of the hose to either a hot or cold water tap as
required (Fig. 1).
Place of installation
Choose a place on a horizontal solid floor. If the machine is installed on an unstable floor, heavy
vibration will result during spin.
Spin-tub Lid
When this lid is opened, the spin dryer
immediatelystops operating
Spin Timer Switch (5 min. timer)
Inner Lid of Spin-dry Tub
Prevent your hands, etc.,
from touching the spin-dry
basket in rotation
Figure 1.
WATER INLET PORT
1
Power Cord
Spin Tub
Power Cord Rack
Panel Front
Drain Hose Assembly
(NON-PUMP)
Lint Filter
